Part Number

Manufacturer

Description

Unit Price

In Stock

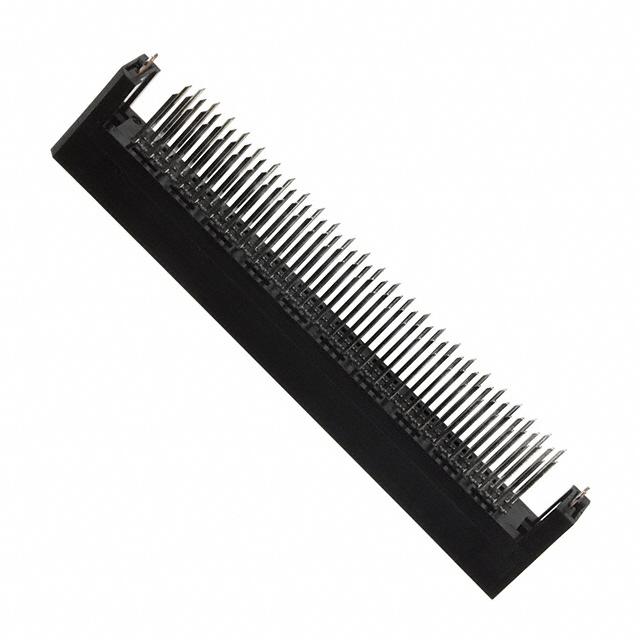

TX25-100P-12ST-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 100
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 18mm, 22mm, 24mm
Height Above Board : 0.598" (15.20mm)

350 in stock

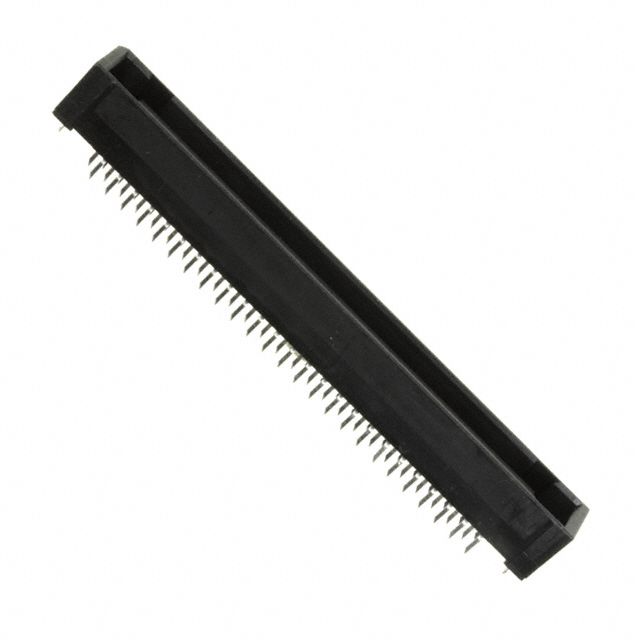

TX25-100P-6ST-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 100
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 12mm, 16mm, 18mm
Height Above Board : 0.362" (9.20mm)

2982 in stock

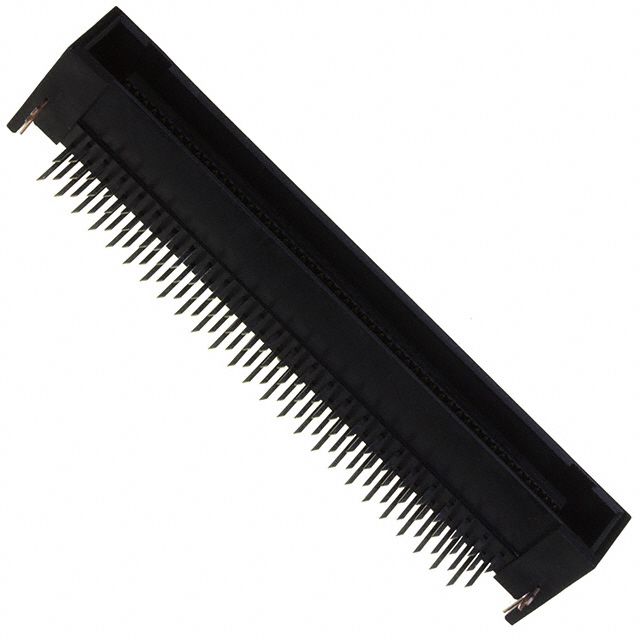

TX25-100P-LT-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 100
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole, Right Angle
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : -
Height Above Board : 0.354" (9.00mm)

11352 in stock

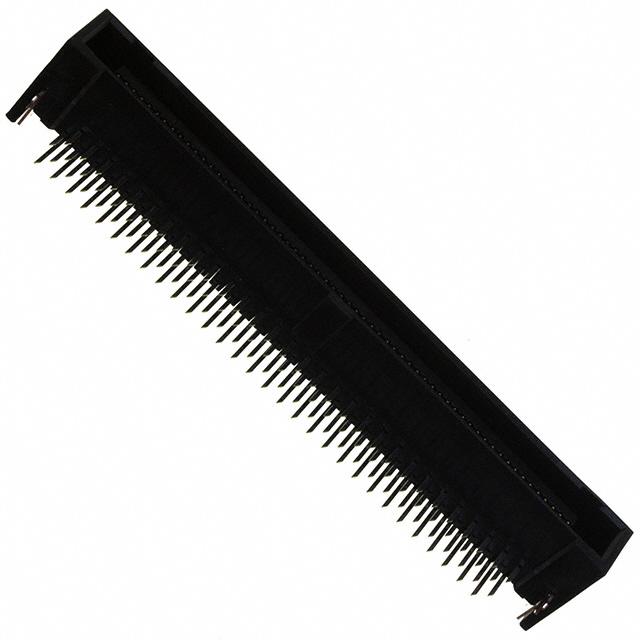

TX25-120P-LT-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 120
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole, Right Angle
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : -
Height Above Board : 0.354" (9.00mm)

289 in stock

TX25-30P-6ST-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 30
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 12mm, 16mm, 18mm
Height Above Board : 0.362" (9.20mm)

1794 in stock

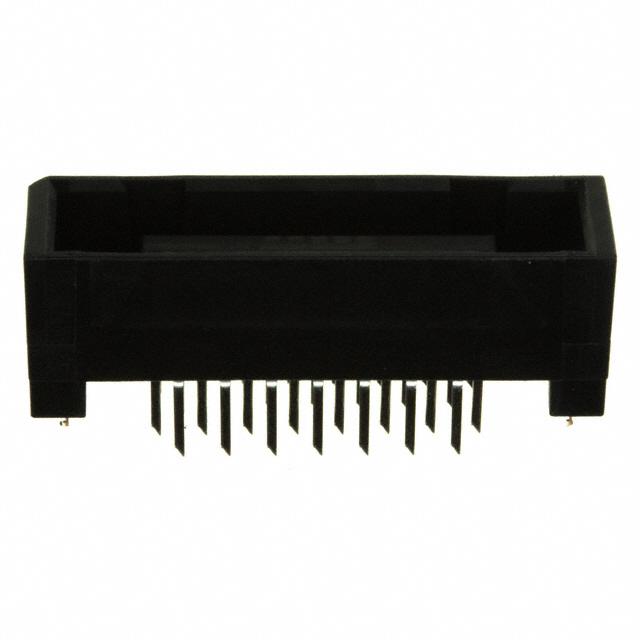

TX25-30P-8ST-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 30
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 14mm, 18mm, 20mm
Height Above Board : 0.441" (11.20mm)

2964 in stock

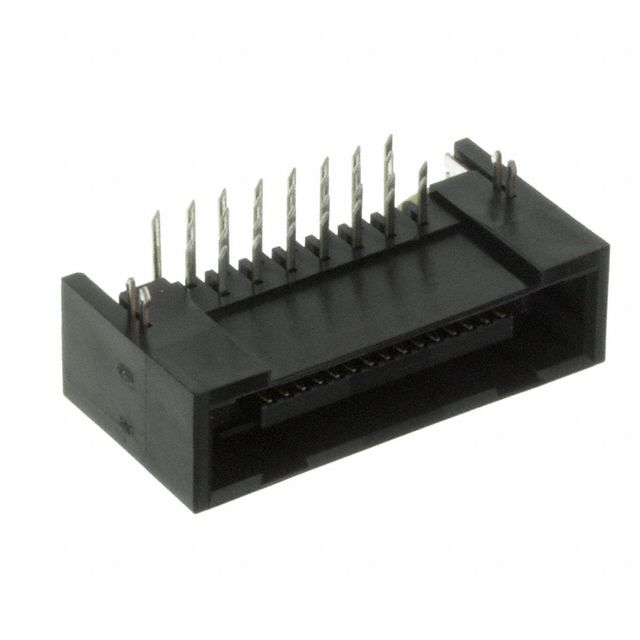

TX25-30P-LT-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 30
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole, Right Angle
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : -
Height Above Board : 0.354" (9.00mm)

6305 in stock

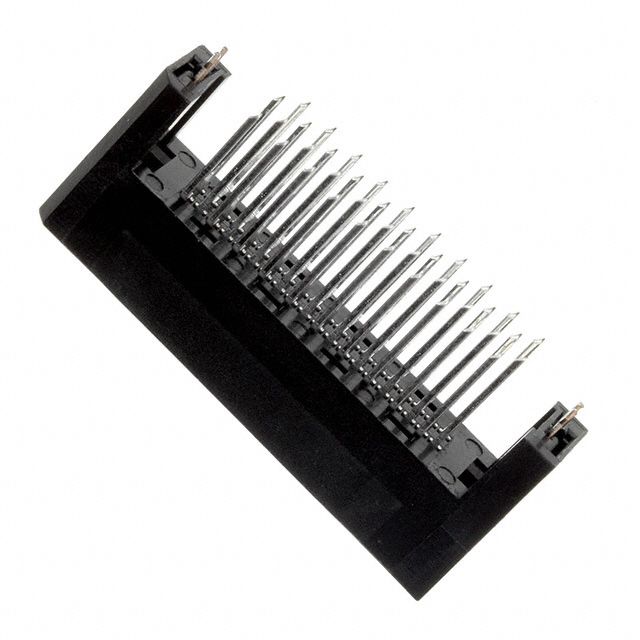

TX25-40P-12ST-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 40
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 18mm, 22mm, 24mm
Height Above Board : 0.598" (15.20mm)

648 in stock

TX25-40P-8ST-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 40
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 14mm, 18mm, 20mm
Height Above Board : 0.441" (11.20mm)

1671 in stock

TX25-40P-LT-H1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 40
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole, Right Angle
Features : Board Lock
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : -
Height Above Board : 0.354" (9.00mm)

1270 in stock

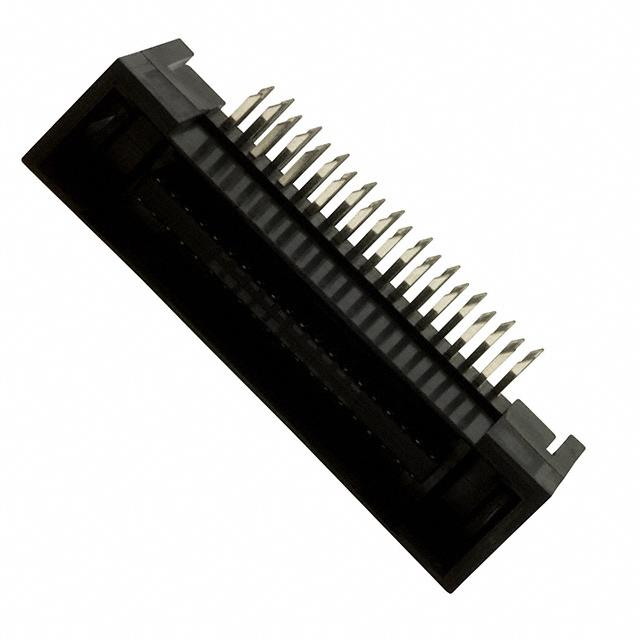

TX25-40P-LT-N1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 40
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole, Right Angle
Features : -
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : -
Height Above Board : 0.354" (9.00mm)

2475 in stock

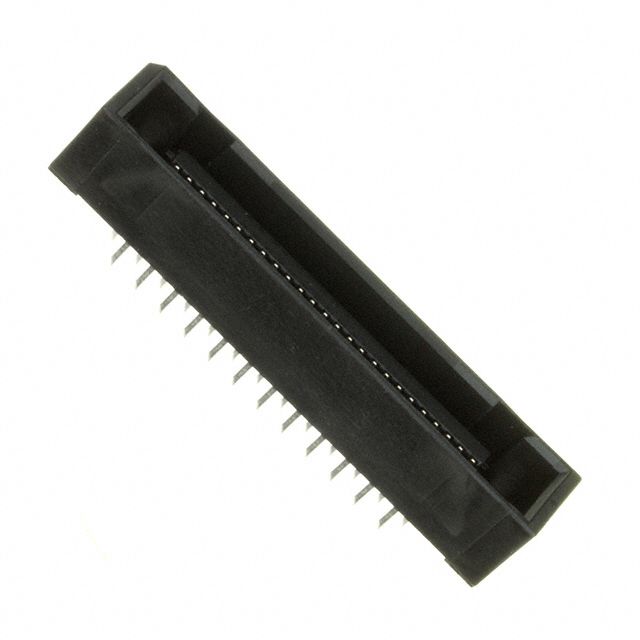

TX25-50P-6ST-N1E

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Tray
Series : TX25
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 50
Pitch : 0.050" (1.27mm)
Number of Rows : 2
Mounting Type : Through Hole
Features : -
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 12mm, 16mm, 18mm
Height Above Board : 0.362" (9.20mm)

580 in stock
