Part Number

Manufacturer

Description

Unit Price

In Stock

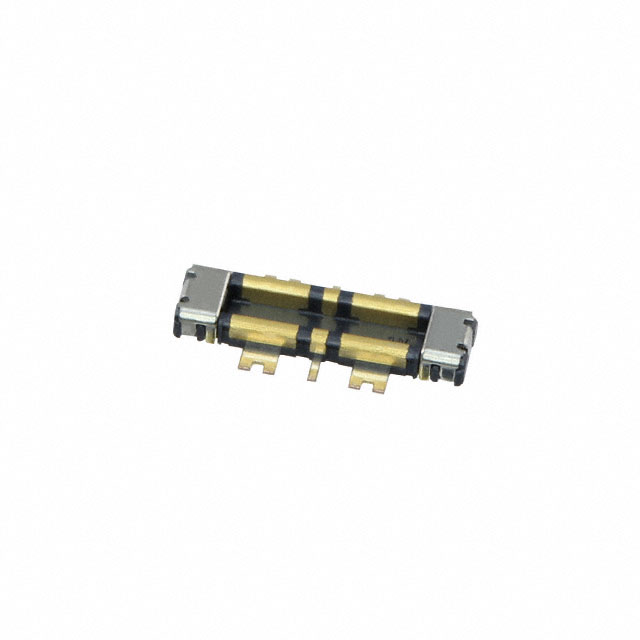

WP10-P004VA10-R15000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP10
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 8 (4 + 4 Power)
Pitch : 0.016" (0.40mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 0.7mm
Height Above Board : 0.023" (0.59mm)

14696 in stock

WP10-S002VA10-R15000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP10
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 6 (2 + 4 Power)
Pitch : 0.016" (0.40mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 0.7mm
Height Above Board : 0.028" (0.71mm)

44827 in stock

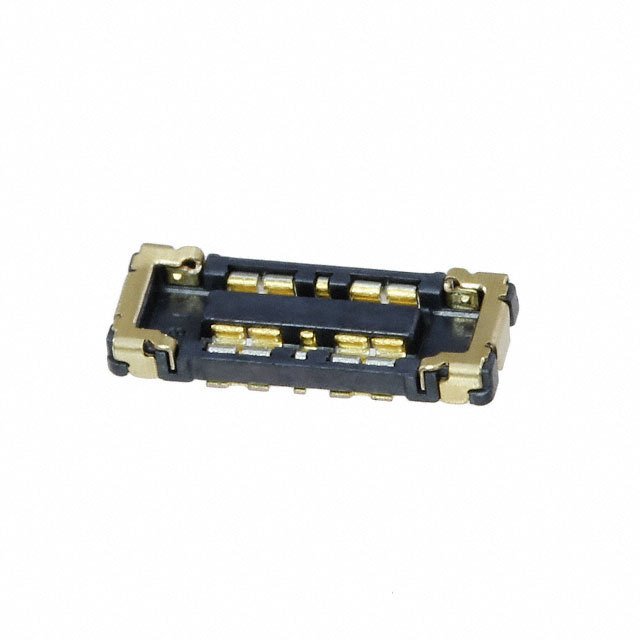

WP10-S004VA10-R15000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP10
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 8 (4 + 4 Power)
Pitch : 0.016" (0.40mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 0.7mm
Height Above Board : 0.028" (0.71mm)

5901 in stock

WP21-P010VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 10
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 1.97µin (0.050µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.019" (0.48mm)

8320 in stock

WP21-P020VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 20
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 1.97µin (0.050µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.019" (0.48mm)

8825 in stock

WP21-P030VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 30
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 1.97µin (0.050µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.019" (0.48mm)

9000 in stock

WP21-P040VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 40
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 1.97µin (0.050µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.019" (0.48mm)

3589 in stock

WP21-S010VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 10
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.023" (0.59mm)

16683 in stock

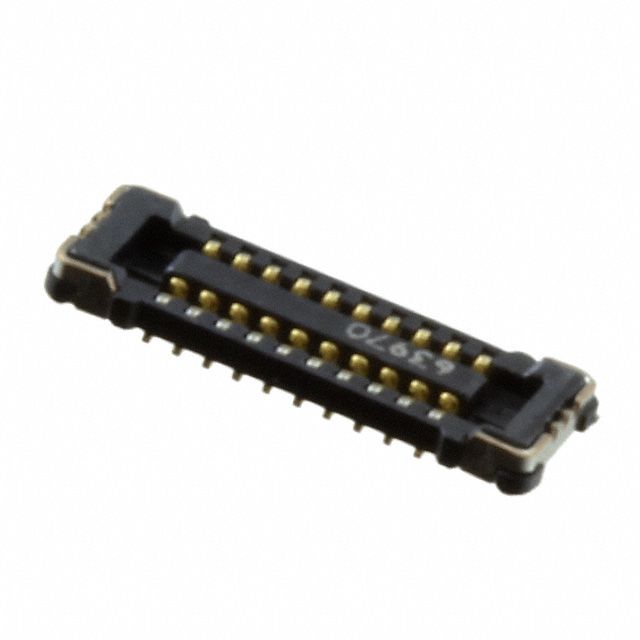

WP21-S020VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 20
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.023" (0.59mm)

1891 in stock

WP21-S030VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.023" (0.59mm)

8829 in stock

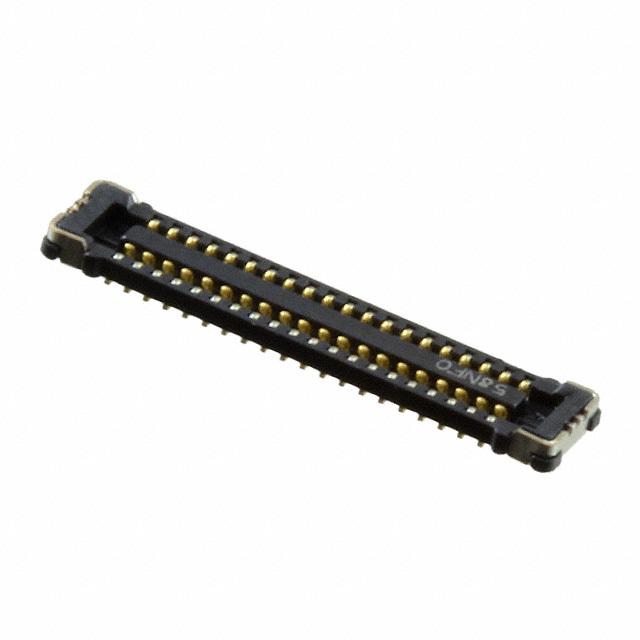

WP21-S040VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP21
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 40
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 0.6mm
Height Above Board : 0.023" (0.59mm)

3881 in stock

WP25D-P010VA1-R8000

JAE Electronics, Inc.

Manufacturer : JAE Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WP25D
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 10
Pitch : 0.014" (0.35mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Mated Stacking Heights : 0.7mm
Height Above Board : 0.022" (0.57mm)

22302 in stock
