Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

0038001436

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4A
Voltage Rating : 250VAC

1296 in stock

03JQ-BT

JST

Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V

27232 in stock

0432550003

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : MLX 43255
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 137.8µin (3.50µm)
Insulation Color : Natural
Insulation Height : 0.550" (13.97mm)
Contact Length - Post : 0.169" (4.30mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : -
Voltage Rating : 600V

100 in stock

0432550011

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : MLX 43255
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 137.8µin (3.50µm)
Insulation Color : Natural
Insulation Height : 0.550" (13.97mm)
Contact Length - Post : 0.169" (4.30mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : -
Voltage Rating : 600V

100 in stock

0432550019

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : MLX 43255
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 137.8µin (3.50µm)
Insulation Color : Natural
Insulation Height : 0.550" (13.97mm)
Contact Length - Post : 0.169" (4.30mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : -
Voltage Rating : 600V

2873 in stock

0432550035

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : MLX 43255
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 9
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 3
Row Spacing - Mating : 0.250" (6.35mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 137.8µin (3.50µm)
Insulation Color : Natural
Insulation Height : 0.550" (13.97mm)
Contact Length - Post : 0.169" (4.30mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : -
Voltage Rating : 600V

1559 in stock

0432550139

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : MLX 43255
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 2
Row Spacing - Mating : 0.250" (6.35mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 137.8µin (3.50µm)
Insulation Color : Natural
Insulation Height : 0.550" (13.97mm)
Contact Length - Post : 0.169" (4.30mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-2
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : -
Voltage Rating : 600V

100 in stock

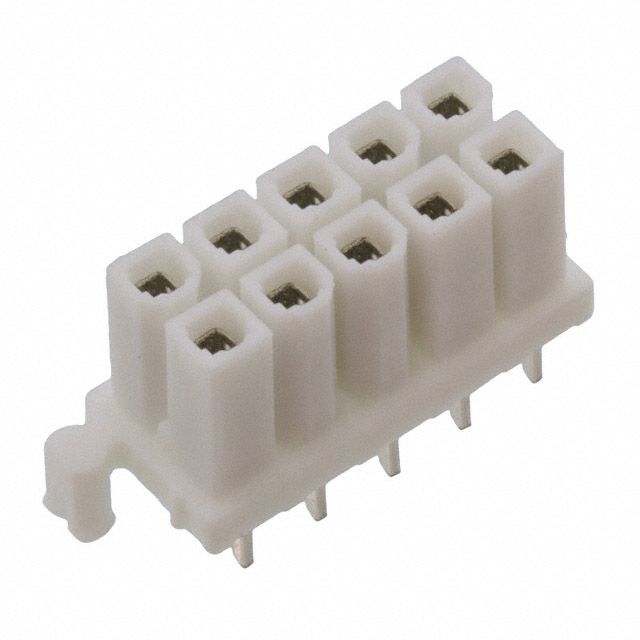

0444751021

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit HCS 44475
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 10.9mm, 15.24mm, 15.82mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600VAC

2860 in stock

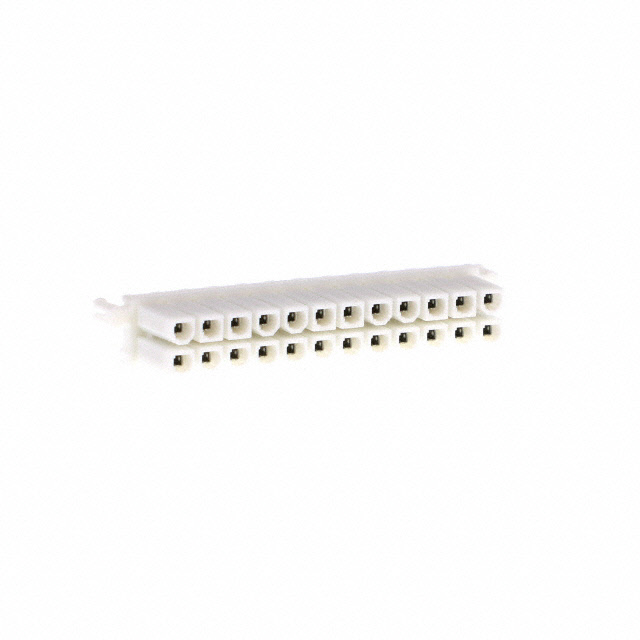

0444752421

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit HCS 44475
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 10.9mm, 15.24mm, 15.82mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600VAC

1429 in stock

0447640601

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : Micro-Fit 3.0 BMI 44764
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.118" (3.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 40.0µin (1.02µm)
Insulation Color : Black
Insulation Height : 0.402" (10.20mm)
Contact Length - Post : 0.155" (3.94mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 5A
Voltage Rating : 600VAC

1843 in stock

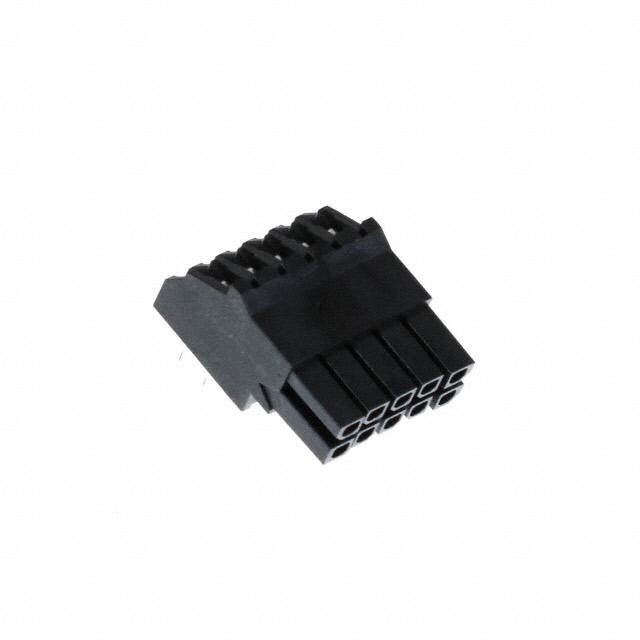

0447641001

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : Micro-Fit 3.0 BMI 44764
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.118" (3.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 40.0µin (1.02µm)
Insulation Color : Black
Insulation Height : 0.402" (10.20mm)
Contact Length - Post : 0.155" (3.94mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 5A
Voltage Rating : 600VAC

1133 in stock

0447641802

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : Micro-Fit 3.0 BMI 44764
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 18
Number of Positions Loaded : All
Pitch - Mating : 0.118" (3.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.118" (3.00mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.402" (10.20mm)
Contact Length - Post : 0.155" (3.94mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 5A
Voltage Rating : 600VAC

2789 in stock
