0448120021
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
0
100 in stock

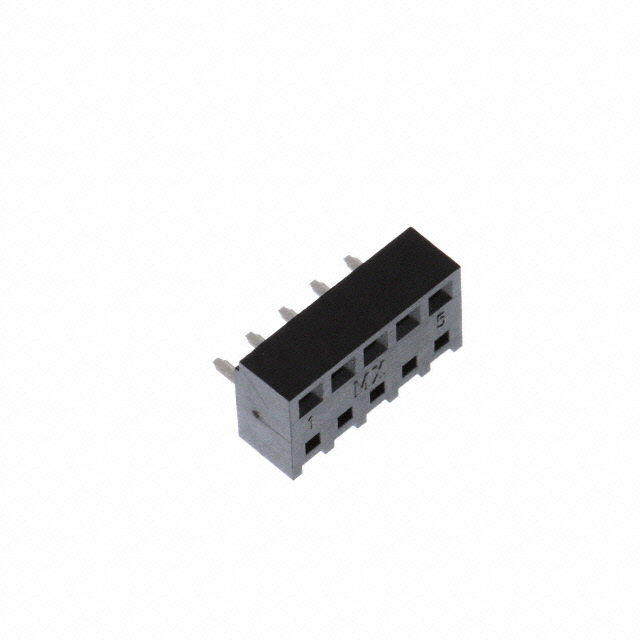

0448120023
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
0
1704 in stock

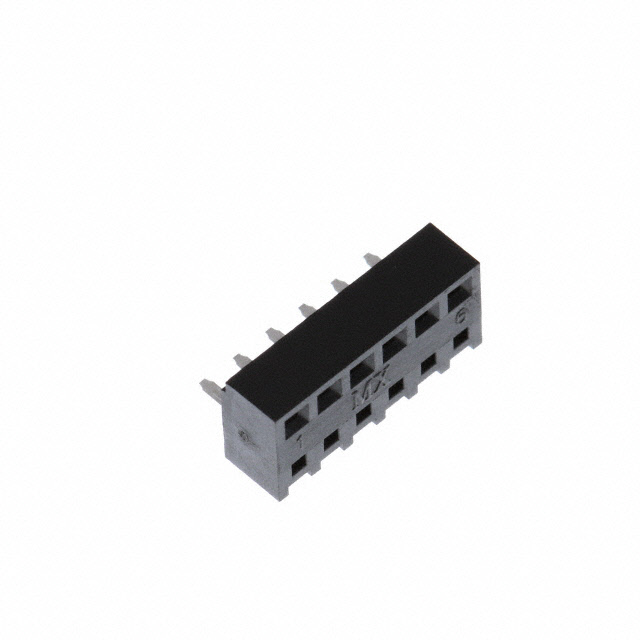

0448120024
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
0
2018 in stock

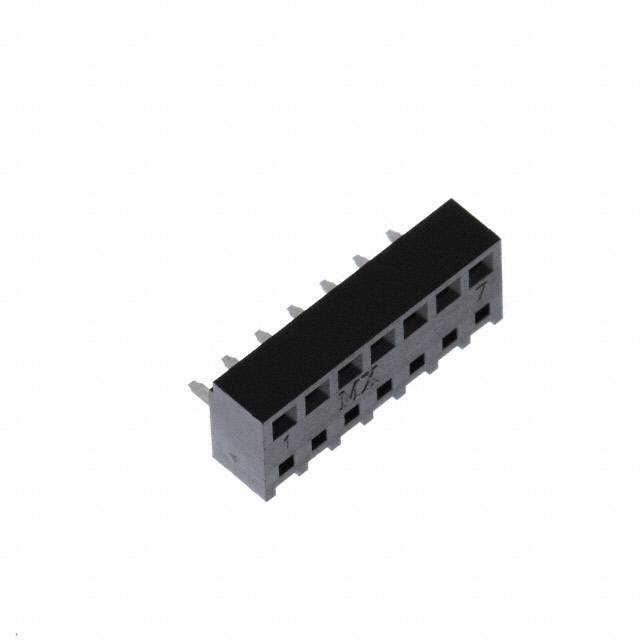

0448120025
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
Packaging : Tray
Series : KK 44812
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.177" (4.50mm)
Contact Length - Post : 0.136" (3.46mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 250VAC, 176VDC
0
1723 in stock
0460101022
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit Plus HCS 46010
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 10.9mm, 15.24mm, 15.82mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600VAC
Packaging : Tray
Series : Mini-Fit Plus HCS 46010
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 10.9mm, 15.24mm, 15.82mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600VAC
0
100 in stock
04JQ-BT
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V
0
100 in stock

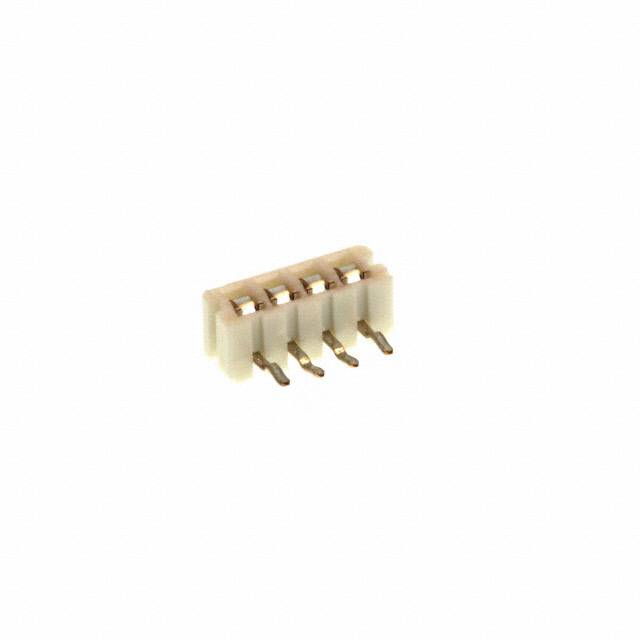

0524180410
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : 52418
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.124" (3.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1.5A
Voltage Rating : 125VAC
Packaging : Tray
Series : 52418
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.124" (3.14mm)
Contact Length - Post : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1.5A
Voltage Rating : 125VAC
0
6093 in stock
05JQ-BT
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V
0
1652 in stock
06JQ-BT
JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V
Packaging : Bulk
Series : JQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Press-Fit, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.374" (9.50mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : 11.8mm
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 250V
0
14563 in stock
0719790204
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 71979
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.266" (6.76mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide, Pick and Place
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : C-Grid 71979
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.266" (6.76mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide, Pick and Place
Current Rating : -
Voltage Rating : -
0
2544 in stock
0781201207
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Slim-Grid 78120
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 1.97µin (0.050µm)
Insulation Color : Black
Insulation Height : 0.178" (4.51mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 4.3A
Voltage Rating : 125VAC
Packaging : Tube
Series : Slim-Grid 78120
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 1.97µin (0.050µm)
Insulation Color : Black
Insulation Height : 0.178" (4.51mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 4.3A
Voltage Rating : 125VAC
0
2679 in stock
0781202407
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Slim-Grid 78120
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 1.97µin (0.050µm)
Insulation Color : Black
Insulation Height : 0.178" (4.51mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 4.3A
Voltage Rating : 125VAC
Packaging : Tube
Series : Slim-Grid 78120
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 1.97µin (0.050µm)
Insulation Color : Black
Insulation Height : 0.178" (4.51mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 4.3A
Voltage Rating : 125VAC
0
1501 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
