- Connectors, Interconnects
- Rectangular Connectors - Headers, Receptacles, Female Sockets
Part Number
Manufacturer
Description
Unit Price
In Stock
0791081009
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Milli-Grid 79108
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : 0.050" (1.27mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Milli-Grid 79108
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : 0.050" (1.27mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
100 in stock

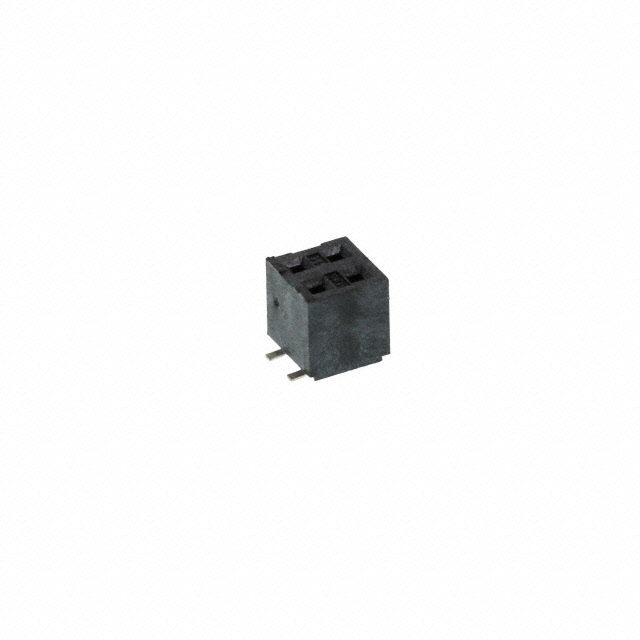

0791091001
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
11373 in stock

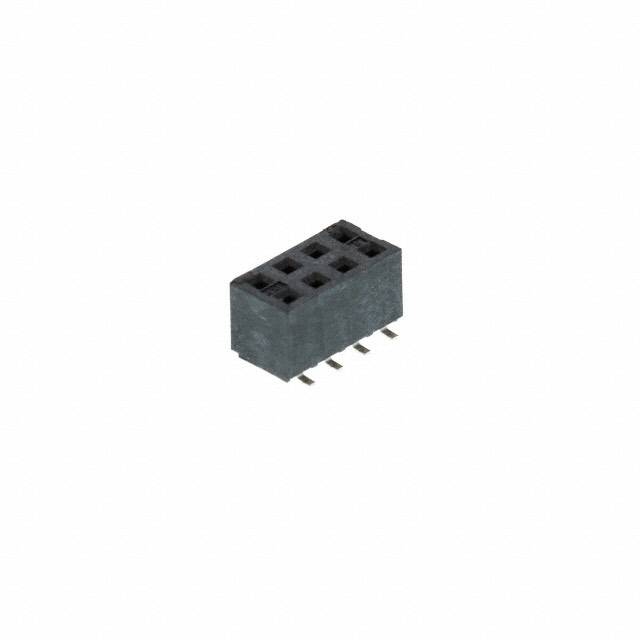

0791091003
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
4253 in stock

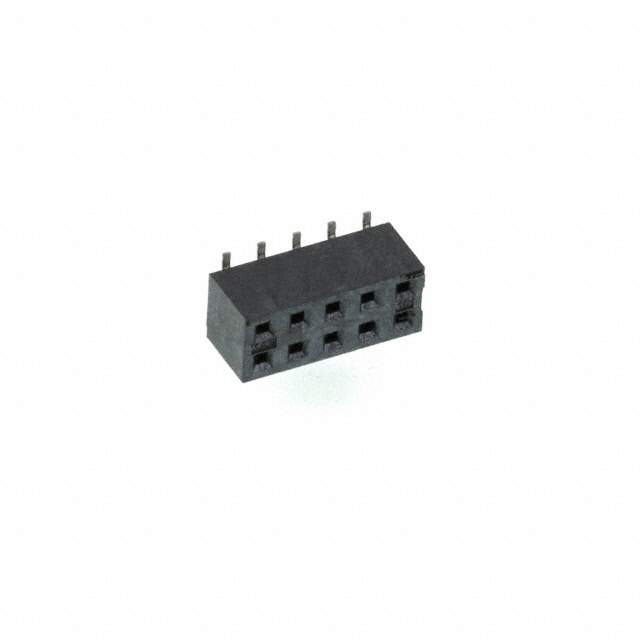

0791091004
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
2596 in stock

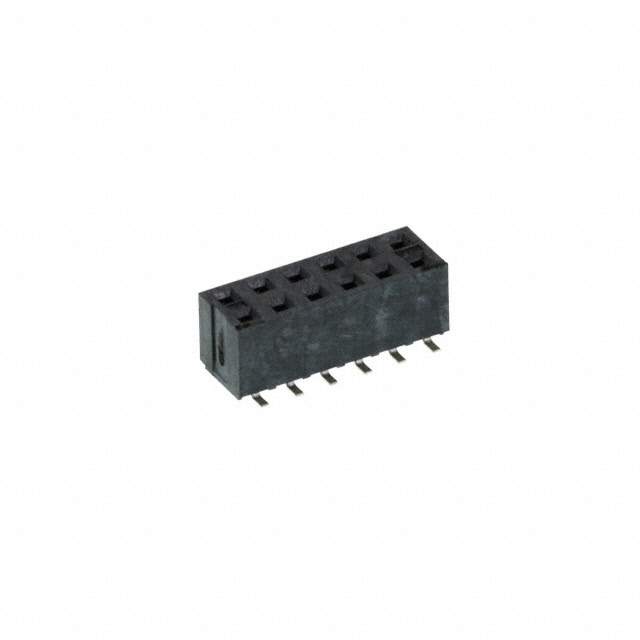

0791091005
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
8075 in stock

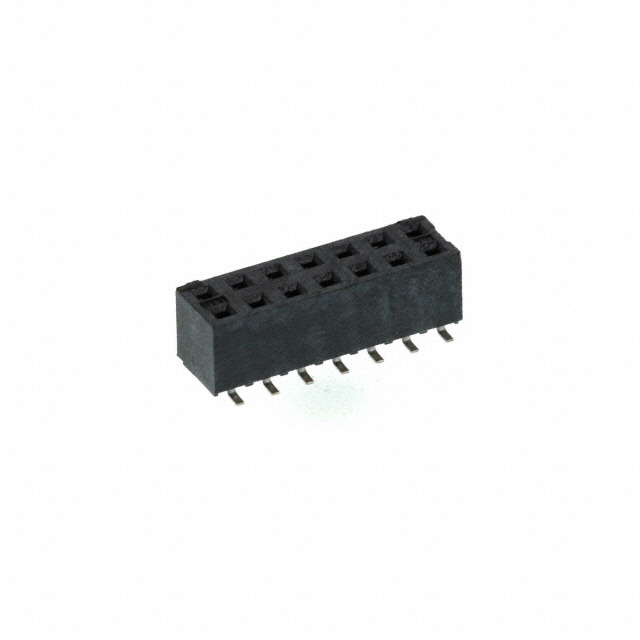

0791091006
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
1429 in stock

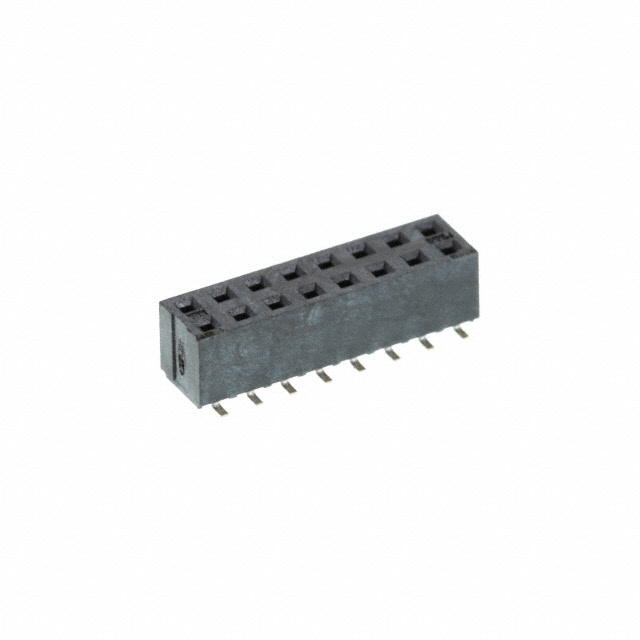

0791091007
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
3313 in stock

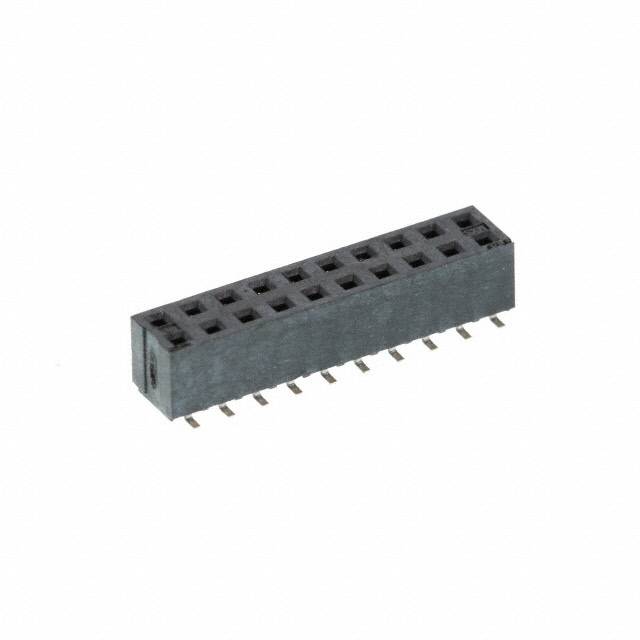

0791091009
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
2336 in stock

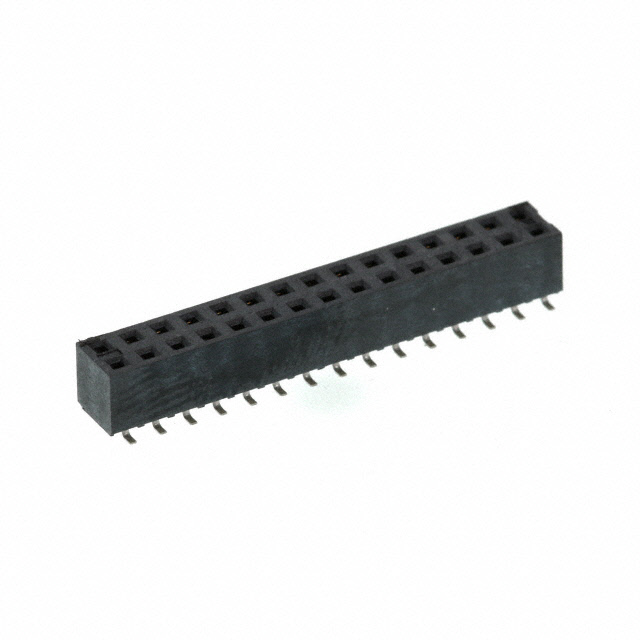

0791091014
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
1911 in stock
0791091016
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 34
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 34
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
2400 in stock

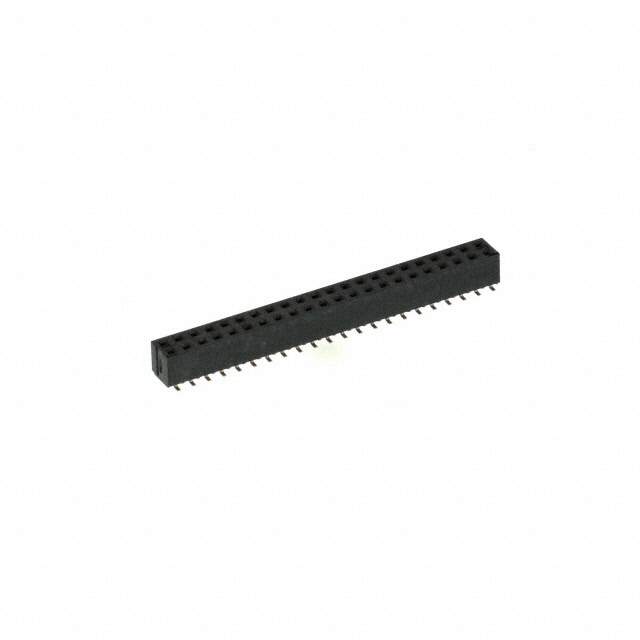

0791091021
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 44
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 44
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 125V
0
1810 in stock
0791091209
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 1A
Voltage Rating : 125V
Packaging : Tube
Series : Milli-Grid 79109
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.175" (4.45mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 1A
Voltage Rating : 125V
0
1560 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
