Part Number
Manufacturer
Description
Unit Price
In Stock

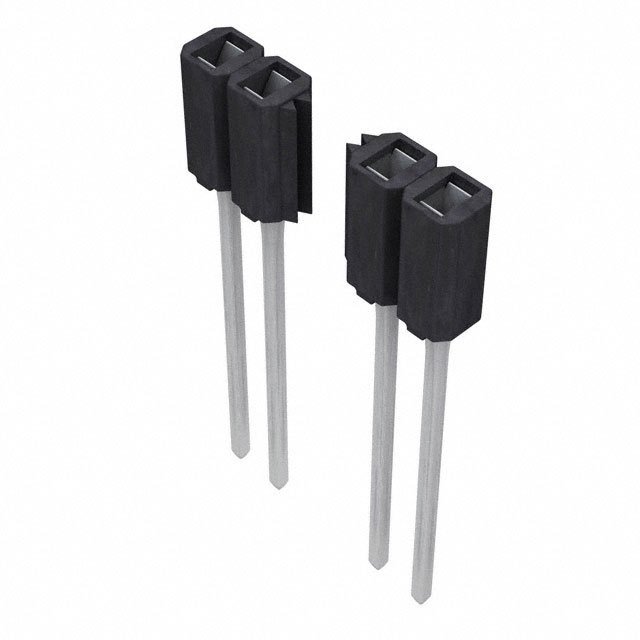

SSA-132-W-T
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSA
Part Status : Active
Connector Type : Receptacle, Breakaway
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 32
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Wire Wrap
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.230" (5.85mm)
Contact Length - Post : 0.656" (16.66mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 1000V
Packaging : Bulk
Series : SSA
Part Status : Active
Connector Type : Receptacle, Breakaway
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 32
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Wire Wrap
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.230" (5.85mm)
Contact Length - Post : 0.656" (16.66mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 1000V
0
554 in stock

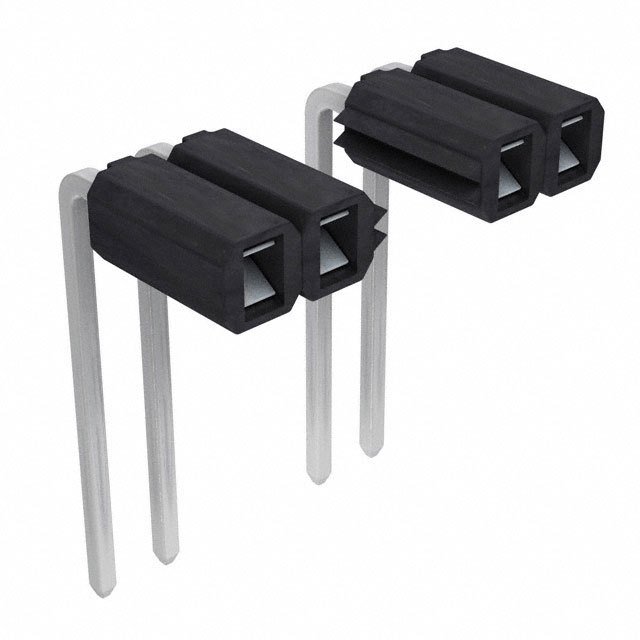

SSA-132-W-T-RA
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSA
Part Status : Active
Connector Type : Receptacle, Breakaway
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 32
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Wire Wrap
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.100" (2.54mm)
Contact Length - Post : 0.575" (14.61mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 1000V
Packaging : Bulk
Series : SSA
Part Status : Active
Connector Type : Receptacle, Breakaway
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 32
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Wire Wrap
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.100" (2.54mm)
Contact Length - Post : 0.575" (14.61mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 1000V
0
135 in stock

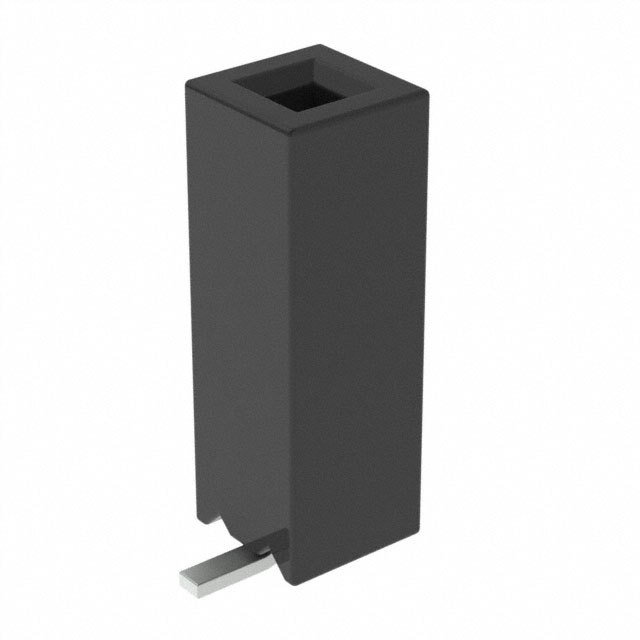

SSM-101-S-SV
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 1
Number of Positions Loaded : All
Pitch - Mating : -
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Bulk
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 1
Number of Positions Loaded : All
Pitch - Mating : -
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
417 in stock

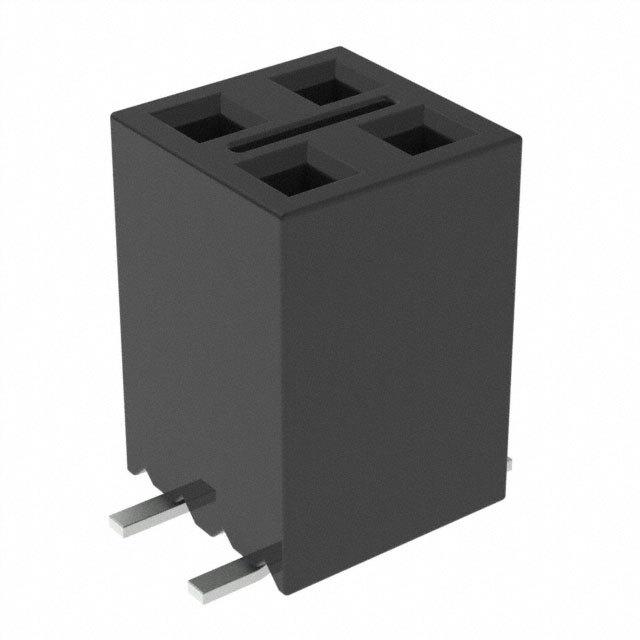

SSM-102-L-DV
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
445 in stock

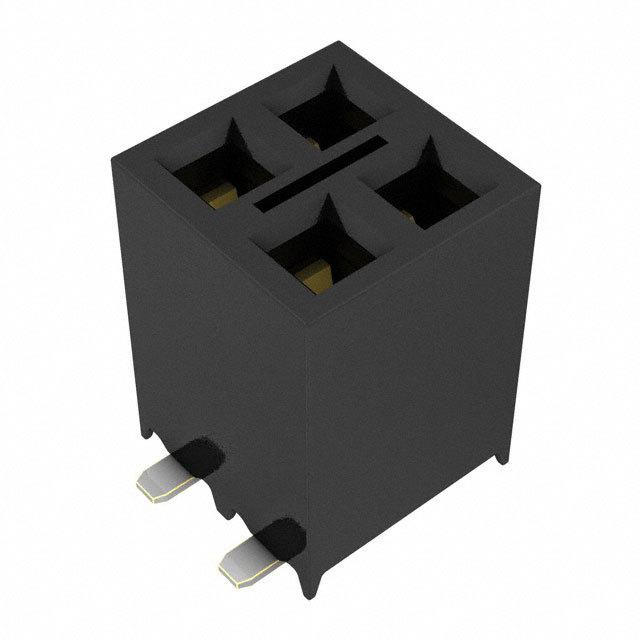

SSM-102-L-DV-K-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
175 in stock

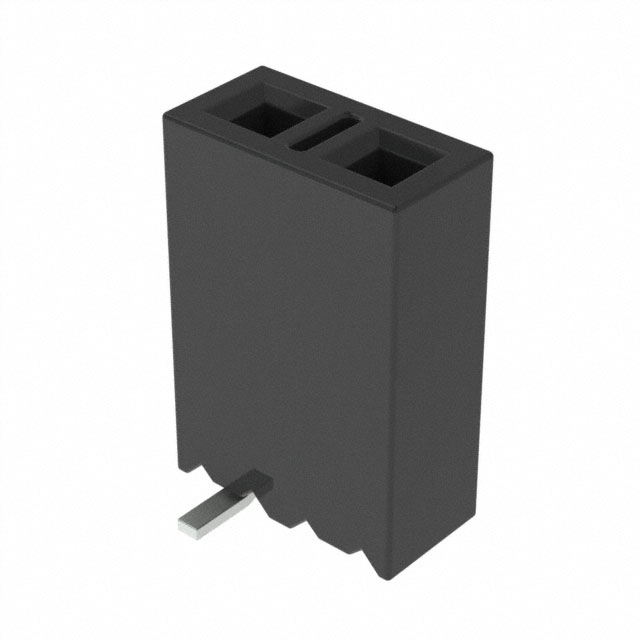

SSM-102-L-SV
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
771 in stock
SSM-102-S-DV-K-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
475 in stock
SSM-102-S-DV-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
475 in stock
SSM-103-F-DV-LC
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
159 in stock
SSM-103-L-DV
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
224 in stock
SSM-103-L-DV-K-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
454 in stock
SSM-103-L-SH-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.125" (3.18mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.125" (3.18mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
600 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
