Part Number
Manufacturer
Description
Unit Price
In Stock

SSM-105-L-DV-BE-K-TR SSM-105-L-DV-BE-K-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
450 in stock

SSM-105-L-DV-K-TR SSM-105-L-DV-K-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
1098 in stock

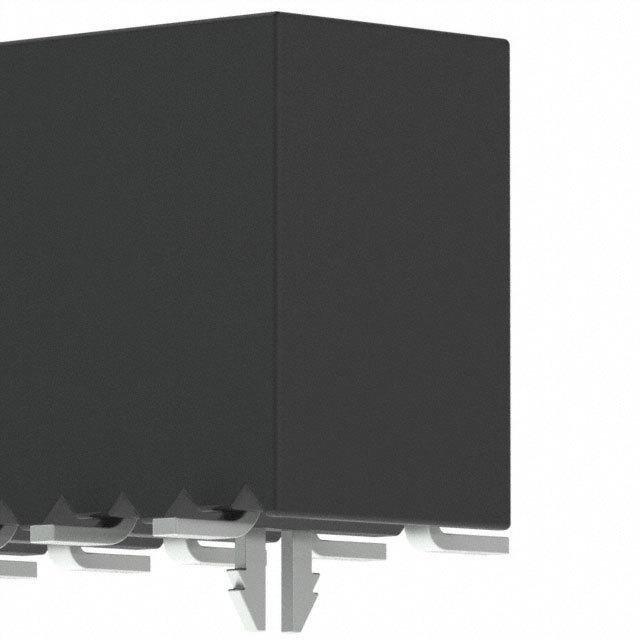

SSM-105-L-DV-LC SSM-105-L-DV-LC

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Tube
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
792 in stock

SSM-105-L-DV-P-TR SSM-105-L-DV-P-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
300 in stock

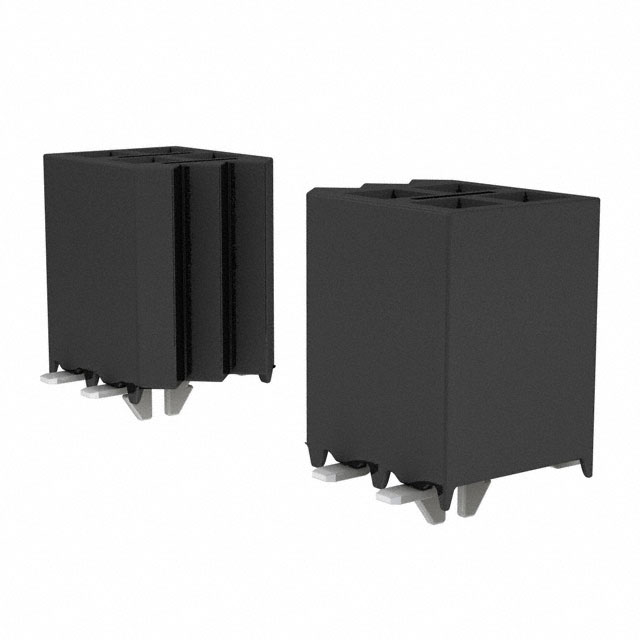

SSM-105-L-DV-TR SSM-105-L-DV-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
450 in stock

SSM-105-L-SV-P-TR SSM-105-L-SV-P-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
400 in stock

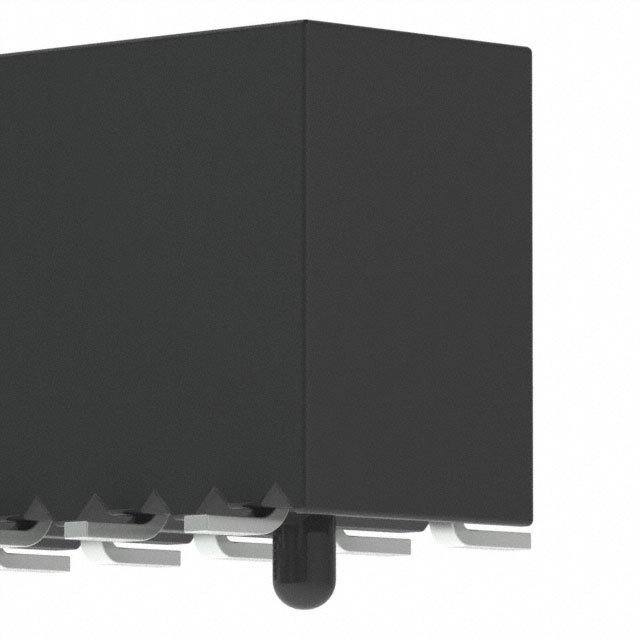

SSM-105-S-DV-A-P-TR SSM-105-S-DV-A-P-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide, Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
225 in stock

SSM-105-S-DV-LC SSM-105-S-DV-LC

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
363 in stock

SSM-105-S-DV-P-TR SSM-105-S-DV-P-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
300 in stock

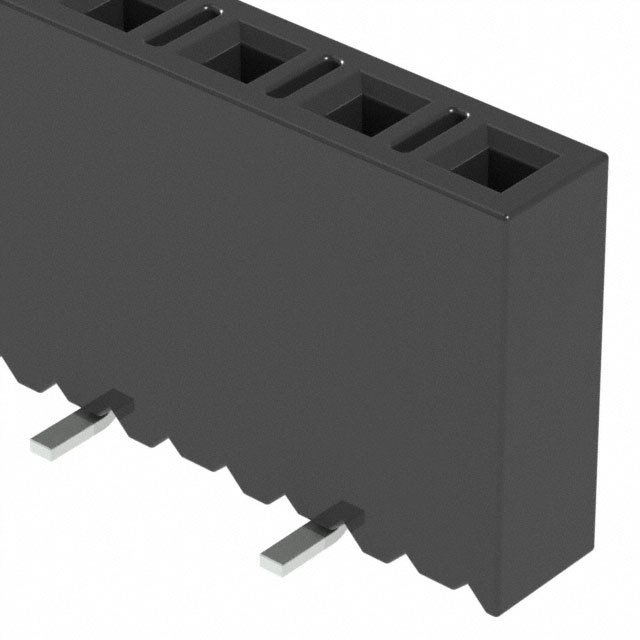

SSM-105-S-SV SSM-105-S-SV

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
446 in stock

SSM-106-L-DV-A SSM-106-L-DV-A

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
98 in stock

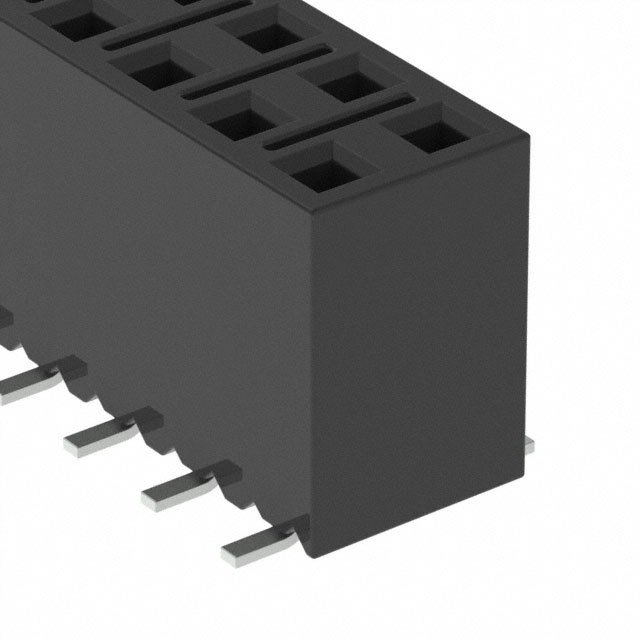

SSM-106-L-DV-P-TR SSM-106-L-DV-P-TR

Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSM
Part Status : Active
Connector Type : Receptacle, Pass Through
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.290" (7.37mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Pick and Place
Current Rating : 5.2A per Contact
Voltage Rating : 405VAC, 572VDC
0
250 in stock
