Part Number

Manufacturer

Description

Unit Price

In Stock

3128-3-00-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.525" (13.34mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.645" (16.38mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

2000 in stock

3128-4-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.550" (13.97mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.670" (17.02mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

745 in stock

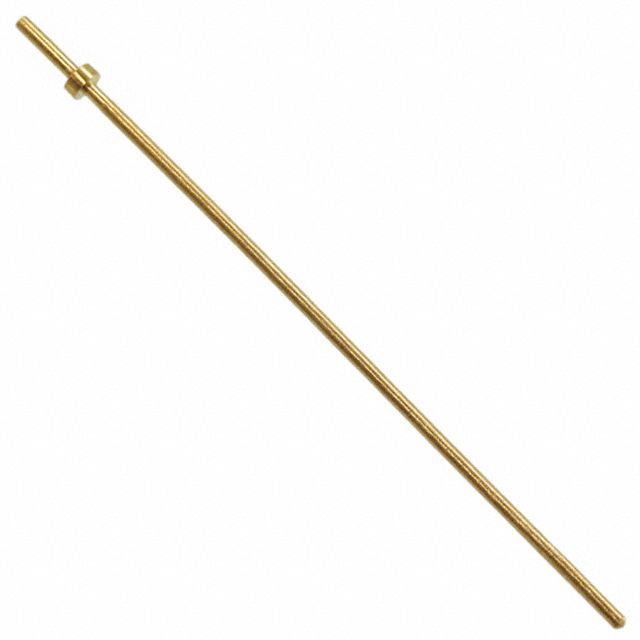

3128-5-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.930" (23.62mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 1.050" (26.67mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

27262 in stock

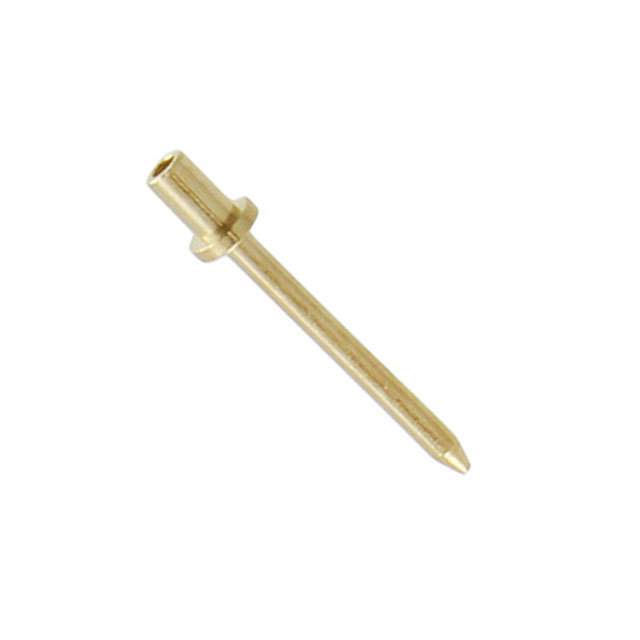

3129-1-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3129
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.215" (5.46mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.276" (7.01mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3107 in stock

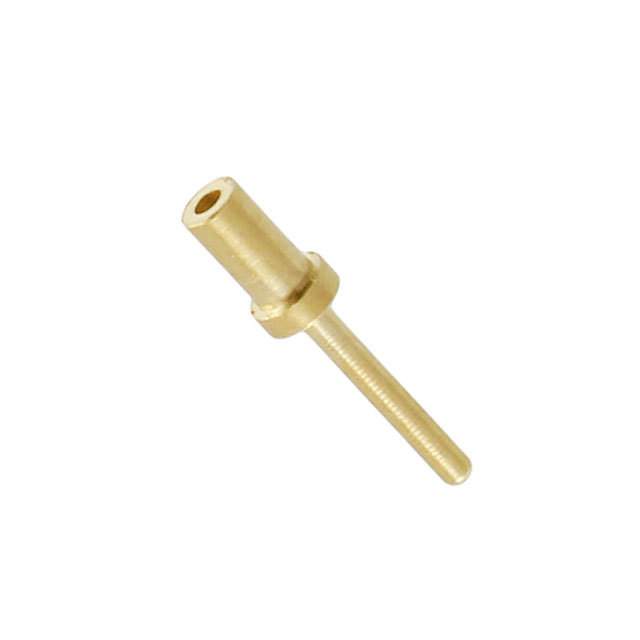

3130-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3130
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.179" (4.55mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.282" (7.16mm)
Flange Diameter : 0.062" (1.57mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

609 in stock

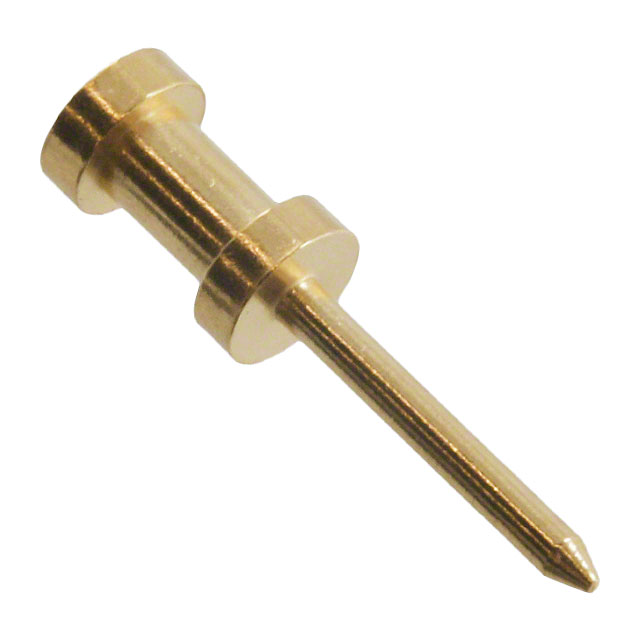

3132-0-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3132
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : 0.060" (1.52mm) Dia
Length - Above Flange : 0.240" (6.10mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.395" (10.03mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

44876 in stock

3135-1-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3135
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.075" (1.91mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.176" (4.47mm)
Flange Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

900 in stock

3136-1-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3136
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.030" (0.76mm) Dia
Length - Above Flange : 0.082" (2.08mm)
Length - Below Flange : 0.180" (4.57mm)
Length - Overall : 0.302" (7.67mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

960 in stock

3136-1-00-21-00-00-08-0

Mill-Max

1000 in stock

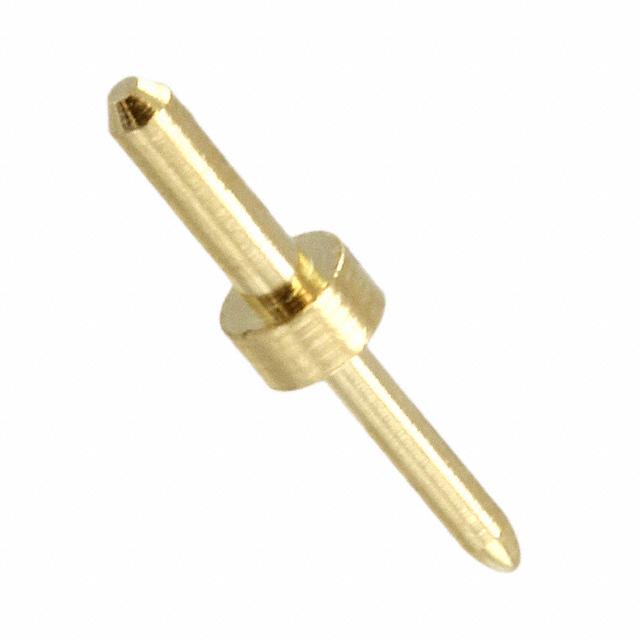

3136-3-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3136
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.030" (0.76mm) Dia
Length - Above Flange : 0.145" (3.68mm)
Length - Below Flange : 0.180" (4.57mm)
Length - Overall : 0.365" (9.27mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

25097 in stock

3136-3-00-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3136
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.030" (0.76mm) Dia
Length - Above Flange : 0.145" (3.68mm)
Length - Below Flange : 0.180" (4.57mm)
Length - Overall : 0.365" (9.27mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

1000 in stock

3136-3-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3136
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.030" (0.76mm) Dia
Length - Above Flange : 0.145" (3.68mm)
Length - Below Flange : 0.180" (4.57mm)
Length - Overall : 0.365" (9.27mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

1000 in stock
