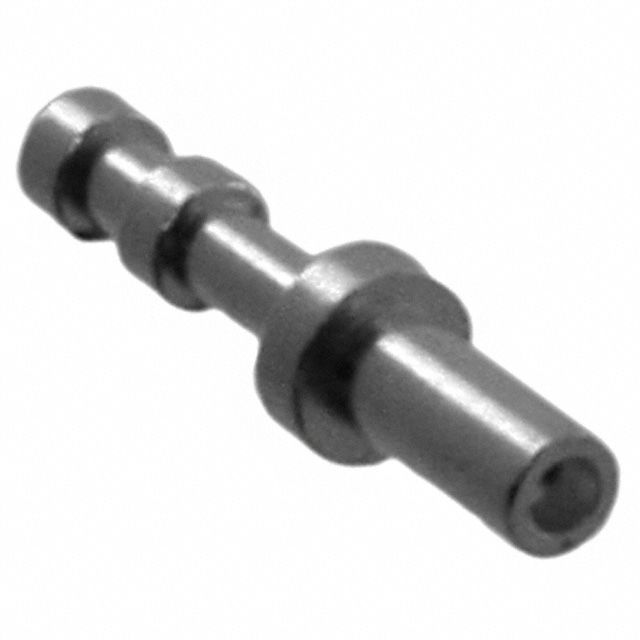

2108-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2108
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.040" (1.02mm)
Staking Side ID : 0.024" (0.61mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2108
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.040" (1.02mm)
Staking Side ID : 0.024" (0.61mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
9821 in stock
2109-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2109
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.136" (3.45mm)
Length - Below Flange : 0.085" (2.16mm)
Length - Overall : 0.221" (5.61mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.028" (0.71mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2109
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.136" (3.45mm)
Length - Below Flange : 0.085" (2.16mm)
Length - Overall : 0.221" (5.61mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.028" (0.71mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
1000 in stock

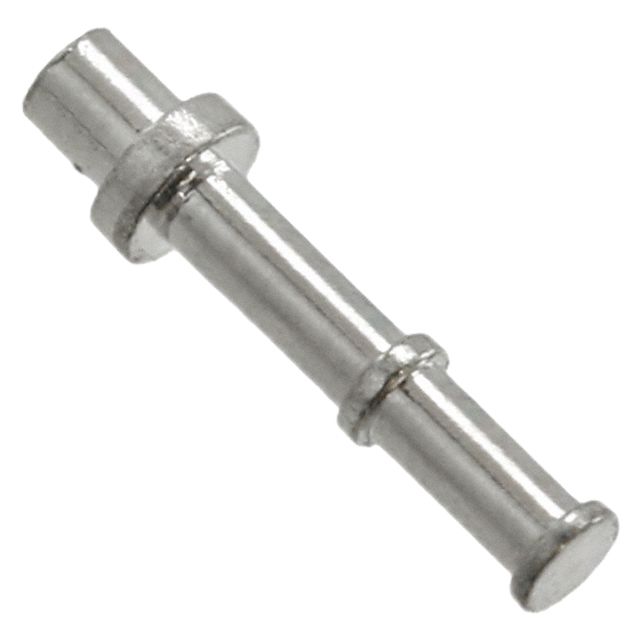

2110-1-00-50-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2110
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.230" (5.84mm)
Length - Below Flange : 0.049" (1.24mm)
Length - Overall : 0.279" (7.09mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.029" (0.74mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2110
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.230" (5.84mm)
Length - Below Flange : 0.049" (1.24mm)
Length - Overall : 0.279" (7.09mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.029" (0.74mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
735 in stock

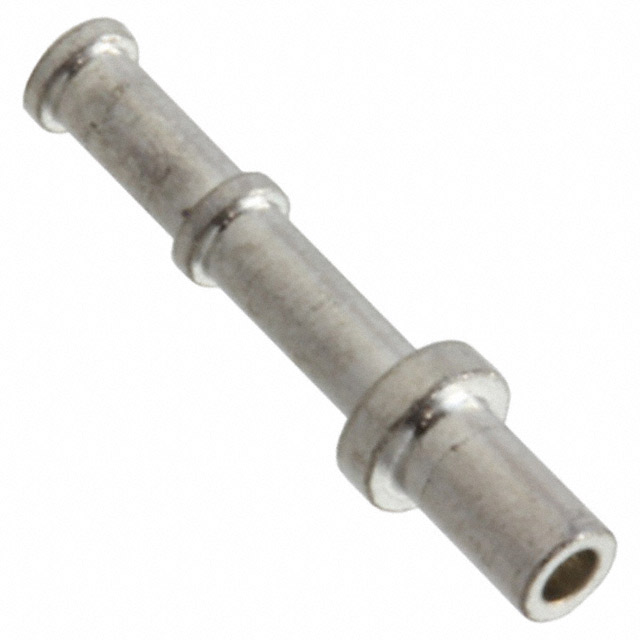

2110-2-00-50-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2110
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.230" (5.84mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.312" (7.92mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.029" (0.74mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2110
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.230" (5.84mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.312" (7.92mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.029" (0.74mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
150 in stock

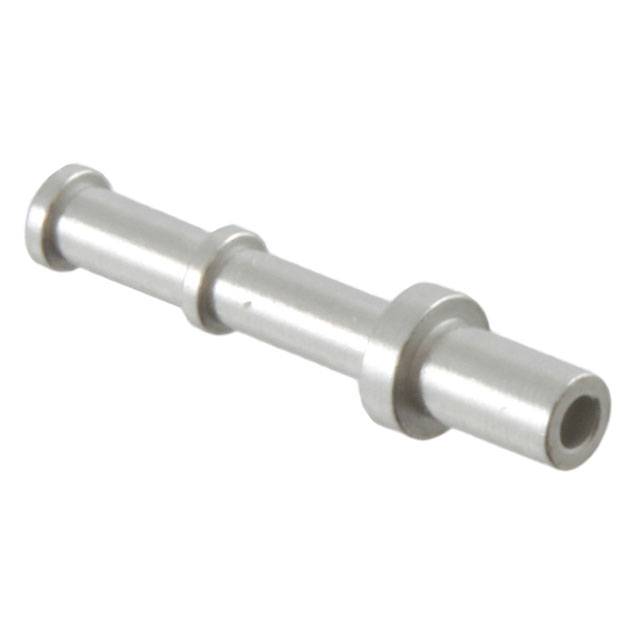

2110-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2110
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.230" (5.84mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.312" (7.92mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.029" (0.74mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2110
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.230" (5.84mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.312" (7.92mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.070" (1.77mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : 0.029" (0.74mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
14623 in stock

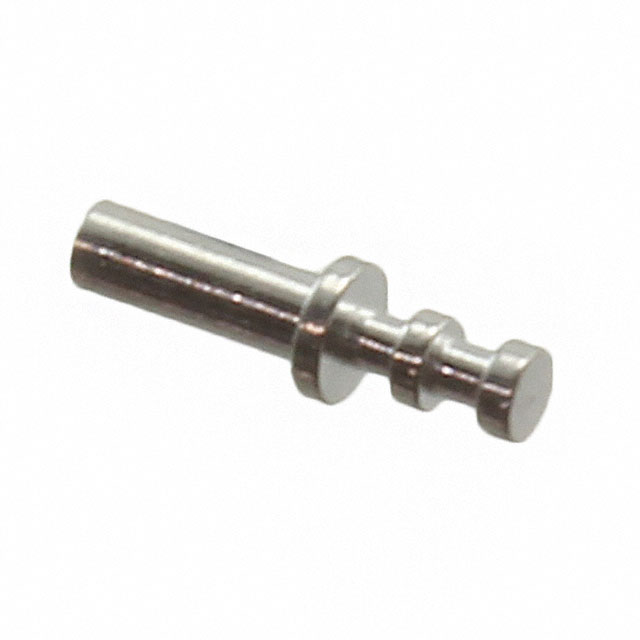

2111-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2111
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.070" (1.78mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.154" (3.91mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.047" (1.19mm)
Diameter - Turret Head : 0.032" (0.81mm)
Staking Side OD : 0.030" (0.76mm)
Staking Side ID : 0.020" (0.51mm)
Mounting Hole Diameter : 0.033" (0.84mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2111
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.070" (1.78mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.154" (3.91mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.047" (1.19mm)
Diameter - Turret Head : 0.032" (0.81mm)
Staking Side OD : 0.030" (0.76mm)
Staking Side ID : 0.020" (0.51mm)
Mounting Hole Diameter : 0.033" (0.84mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
800 in stock

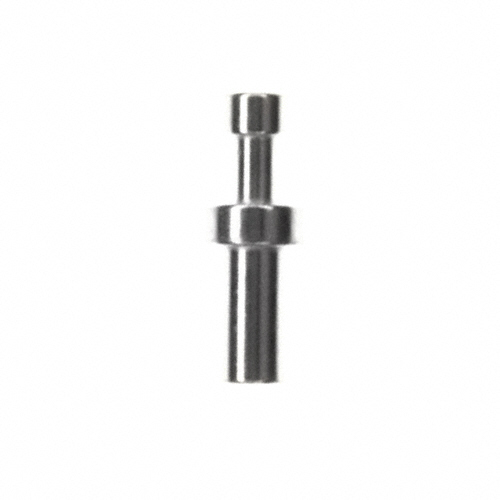

2113-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2113
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.094" (2.39mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.178" (4.52mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.040" (1.02mm)
Staking Side ID : 0.026" (0.66mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2113
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.094" (2.39mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.178" (4.52mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.040" (1.02mm)
Staking Side ID : 0.026" (0.66mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
865 in stock
2301-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2301
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.177" (4.50mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.063" (1.60mm)
Staking Side OD : 0.062" (1.57mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2301
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.177" (4.50mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.063" (1.60mm)
Staking Side OD : 0.062" (1.57mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
500 in stock
2305-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2305
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.186" (4.72mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.268" (6.81mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.072" (1.83mm)
Staking Side ID : -
Mounting Hole Diameter : 0.076" (1.93mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2305
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.186" (4.72mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.268" (6.81mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.072" (1.83mm)
Staking Side ID : -
Mounting Hole Diameter : 0.076" (1.93mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
100 in stock

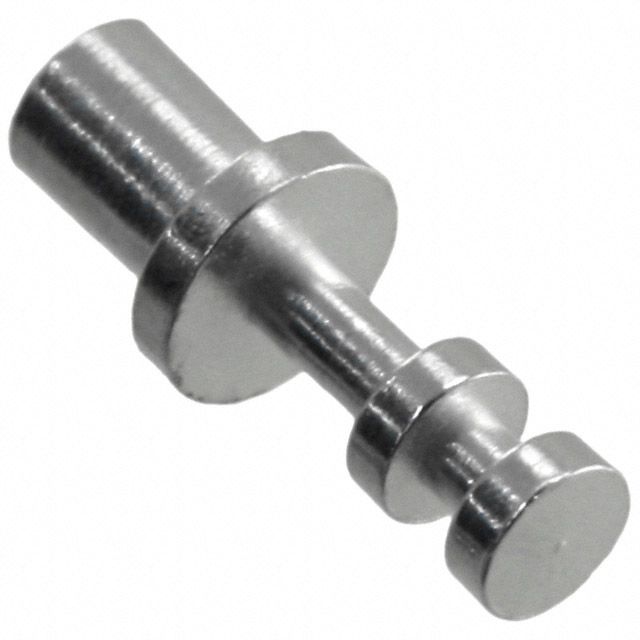

2308-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2308
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.044" (1.12mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2308
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.044" (1.12mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
5810 in stock
2308-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2308
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.084" (2.13mm)
Length - Below Flange : 0.090" (2.29mm)
Length - Overall : 6.090" (154.69mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.044" (1.12mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2308
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.084" (2.13mm)
Length - Below Flange : 0.090" (2.29mm)
Length - Overall : 6.090" (154.69mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.044" (1.12mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
1217 in stock
2316-2-00-50-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2316
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.151" (3.84mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.245" (6.22mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : 0.042" (1.07mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2316
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.151" (3.84mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.245" (6.22mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : 0.042" (1.07mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
1000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
