Part Number
Manufacturer
Description
Unit Price
In Stock
2316-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2316
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.151" (3.84mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.245" (6.22mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : 0.042" (1.07mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2316
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.151" (3.84mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.245" (6.22mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : 0.042" (1.07mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
918 in stock

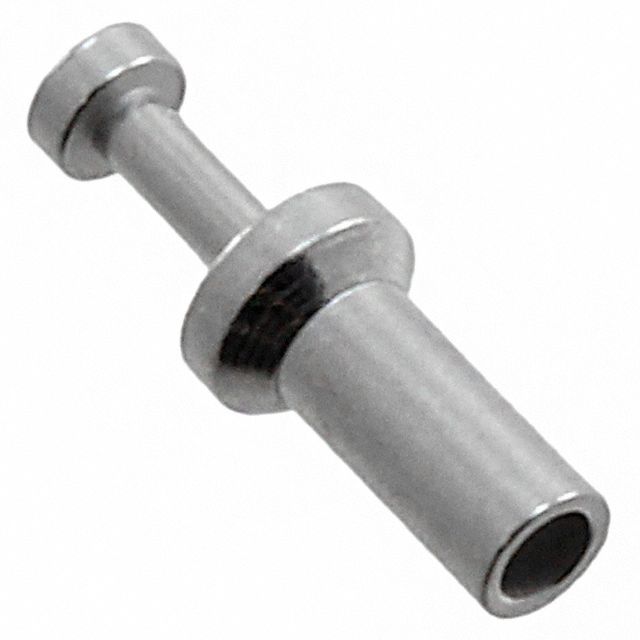

2316-3-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2316
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.151" (3.84mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.276" (7.01mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : 0.042" (1.07mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2316
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.151" (3.84mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.276" (7.01mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : 0.042" (1.07mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
4210 in stock

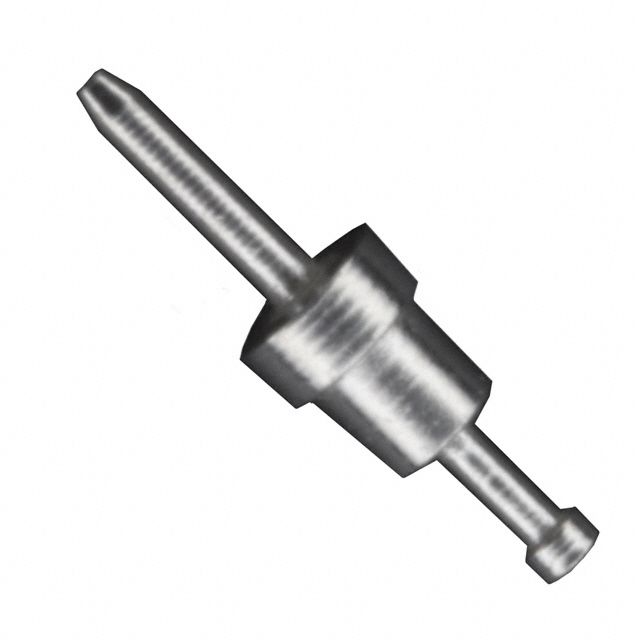

2318-1-00-01-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2318
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.159" (4.04mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.284" (7.21mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.078" (1.98mm)
Diameter - Turret Head : 0.033" (0.84mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.062" (1.57mm)
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2318
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.159" (4.04mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.284" (7.21mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.078" (1.98mm)
Diameter - Turret Head : 0.033" (0.84mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.062" (1.57mm)
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
2527 in stock
2321-1-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2321
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.176" (4.47mm)
Length - Overall : 0.426" (10.82mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.051" (1.30mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.076" (1.93mm)
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2321
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.176" (4.47mm)
Length - Overall : 0.426" (10.82mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.051" (1.30mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.076" (1.93mm)
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
1000 in stock
2333-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2333
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.125" (3.18mm)
Length - Below Flange : 0.087" (2.21mm)
Length - Overall : 0.212" (5.39mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled, Swage
Flange Diameter : 0.090" (2.29mm)
Diameter - Turret Head : 0.059" (1.50mm)
Staking Side OD : 0.048" (1.22mm)
Staking Side ID : 0.026" (0.66mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2333
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.125" (3.18mm)
Length - Below Flange : 0.087" (2.21mm)
Length - Overall : 0.212" (5.39mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled, Swage
Flange Diameter : 0.090" (2.29mm)
Diameter - Turret Head : 0.059" (1.50mm)
Staking Side OD : 0.048" (1.22mm)
Staking Side ID : 0.026" (0.66mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
1000 in stock

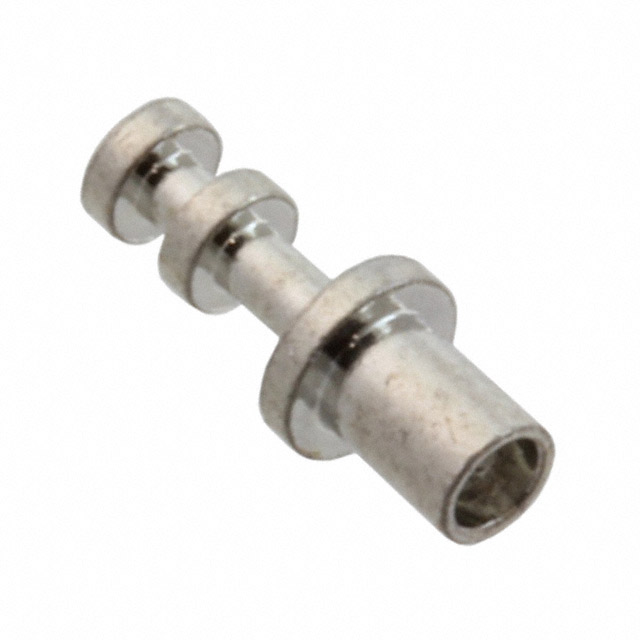

2348-2-00-50-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2348
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2348
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
1551 in stock
2348-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2348
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2348
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.061" (1.55mm)
Staking Side OD : 0.061" (1.55mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
845 in stock

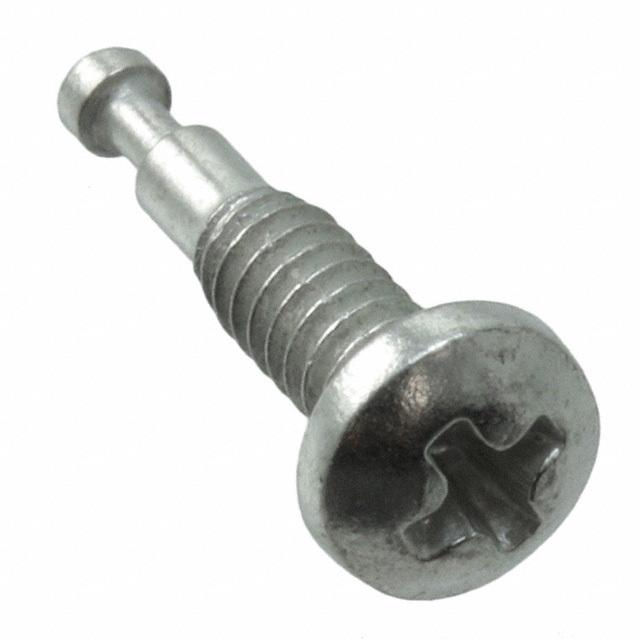

2352
Pomona Electronics
Manufacturer : Pomona Electronics
Series : 2352
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : -
Length - Below Flange : -
Length - Overall : 0.540" (13.72mm)
Mounting Type : Panel Mount
Termination : Threaded
Flange Diameter : -
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : -
Contact Material : Steel, Carbon
Contact Finish : -
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : 2352
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : -
Length - Below Flange : -
Length - Overall : 0.540" (13.72mm)
Mounting Type : Panel Mount
Termination : Threaded
Flange Diameter : -
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : -
Contact Material : Steel, Carbon
Contact Finish : -
Contact Finish Thickness : -
Insulation : Non-Insulated
0
46 in stock
2355-3-00-50-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2355
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.191" (4.85mm)
Length - Below Flange : 0.115" (2.92mm)
Length - Overall : 0.306" (7.77mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.070" (1.78mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.073" (1.85mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2355
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.191" (4.85mm)
Length - Below Flange : 0.115" (2.92mm)
Length - Overall : 0.306" (7.77mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.070" (1.78mm)
Staking Side ID : 0.046" (1.17mm)
Mounting Hole Diameter : 0.073" (1.85mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
950 in stock
2501-2-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2501
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.219" (5.56mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.328" (8.33mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2501
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.219" (5.56mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.328" (8.33mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
3826 in stock
2501-2-00-80-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2501
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.219" (5.56mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.328" (8.33mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Series : 2501
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.219" (5.56mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.328" (8.33mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
0
6511 in stock
2501-3-00-44-00-00-07-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2501
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.219" (5.56mm)
Length - Below Flange : 0.140" (3.56mm)
Length - Overall : 0.359" (9.12mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Series : 2501
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.219" (5.56mm)
Length - Below Flange : 0.140" (3.56mm)
Length - Overall : 0.359" (9.12mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
0
1000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
