Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

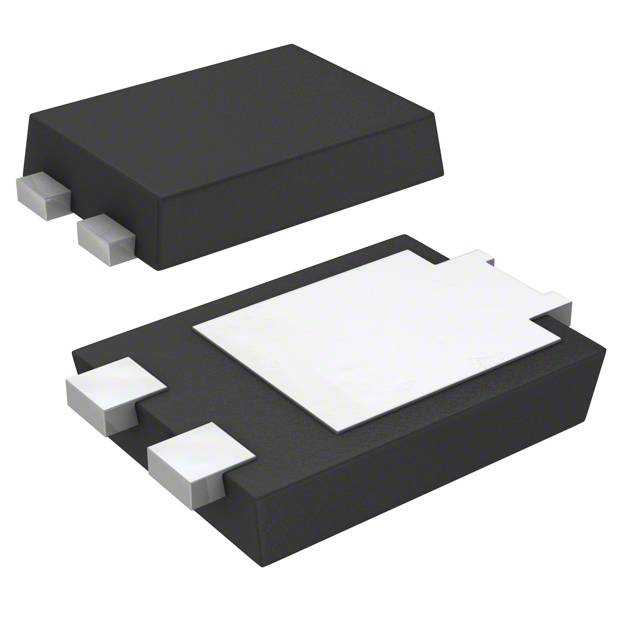

ZXTN04120HP5TC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 5V
Power - Max : 3.2W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerDI?
Supplier Device Package : PowerDI?
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 5V
Power - Max : 3.2W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerDI?
Supplier Device Package : PowerDI?
0
1259 in stock
ZXTN07012EFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 320mV @ 45mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 220MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 320mV @ 45mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 220MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
2068 in stock
ZXTN07045EFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 80mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 190MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 45V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 80mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 190MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
13747 in stock
ZXTN08400BFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 100mA, 500mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 50mA, 5V
Power - Max : 1.5W
Frequency - Transition : 40MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 100mA, 500mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 50mA, 5V
Power - Max : 1.5W
Frequency - Transition : 40MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
100 in stock
ZXTN19020DFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 180mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 180mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
25 in stock
ZXTN19020DGTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 9A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 450mA, 9A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 9A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 450mA, 9A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
1755 in stock
ZXTN19020DZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 375mA, 7.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 2.4W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 375mA, 7.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 2.4W
Frequency - Transition : 160MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
100 in stock

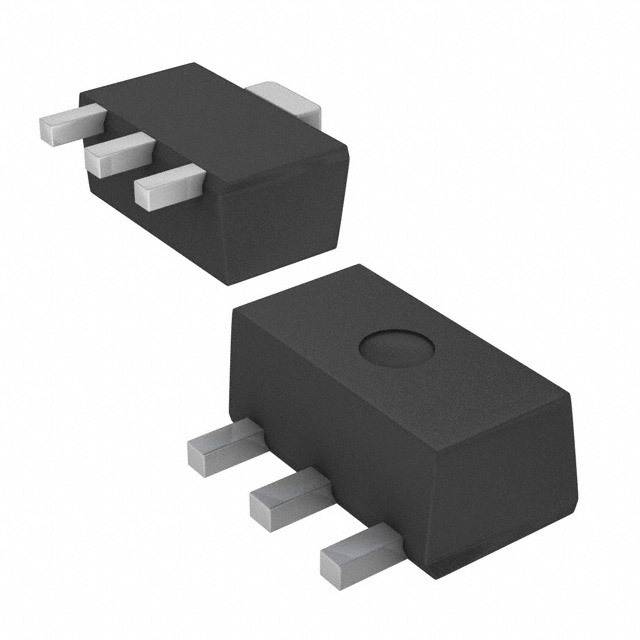

ZXTN19055DZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 55V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 600mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 250 @ 10mA, 2V
Power - Max : 2.1W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 55V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 600mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 250 @ 10mA, 2V
Power - Max : 2.1W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
1161 in stock

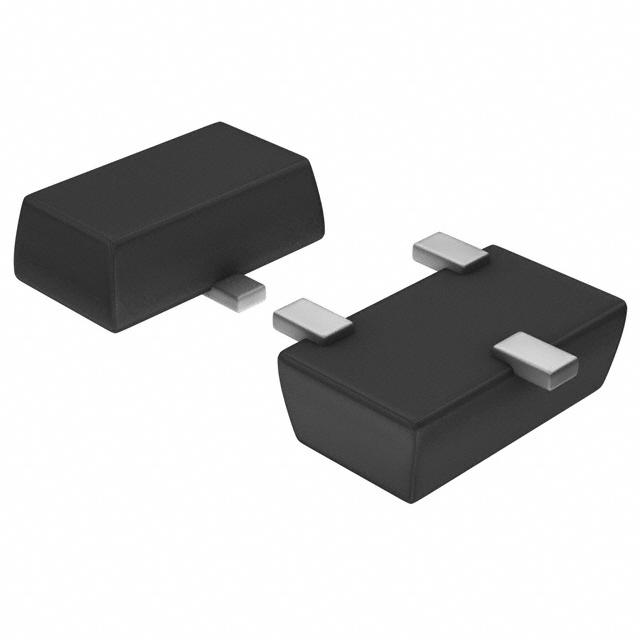

ZXTN19060CFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
1476 in stock
ZXTN19060CGTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 700mA, 7A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 700mA, 7A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
100 in stock
ZXTN19100CFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 235mV @ 450mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 235mV @ 450mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
21467 in stock
ZXTN19100CGTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 430mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 430mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
164 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
