ZXTN19100CZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.25A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 525mA, 5.25A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 2.4W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.25A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 525mA, 5.25A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 2.4W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
3510 in stock
ZXTN2005GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 230mV @ 150mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 1A, 1V
Power - Max : 3W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 230mV @ 150mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 1A, 1V
Power - Max : 3W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
5916 in stock
ZXTN2005ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 150mA, 6.5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 1A, 1V
Power - Max : 2.1W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 150mA, 6.5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 1A, 1V
Power - Max : 2.1W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
33000 in stock
ZXTN2007GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 300mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 3W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 300mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 3W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
3120 in stock

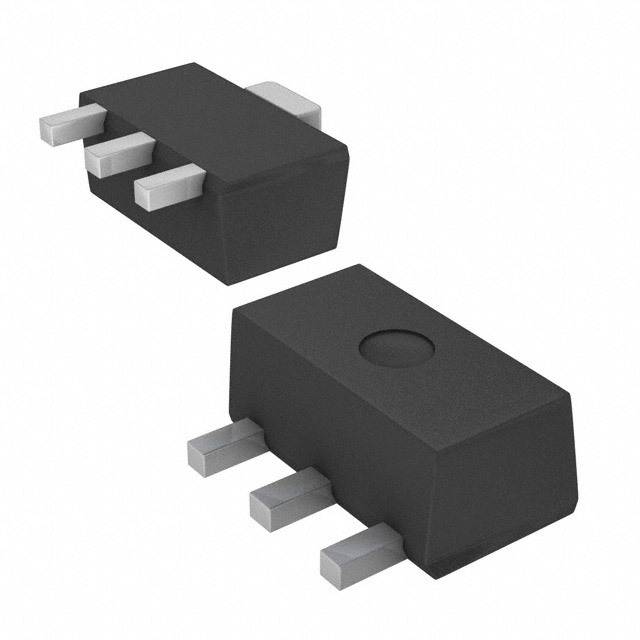

ZXTN2007ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 300mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 2.1W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 300mA, 6.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 2.1W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
7940 in stock
ZXTN2010A
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 200mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 200mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92
0
9625 in stock

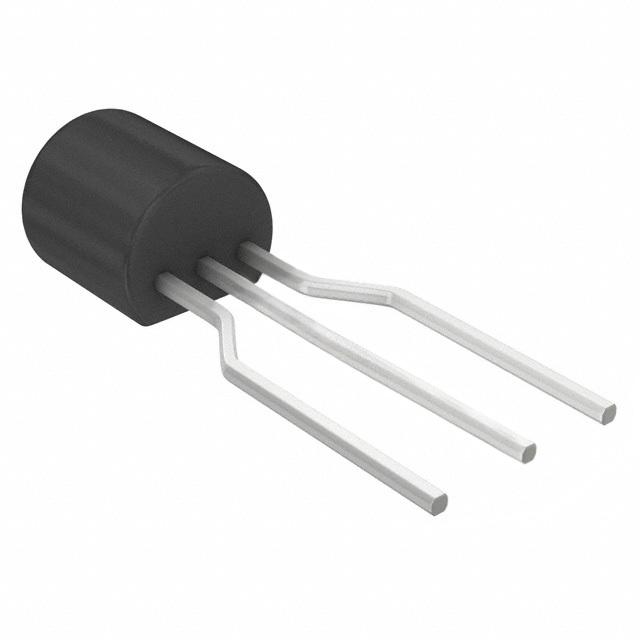

ZXTN2010ASTZ
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 200mA, 5A
Current - Collector Cutoff (Max) : 500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 200mA, 5A
Current - Collector Cutoff (Max) : 500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92
0
1574 in stock
ZXTN2010GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 3W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 3W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
668 in stock
ZXTN2010ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 230mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 2.1W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 230mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 2.1W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
12907 in stock
ZXTN2011GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 2V
Power - Max : 3W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 2V
Power - Max : 3W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
906 in stock
ZXTN2018FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1.2W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 300mA, 6A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1.2W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
2708 in stock
ZXTN2020FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 2V
Power - Max : 1.2W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 2V
Power - Max : 1.2W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
