ZXTP2012ASTZ
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 1W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : E-Line-3
Supplier Device Package : E-Line (TO-92 compatible)
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 1W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : E-Line-3
Supplier Device Package : E-Line (TO-92 compatible)
0
2723 in stock
ZXTP2012GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 3W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 3W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
24209 in stock
ZXTP2012ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 215mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1.5W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 215mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 1V
Power - Max : 1.5W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
15075 in stock
ZXTP2013GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 340mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 3W
Frequency - Transition : 125MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 340mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 3W
Frequency - Transition : 125MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
100 in stock
ZXTP2013ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3.5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 2.1W
Frequency - Transition : 125MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3.5A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 1V
Power - Max : 2.1W
Frequency - Transition : 125MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
460 in stock
ZXTP2014GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 360mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 3W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 360mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 3W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
19 in stock

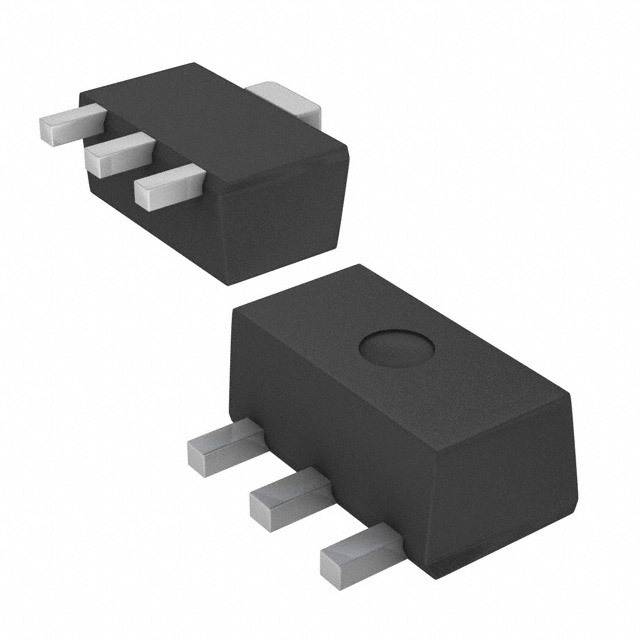

ZXTP2014ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 330mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 2.1W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 330mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 2.1W
Frequency - Transition : 120MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
1519 in stock
ZXTP2025FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 500mA, 2V
Power - Max : 1.2W
Frequency - Transition : 190MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 500mA, 2V
Power - Max : 1.2W
Frequency - Transition : 190MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
100 in stock
ZXTP2027FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 240mV @ 200mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 2V
Power - Max : 1.2W
Frequency - Transition : 165MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 240mV @ 200mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 2A, 2V
Power - Max : 1.2W
Frequency - Transition : 165MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
5509 in stock
ZXTP2029FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 2V
Power - Max : 1.2W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 2V
Power - Max : 1.2W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
4504 in stock
ZXTP2039FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 500mA, 5V
Power - Max : 350mW
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 500mA, 5V
Power - Max : 350mW
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
3579 in stock
ZXTP2041FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 5V
Power - Max : 350mW
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 5V
Power - Max : 350mW
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
3 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
