2N7002K-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.6nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-236
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.6nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-236
Package / Case : TO-236-3, SC-59, SOT-23-3
0
216630 in stock

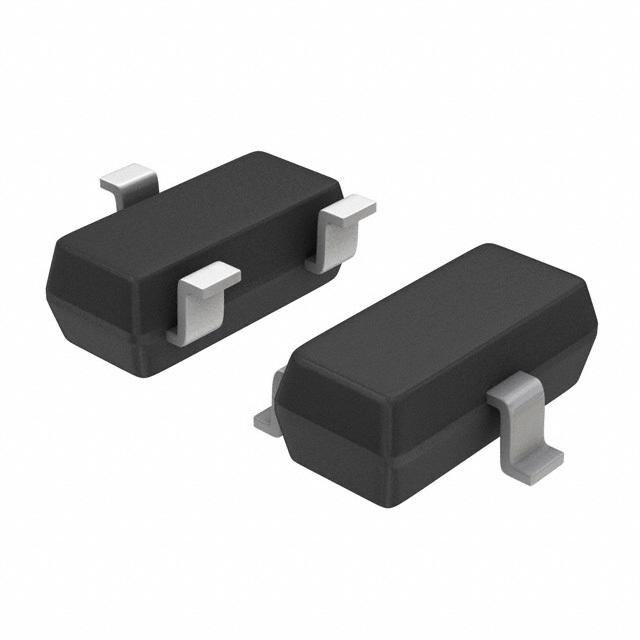

2N7002KT3G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 24.5pF @ 20V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 24.5pF @ 20V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
2N7002K-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 340mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 40pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 340mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 40pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
14917 in stock

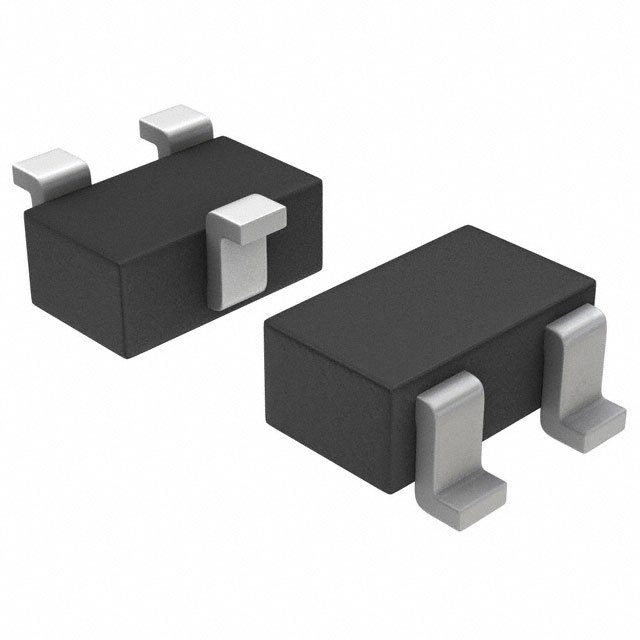

2N7002KW
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-323
Package / Case : SC-70, SOT-323
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-323
Package / Case : SC-70, SOT-323
0
31709 in stock
2N7002KW-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 340mA
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 40pF @ 10V
FET Feature : -
Power Dissipation (Max) : 200mW
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Supplier Device Package : SOT-323
Package / Case : SC-70, SOT-323
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 340mA
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 40pF @ 10V
FET Feature : -
Power Dissipation (Max) : 200mW
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Supplier Device Package : SOT-323
Package / Case : SC-70, SOT-323
0
100 in stock
2N7002L
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 200mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 200mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3
Package / Case : TO-236-3, SC-59, SOT-23-3
0
32374 in stock
2N7002L6327HTSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : OptiMOS™
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 20pF @ 25V
FET Feature : -
Power Dissipation (Max) : 500mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : PG-SOT23-3
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Tape & Reel (TR)
Series : OptiMOS™
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 20pF @ 25V
FET Feature : -
Power Dissipation (Max) : 500mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : PG-SOT23-3
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
2N7002LT1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 225mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 225mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
2N7002LT3
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 225mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 225mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
2N7002LT3G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 225mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 225mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
2N7002MTF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 200mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 200mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock

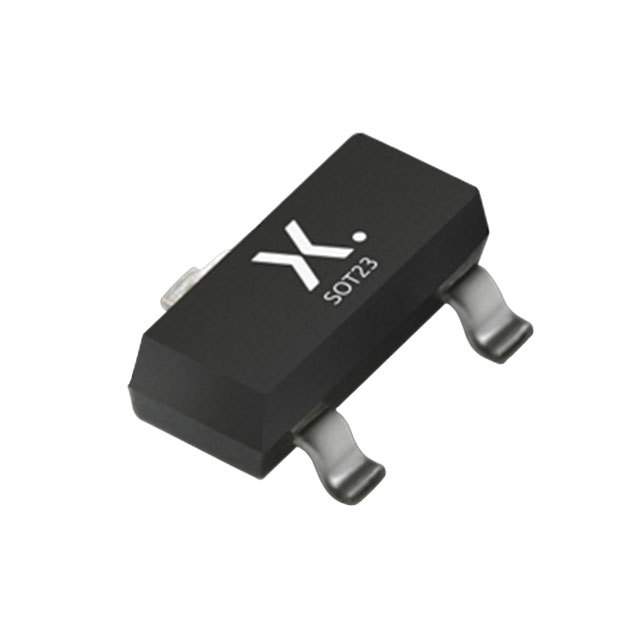

2N7002P,215
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-236AB (SOT23)
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-236AB (SOT23)
Package / Case : TO-236-3, SC-59, SOT-23-3
0
112428 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
