Part Number
Manufacturer
Description
Unit Price
In Stock
AUIRGP35B60PD
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 35A
Power - Max : 308W
Switching Energy : 220µJ (on), 215µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 26ns/110ns
Test Condition : 390V, 22A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 35A
Power - Max : 308W
Switching Energy : 220µJ (on), 215µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 26ns/110ns
Test Condition : 390V, 22A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
285 in stock
AUIRGP35B60PD-E
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 35A
Power - Max : 308W
Switching Energy : 220µJ (on), 215µJ (off)
Input Type : Standard
Gate Charge : 55nC
Td (on/off) @ 25°C : 26ns/110ns
Test Condition : 390V, 22A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 35A
Power - Max : 308W
Switching Energy : 220µJ (on), 215µJ (off)
Input Type : Standard
Gate Charge : 55nC
Td (on/off) @ 25°C : 26ns/110ns
Test Condition : 390V, 22A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
0
100 in stock
AUIRGP4062D1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 217W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 217W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
100 in stock
AUIRGP4062D1-E
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 217W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 217W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
0
100 in stock
AUIRGP4063D
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 144A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 48A
Power - Max : 330W
Switching Energy : 625µJ (on), 1.28mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 60ns/145ns
Test Condition : 400V, 48A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 144A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 48A
Power - Max : 330W
Switching Energy : 625µJ (on), 1.28mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 60ns/145ns
Test Condition : 400V, 48A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
65 in stock
AUIRGP4063D-E
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 144A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 48A
Power - Max : 330W
Switching Energy : 625µJ (on), 1.28mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 60ns/145ns
Test Condition : 400V, 48A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 144A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 48A
Power - Max : 330W
Switching Energy : 625µJ (on), 1.28mJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 60ns/145ns
Test Condition : 400V, 48A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
0
75 in stock
AUIRGP4066D1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 140A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 454W
Switching Energy : 4.24mJ (on), 2.17mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 400V, 75A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 140A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 454W
Switching Energy : 4.24mJ (on), 2.17mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 50ns/200ns
Test Condition : 400V, 75A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
371 in stock

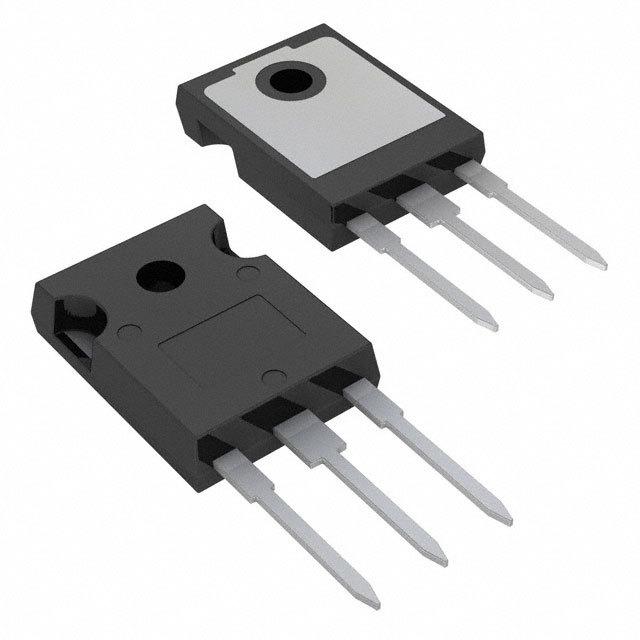

AUIRGP50B60PD1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 50A
Power - Max : 390W
Switching Energy : 255µJ (on), 375µJ (off)
Input Type : Standard
Gate Charge : 205nC
Td (on/off) @ 25°C : 30ns/130ns
Test Condition : 390V, 33A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 50A
Power - Max : 390W
Switching Energy : 255µJ (on), 375µJ (off)
Input Type : Standard
Gate Charge : 205nC
Td (on/off) @ 25°C : 30ns/130ns
Test Condition : 390V, 33A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
59 in stock
AUIRGP50B60PD1E
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 50A
Power - Max : 390W
Switching Energy : 255µJ (on), 375µJ (off)
Input Type : Standard
Gate Charge : 205nC
Td (on/off) @ 25°C : 30ns/130ns
Test Condition : 390V, 33A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 50A
Power - Max : 390W
Switching Energy : 255µJ (on), 375µJ (off)
Input Type : Standard
Gate Charge : 205nC
Td (on/off) @ 25°C : 30ns/130ns
Test Condition : 390V, 33A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
0
100 in stock
AUIRGP65A40D0
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : CooliRIGBT?br/>Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : CooliRIGBT?br/>Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
100 in stock
AUIRGP65G40D0
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : CooliRIGBT?br/>Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 62A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 625W
Switching Energy : 298µJ (on), 147µJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 35ns/142ns
Test Condition : 400V, 20A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : CooliRIGBT?br/>Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 62A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 625W
Switching Energy : 298µJ (on), 147µJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 35ns/142ns
Test Condition : 400V, 20A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
100 in stock
AUIRGP66524D0
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 24A
Power - Max : 214W
Switching Energy : 915µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 30ns/75ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 176ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 24A
Power - Max : 214W
Switching Energy : 915µJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 30ns/75ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 176ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
0
396 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
