- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

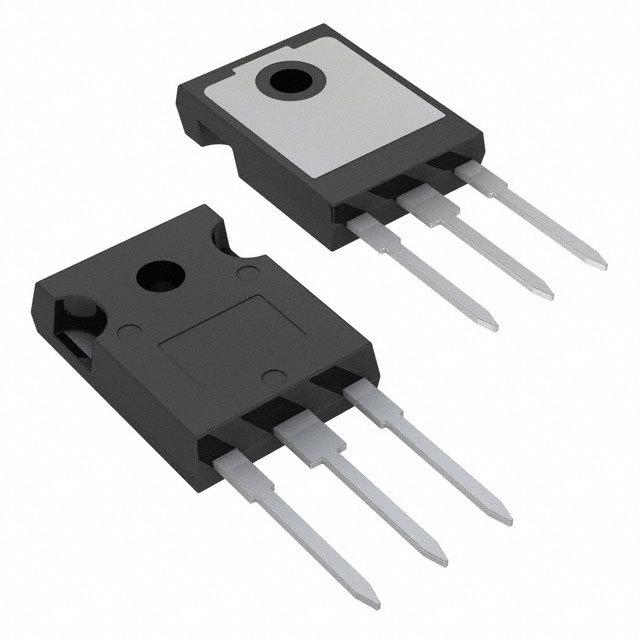

AUIRGPS4067D1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 120A
Power - Max : 750W
Switching Energy : 8.2mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 360nC
Td (on/off) @ 25°C : 69ns/198ns
Test Condition : 400V, 120A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 360ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : SUPER-247 (TO-274AA)
Packaging : Tube
Series : -
Part Status : Last Time Buy
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 120A
Power - Max : 750W
Switching Energy : 8.2mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 360nC
Td (on/off) @ 25°C : 69ns/198ns
Test Condition : 400V, 120A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 360ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : SUPER-247 (TO-274AA)
0
100 in stock

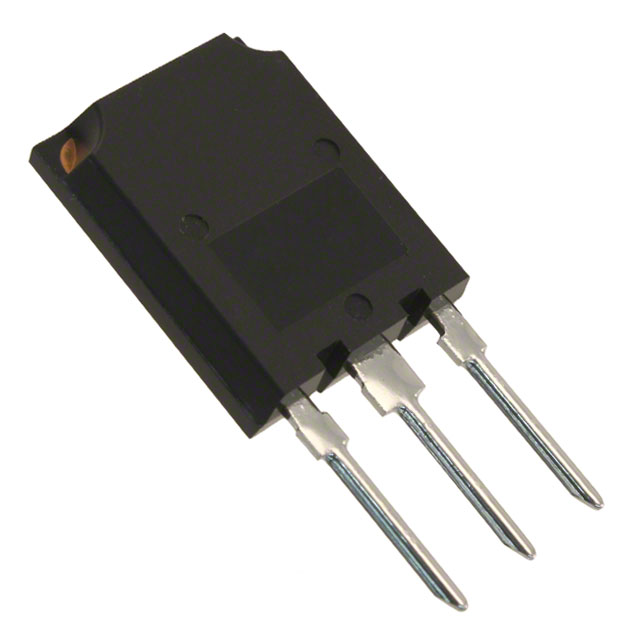

AUIRGPS4070D0
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 120A
Power - Max : 750W
Switching Energy : 5.7mJ (on), 4.2mJ (off)
Input Type : Standard
Gate Charge : 250nC
Td (on/off) @ 25°C : 40ns/140ns
Test Condition : 400V, 120A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 210ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-274AA
Supplier Device Package : PG-TO274-3-903
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 360A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 120A
Power - Max : 750W
Switching Energy : 5.7mJ (on), 4.2mJ (off)
Input Type : Standard
Gate Charge : 250nC
Td (on/off) @ 25°C : 40ns/140ns
Test Condition : 400V, 120A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 210ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-274AA
Supplier Device Package : PG-TO274-3-903
0
100 in stock
AUIRGR4045D
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 6A
Power - Max : 77W
Switching Energy : 56µJ (on), 122µJ (off)
Input Type : Standard
Gate Charge : 19.5nC
Td (on/off) @ 25°C : 27ns/75ns
Test Condition : 400V, 6A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 74ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 6A
Power - Max : 77W
Switching Energy : 56µJ (on), 122µJ (off)
Input Type : Standard
Gate Charge : 19.5nC
Td (on/off) @ 25°C : 27ns/75ns
Test Condition : 400V, 6A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 74ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
0
100 in stock
AUIRGS30B60K
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 78A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 30A
Power - Max : 370W
Switching Energy : 350µJ (on), 825µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 46ns/185ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 78A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 30A
Power - Max : 370W
Switching Energy : 350µJ (on), 825µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 46ns/185ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
1000 in stock
AUIRGS4062D1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 59A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 246W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 59A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 246W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
441 in stock

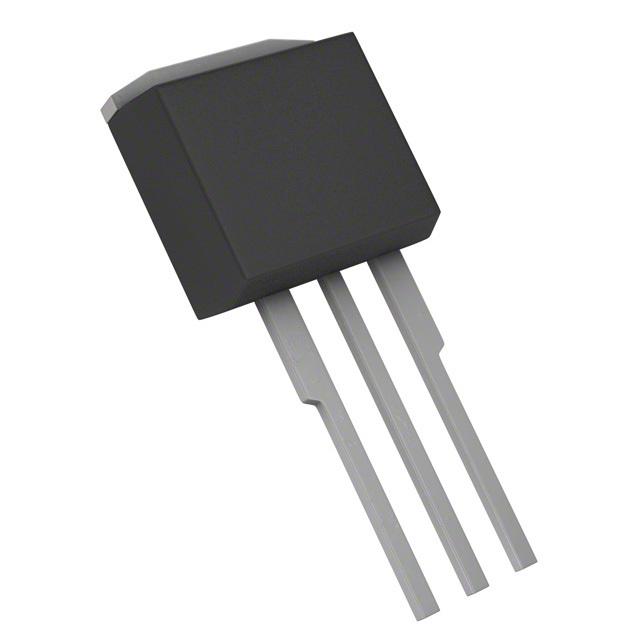

AUIRGSL30B60K
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 78A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 30A
Power - Max : 370W
Switching Energy : 350µJ (on), 825µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 46ns/185ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 78A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 30A
Power - Max : 370W
Switching Energy : 350µJ (on), 825µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 46ns/185ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
0
100 in stock
AUIRGSL4062D1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 59A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 246W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 59A
Current - Collector Pulsed (Icm) : 72A
Vce(on) (Max) @ Vge, Ic : 1.77V @ 15V, 24A
Power - Max : 246W
Switching Energy : 532µJ (on), 311µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 19ns/90ns
Test Condition : 400V, 24A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 102ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
0
100 in stock

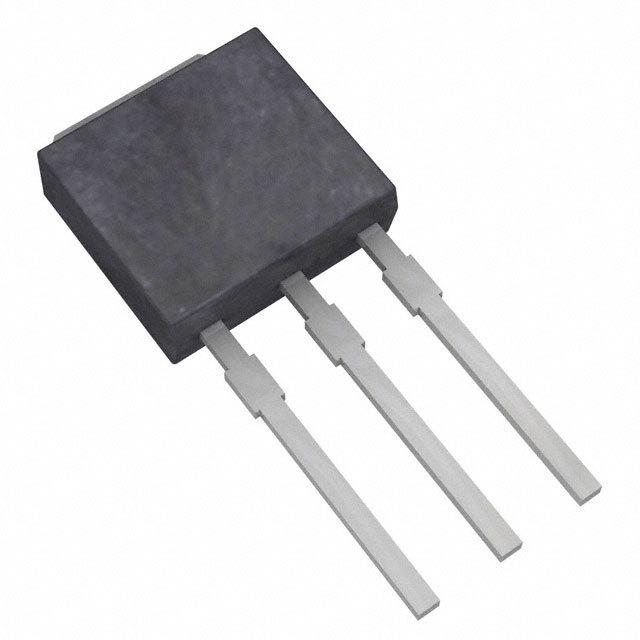

AUIRGU4045D
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 6A
Power - Max : 77W
Switching Energy : 56µJ (on), 122µJ (off)
Input Type : Standard
Gate Charge : 19.5nC
Td (on/off) @ 25°C : 27ns/75ns
Test Condition : 400V, 6A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 74ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 6A
Power - Max : 77W
Switching Energy : 56µJ (on), 122µJ (off)
Input Type : Standard
Gate Charge : 19.5nC
Td (on/off) @ 25°C : 27ns/75ns
Test Condition : 400V, 6A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 74ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
0
100 in stock
AUXKNG4PH50S-215
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : -
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
AUXMIGP4063D
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : -
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : -
Part Status : Last Time Buy
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : -
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
BUP213
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : 64A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 15A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 70ns/400ns
Test Condition : 600V, 15A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : 64A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 15A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 70ns/400ns
Test Condition : 600V, 15A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
DGTD65T15H2TF
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : -
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 15A
Power - Max : 48W
Switching Energy : 270µJ (on), 86µJ (off)
Input Type : Standard
Gate Charge : 61nC
Td (on/off) @ 25°C : 19ns/128ns
Test Condition : 400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
Packaging : -
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 15A
Power - Max : 48W
Switching Energy : 270µJ (on), 86µJ (off)
Input Type : Standard
Gate Charge : 61nC
Td (on/off) @ 25°C : 19ns/128ns
Test Condition : 400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : ITO-220AB
0
1416 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
