- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGA20S140P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 272W
Switching Energy : -
Input Type : Standard
Gate Charge : 203.5nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 272W
Switching Energy : -
Input Type : Standard
Gate Charge : 203.5nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
391 in stock
FGA25N120ANDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 25A
Power - Max : 310W
Switching Energy : 4.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 60ns/170ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 25A
Power - Max : 310W
Switching Energy : 4.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 60ns/170ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
FGA25N120ANTDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.65V @ 15V, 50A
Power - Max : 312W
Switching Energy : 4.1mJ (on), 960µJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/190ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.65V @ 15V, 50A
Power - Max : 312W
Switching Energy : 4.1mJ (on), 960µJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/190ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock

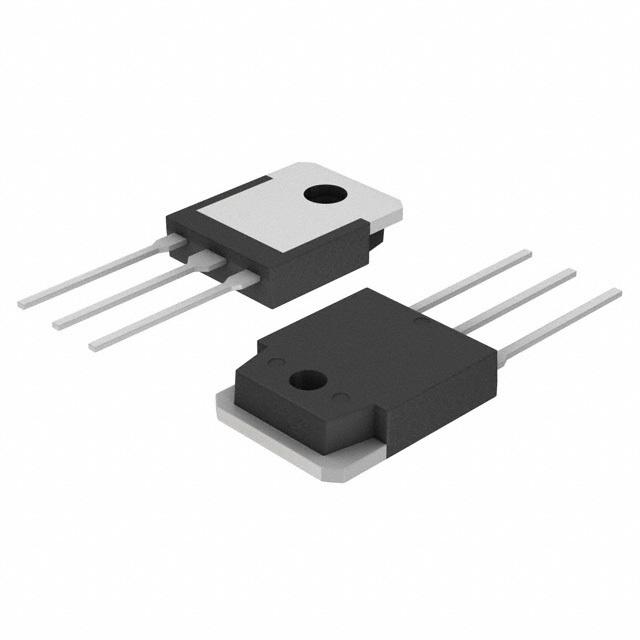

FGA25N120ANTDTU-F109
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.65V @ 15V, 50A
Power - Max : 312W
Switching Energy : 4.1mJ (on), 960µJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/190ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.65V @ 15V, 50A
Power - Max : 312W
Switching Energy : 4.1mJ (on), 960µJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 50ns/190ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 350ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
342 in stock
FGA25N120ANTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 25A
Power - Max : 310W
Switching Energy : 4.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 60ns/170ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 25A
Power - Max : 310W
Switching Energy : 4.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : 60ns/170ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
FGA25N120FTD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 25A
Power - Max : 313W
Switching Energy : 340µJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 48ns/210ns
Test Condition : 600V, 25A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 770ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 25A
Power - Max : 313W
Switching Energy : 340µJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 48ns/210ns
Test Condition : 600V, 25A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 770ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
FGA25S125P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 25A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : 204nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 25A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : 204nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
FGA25S125P-SN00337
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 25A
Power - Max : 250W
Switching Energy : 1.09mJ (on), 580µJ (off)
Input Type : Standard
Gate Charge : 204nC
Td (on/off) @ 25°C : 24ns/502ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 25A
Power - Max : 250W
Switching Energy : 1.09mJ (on), 580µJ (off)
Input Type : Standard
Gate Charge : 204nC
Td (on/off) @ 25°C : 24ns/502ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
161 in stock
FGA3060ADF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 176W
Switching Energy : 960µJ (on), 165µJ (off)
Input Type : Standard
Gate Charge : 37.4nC
Td (on/off) @ 25°C : 12ns/42.4ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 26ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 176W
Switching Energy : 960µJ (on), 165µJ (off)
Input Type : Standard
Gate Charge : 37.4nC
Td (on/off) @ 25°C : 12ns/42.4ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 26ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
368 in stock
FGA30N120FTDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 339W
Switching Energy : -
Input Type : Standard
Gate Charge : 208nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 730ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 339W
Switching Energy : -
Input Type : Standard
Gate Charge : 208nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 730ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
99 in stock
FGA30N60LSDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 30A
Power - Max : 480W
Switching Energy : 1.1mJ (on), 21mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 18ns/250ns
Test Condition : 400V, 30A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 30A
Power - Max : 480W
Switching Energy : 1.1mJ (on), 21mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 18ns/250ns
Test Condition : 400V, 30A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
FGA30N65SMD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 300W
Switching Energy : 716µJ (on), 208µJ (off)
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : 14ns/102ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 30A
Power - Max : 300W
Switching Energy : 716µJ (on), 208µJ (off)
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : 14ns/102ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
308 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
