- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
HGTG12N60C3D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 15A
Power - Max : 104W
Switching Energy : 380µJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 15A
Power - Max : 104W
Switching Energy : 380µJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
52 in stock
HGTG18N120BN
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 165A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 18A
Power - Max : 390W
Switching Energy : 800µJ (on), 1.8mJ (off)
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 23ns/170ns
Test Condition : 960V, 18A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 165A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 18A
Power - Max : 390W
Switching Energy : 800µJ (on), 1.8mJ (off)
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 23ns/170ns
Test Condition : 960V, 18A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
900 in stock

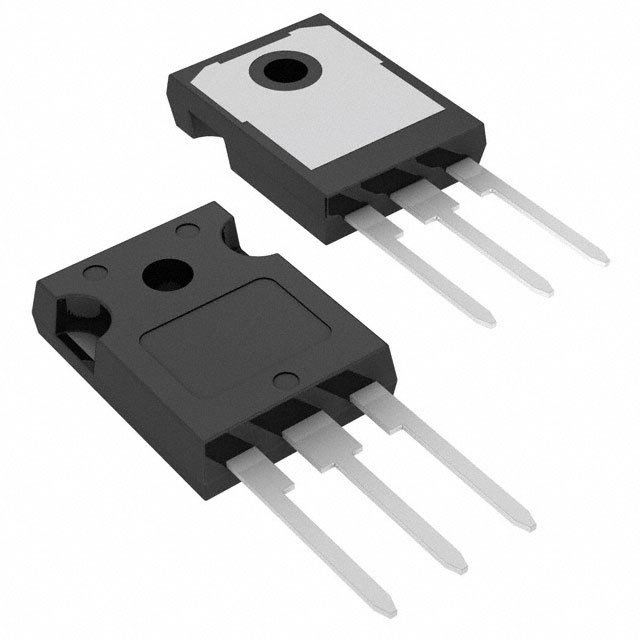

HGTG18N120BND
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 18A
Power - Max : 390W
Switching Energy : 1.9mJ (on), 1.8mJ (off)
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 23ns/170ns
Test Condition : 960V, 18A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 18A
Power - Max : 390W
Switching Energy : 1.9mJ (on), 1.8mJ (off)
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 23ns/170ns
Test Condition : 960V, 18A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
HGTG20N60A4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 280A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 105µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 15ns/73ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 280A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 105µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 15ns/73ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
334 in stock
HGTG20N60A4D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 280A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 105µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 15ns/73ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 280A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 105µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 142nC
Td (on/off) @ 25°C : 15ns/73ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
624 in stock
HGTG20N60B3
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 165W
Switching Energy : 475µJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 165W
Switching Energy : 475µJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
438 in stock
HGTG20N60B3D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 165W
Switching Energy : 475µJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 165W
Switching Energy : 475µJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
HGTG20N60C3D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 164W
Switching Energy : 500µJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 91nC
Td (on/off) @ 25°C : 28ns/151ns
Test Condition : 480V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 164W
Switching Energy : 500µJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 91nC
Td (on/off) @ 25°C : 28ns/151ns
Test Condition : 480V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
HGTG27N120BN
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 72A
Current - Collector Pulsed (Icm) : 216A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 27A
Power - Max : 500W
Switching Energy : 2.2mJ (on), 2.3mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 24ns/195ns
Test Condition : 960V, 27A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 72A
Current - Collector Pulsed (Icm) : 216A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 27A
Power - Max : 500W
Switching Energy : 2.2mJ (on), 2.3mJ (off)
Input Type : Standard
Gate Charge : 270nC
Td (on/off) @ 25°C : 24ns/195ns
Test Condition : 960V, 27A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock
HGTG30N60A4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 463W
Switching Energy : 280µJ (on), 240µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 25ns/150ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 463W
Switching Energy : 280µJ (on), 240µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 25ns/150ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
3552 in stock
HGTG30N60A4D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 463W
Switching Energy : 280µJ (on), 240µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 25ns/150ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 463W
Switching Energy : 280µJ (on), 240µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 25ns/150ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
HGTG30N60B3
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 208W
Switching Energy : 500µJ (on), 680µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 36ns/137ns
Test Condition : 480V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Power - Max : 208W
Switching Energy : 500µJ (on), 680µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : 36ns/137ns
Test Condition : 480V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
429 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
