- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
HGT1S7N60A4DS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 34A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 125W
Switching Energy : 55µJ (on), 60µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 11ns/100ns
Test Condition : 390V, 7A, 25 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 34A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 125W
Switching Energy : 55µJ (on), 60µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 11ns/100ns
Test Condition : 390V, 7A, 25 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
HGT1S7N60C3DS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 60W
Switching Energy : 165µJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 7A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 60W
Switching Energy : 165µJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 7A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
HGT1S7N60C3DS9A
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 60W
Switching Energy : 165µJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 7A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 60W
Switching Energy : 165µJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 7A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock

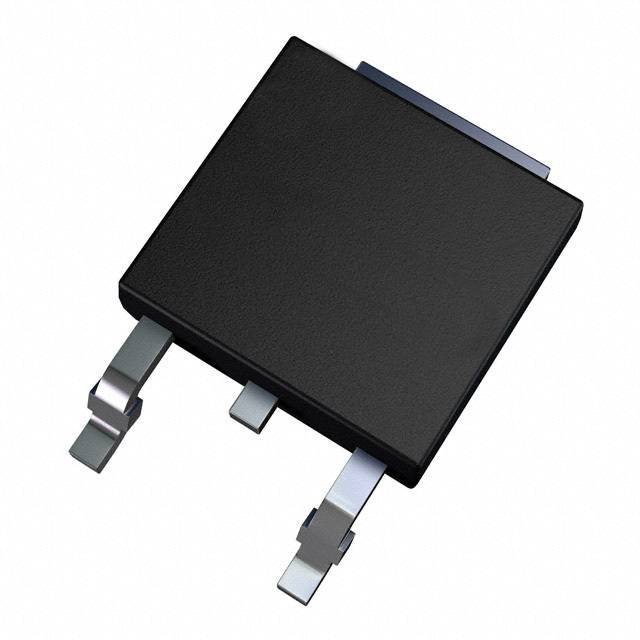

HGTD1N120BNS9A
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 5.3A
Current - Collector Pulsed (Icm) : 6A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 1A
Power - Max : 60W
Switching Energy : 70µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 15ns/67ns
Test Condition : 960V, 1A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 5.3A
Current - Collector Pulsed (Icm) : 6A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 1A
Power - Max : 60W
Switching Energy : 70µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 15ns/67ns
Test Condition : 960V, 1A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
0
4824 in stock
HGTD3N60C3S9A
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 3A
Power - Max : 33W
Switching Energy : 85µJ (on), 245µJ (off)
Input Type : Standard
Gate Charge : 10.8nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 3A
Power - Max : 33W
Switching Energy : 85µJ (on), 245µJ (off)
Input Type : Standard
Gate Charge : 10.8nC
Td (on/off) @ 25°C : -
Test Condition : 480V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
0
100 in stock
HGTD7N60C3S9A
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 60W
Switching Energy : 165µJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 60W
Switching Energy : 165µJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252AA
0
100 in stock
HGTG10N120BND
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 10A
Power - Max : 298W
Switching Energy : 850µJ (on), 800µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 23ns/165ns
Test Condition : 960V, 10A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 10A
Power - Max : 298W
Switching Energy : 850µJ (on), 800µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 23ns/165ns
Test Condition : 960V, 10A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
2 in stock
HGTG11N120CN
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 43A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 11A
Power - Max : 298W
Switching Energy : 400µJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 23ns/180ns
Test Condition : 960V, 11A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 43A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 11A
Power - Max : 298W
Switching Energy : 400µJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 23ns/180ns
Test Condition : 960V, 11A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
HGTG11N120CND
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 43A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 11A
Power - Max : 298W
Switching Energy : 950µJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 23ns/180ns
Test Condition : 960V, 11A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 43A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 11A
Power - Max : 298W
Switching Energy : 950µJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 23ns/180ns
Test Condition : 960V, 11A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
427 in stock
HGTG12N60A4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : 17ns/96ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : 17ns/96ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
HGTG12N60A4D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : 17ns/96ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 54A
Current - Collector Pulsed (Icm) : 96A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : 17ns/96ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
442 in stock
HGTG12N60B3
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 27A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 12A
Power - Max : 104W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 26ns/150ns
Test Condition : 480V, 12A, 25 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 27A
Current - Collector Pulsed (Icm) : 110A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 12A
Power - Max : 104W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 26ns/150ns
Test Condition : 480V, 12A, 25 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
