Part Number
Manufacturer
Description
Unit Price
In Stock
IGW30N60TPXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 53A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 200W
Switching Energy : 710µJ (on), 420µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 15ns/179ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 53A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 200W
Switching Energy : 710µJ (on), 420µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 15ns/179ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
22 in stock
IGW30N65L5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.35V @ 15V, 30A
Power - Max : 227W
Switching Energy : 470µJ (on), 1.35mJ (off)
Input Type : Standard
Gate Charge : 168nC
Td (on/off) @ 25°C : 33ns/308ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.35V @ 15V, 30A
Power - Max : 227W
Switching Energy : 470µJ (on), 1.35mJ (off)
Input Type : Standard
Gate Charge : 168nC
Td (on/off) @ 25°C : 33ns/308ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
240 in stock
IGW40N120H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 483W
Switching Energy : 3.16mJ
Input Type : Standard
Gate Charge : 185nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 483W
Switching Energy : 3.16mJ
Input Type : Standard
Gate Charge : 185nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IGW40N60TPXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 67A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 40A
Power - Max : 246W
Switching Energy : 1.06mJ (on), 610µJ (off)
Input Type : Standard
Gate Charge : 177nC
Td (on/off) @ 25°C : 18ns/222ns
Test Condition : 400V, 40A, 10.1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 67A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 40A
Power - Max : 246W
Switching Energy : 1.06mJ (on), 610µJ (off)
Input Type : Standard
Gate Charge : 177nC
Td (on/off) @ 25°C : 18ns/222ns
Test Condition : 400V, 40A, 10.1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
214 in stock
IGW40N65F5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

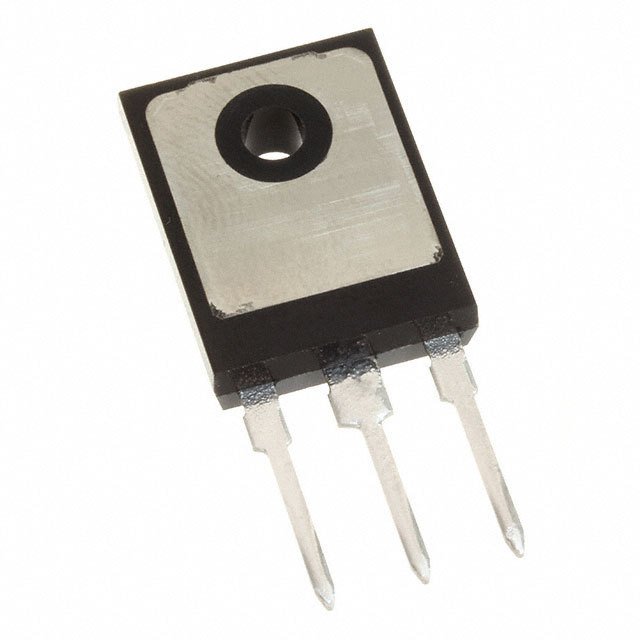

IGW40N65F5FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 360µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/160ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 360µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/160ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
83 in stock
IGW40N65H5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 360µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 92nC
Td (on/off) @ 25°C : 20ns/149ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 360µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 92nC
Td (on/off) @ 25°C : 20ns/149ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IGW40N65H5FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 390µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 22ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 390µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 22ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
97 in stock

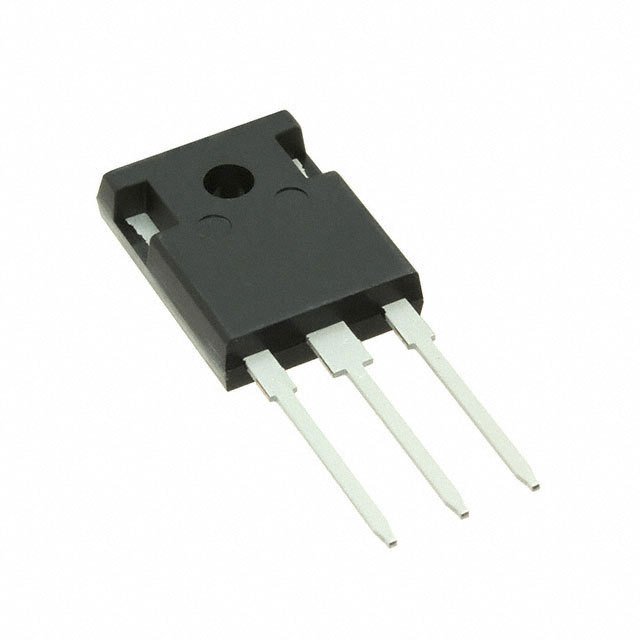

IGW40T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 270W
Switching Energy : 6.5mJ
Input Type : Standard
Gate Charge : 203nC
Td (on/off) @ 25°C : 48ns/480ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 270W
Switching Energy : 6.5mJ
Input Type : Standard
Gate Charge : 203nC
Td (on/off) @ 25°C : 48ns/480ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
224 in stock
IGW50N60H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.36mJ
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 23ns/235ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.36mJ
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 23ns/235ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
272 in stock
IGW50N60TPXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 319.2W
Switching Energy : 1.53mJ (on), 850µJ (off)
Input Type : Standard
Gate Charge : 249nC
Td (on/off) @ 25°C : 20ns/215ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 319.2W
Switching Energy : 1.53mJ (on), 850µJ (off)
Input Type : Standard
Gate Charge : 249nC
Td (on/off) @ 25°C : 20ns/215ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IGW50N65F5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 108nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 108nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
