- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IHW15N120R2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 15A
Power - Max : 357W
Switching Energy : 900µJ (off)
Input Type : Standard
Gate Charge : 133nC
Td (on/off) @ 25°C : -/282ns
Test Condition : 600V, 15A, 14.8 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 15A
Power - Max : 357W
Switching Energy : 900µJ (off)
Input Type : Standard
Gate Charge : 133nC
Td (on/off) @ 25°C : -/282ns
Test Condition : 600V, 15A, 14.8 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

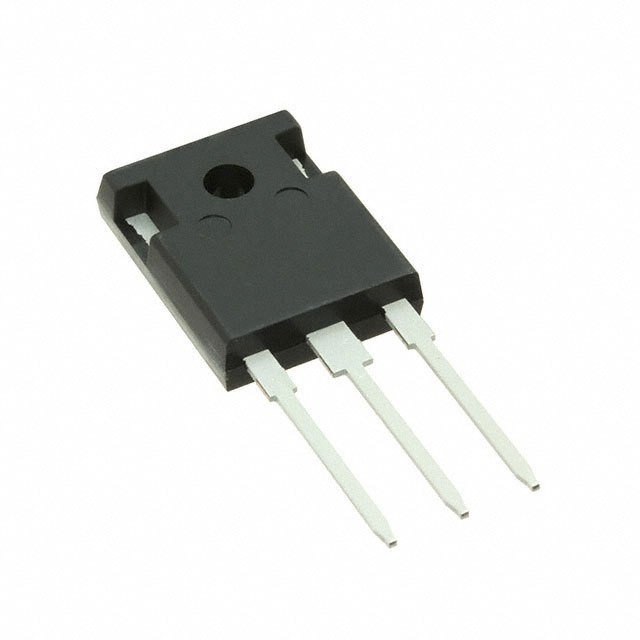

IHW15T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 15A
Power - Max : 113W
Switching Energy : 2.7mJ
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 50ns/520ns
Test Condition : 600V, 15A, 56 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 15A
Power - Max : 113W
Switching Energy : 2.7mJ
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 50ns/520ns
Test Condition : 600V, 15A, 56 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW20N120R2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 20A
Power - Max : 330W
Switching Energy : 1.2mJ (off)
Input Type : Standard
Gate Charge : 143nC
Td (on/off) @ 25°C : -/359ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 20A
Power - Max : 330W
Switching Energy : 1.2mJ (off)
Input Type : Standard
Gate Charge : 143nC
Td (on/off) @ 25°C : -/359ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW20N120R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 310W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 211nC
Td (on/off) @ 25°C : -/387ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 310W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 211nC
Td (on/off) @ 25°C : -/387ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

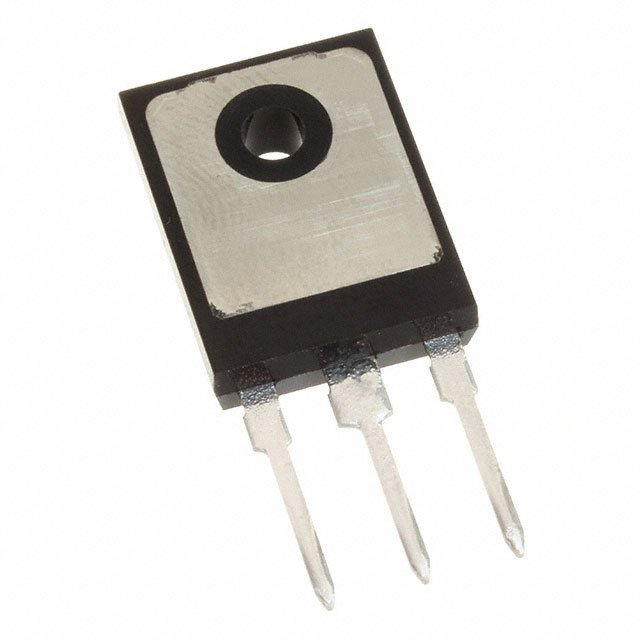

IHW20N120R5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 20A
Power - Max : 288W
Switching Energy : 750µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : -/260ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 20A
Power - Max : 288W
Switching Energy : 750µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : -/260ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW20N135R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 310W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : -/335ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 310W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : -/335ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW20N135R5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 20A
Power - Max : 288W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : -/235ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 20A
Power - Max : 288W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 170nC
Td (on/off) @ 25°C : -/235ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
73 in stock
IHW20N65R5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 150W
Switching Energy : 300µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 24ns/250ns
Test Condition : 400V, 10A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 150W
Switching Energy : 300µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 24ns/250ns
Test Condition : 400V, 10A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
225 in stock
IHW20T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 178W
Switching Energy : 1.8mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 50ns/560ns
Test Condition : 600V, 20A, 28 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 178W
Switching Energy : 1.8mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 50ns/560ns
Test Condition : 600V, 20A, 28 Ohm, 15V
Reverse Recovery Time (trr) : 140ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW25N120E1XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 25A
Power - Max : 231W
Switching Energy : 800µJ (off)
Input Type : Standard
Gate Charge : 147nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 25A
Power - Max : 231W
Switching Energy : 800µJ (off)
Input Type : Standard
Gate Charge : 147nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW25N120R2FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 25A
Power - Max : 365W
Switching Energy : 1.59mJ
Input Type : Standard
Gate Charge : 60.7nC
Td (on/off) @ 25°C : -/324ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 25A
Power - Max : 365W
Switching Energy : 1.59mJ
Input Type : Standard
Gate Charge : 60.7nC
Td (on/off) @ 25°C : -/324ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
74 in stock
IHW30N100R
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 412W
Switching Energy : 2.1mJ (off)
Input Type : Standard
Gate Charge : 209nC
Td (on/off) @ 25°C : -/846ns
Test Condition : 600V, 30A, 26 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 412W
Switching Energy : 2.1mJ (off)
Input Type : Standard
Gate Charge : 209nC
Td (on/off) @ 25°C : -/846ns
Test Condition : 600V, 30A, 26 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
