Part Number
Manufacturer
Description
Unit Price
In Stock
IHW30N100TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 412W
Switching Energy : 1.6mJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 35ns/546ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 412W
Switching Energy : 1.6mJ (off)
Input Type : Standard
Gate Charge : 217nC
Td (on/off) @ 25°C : 35ns/546ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW30N110R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1100V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 30A
Power - Max : 333W
Switching Energy : 1.15mJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : -/350ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1100V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 30A
Power - Max : 333W
Switching Energy : 1.15mJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : -/350ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
228 in stock
IHW30N120R2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 390W
Switching Energy : 3.1mJ
Input Type : Standard
Gate Charge : 198nC
Td (on/off) @ 25°C : -/792ns
Test Condition : 600V, 30A, 28 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 390W
Switching Energy : 3.1mJ
Input Type : Standard
Gate Charge : 198nC
Td (on/off) @ 25°C : -/792ns
Test Condition : 600V, 30A, 28 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW30N120R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 30A
Power - Max : 349W
Switching Energy : 1.47mJ (off)
Input Type : Standard
Gate Charge : 263nC
Td (on/off) @ 25°C : -/326ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 30A
Power - Max : 349W
Switching Energy : 1.47mJ (off)
Input Type : Standard
Gate Charge : 263nC
Td (on/off) @ 25°C : -/326ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
IHW30N135R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 30A
Power - Max : 349W
Switching Energy : 1.93mJ (off)
Input Type : Standard
Gate Charge : 263nC
Td (on/off) @ 25°C : -/337ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 30A
Power - Max : 349W
Switching Energy : 1.93mJ (off)
Input Type : Standard
Gate Charge : 263nC
Td (on/off) @ 25°C : -/337ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW30N160R2FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 312W
Switching Energy : 4.37mJ
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : -/525ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 312W
Switching Energy : 4.37mJ
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : -/525ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

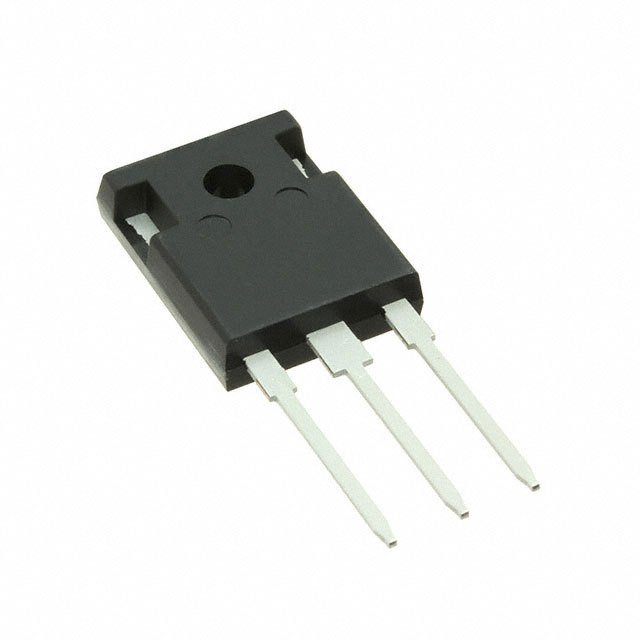

IHW30N60TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 187W
Switching Energy : 770µJ
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 23ns/254ns
Test Condition : 400V, 30A, 10.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 187W
Switching Energy : 770µJ
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 23ns/254ns
Test Condition : 400V, 30A, 10.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW30N65R5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 176W
Switching Energy : 850µJ (on), 240µJ (off)
Input Type : Standard
Gate Charge : 153nC
Td (on/off) @ 25°C : 29ns/220ns
Test Condition : 400V, 30A, 13 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 176W
Switching Energy : 850µJ (on), 240µJ (off)
Input Type : Standard
Gate Charge : 153nC
Td (on/off) @ 25°C : 29ns/220ns
Test Condition : 400V, 30A, 13 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
205 in stock
IHW30N90R
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 454W
Switching Energy : 1.46mJ
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : -/511ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 454W
Switching Energy : 1.46mJ
Input Type : Standard
Gate Charge : 200nC
Td (on/off) @ 25°C : -/511ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IHW30N90TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 428W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 280nC
Td (on/off) @ 25°C : 45ns/556ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 428W
Switching Energy : 1.8mJ (off)
Input Type : Standard
Gate Charge : 280nC
Td (on/off) @ 25°C : 45ns/556ns
Test Condition : 600V, 30A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

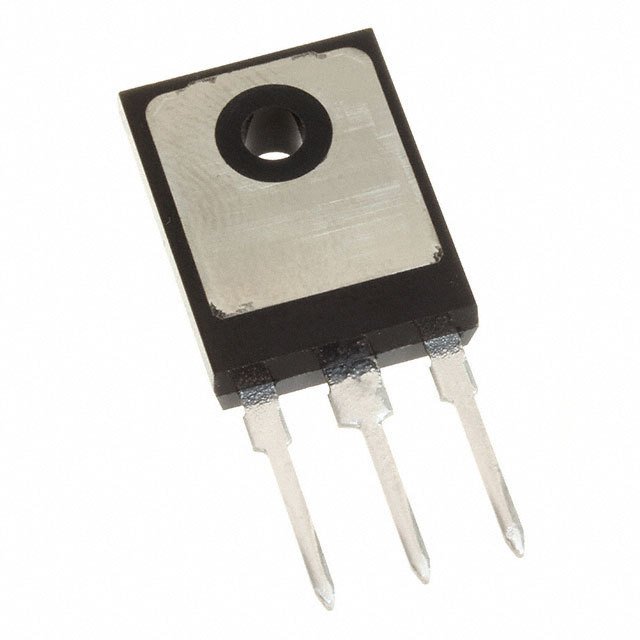

IHW40N120R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 40A
Power - Max : 429W
Switching Energy : 2.02mJ (off)
Input Type : Standard
Gate Charge : 335nC
Td (on/off) @ 25°C : -/336ns
Test Condition : 600V, 40A, 7.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 40A
Power - Max : 429W
Switching Energy : 2.02mJ (off)
Input Type : Standard
Gate Charge : 335nC
Td (on/off) @ 25°C : -/336ns
Test Condition : 600V, 40A, 7.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
2354 in stock
IHW40N135R3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 40A
Power - Max : 429W
Switching Energy : 2.5mJ (off)
Input Type : Standard
Gate Charge : 365nC
Td (on/off) @ 25°C : -/343ns
Test Condition : 600V, 40A, 7.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 40A
Power - Max : 429W
Switching Energy : 2.5mJ (off)
Input Type : Standard
Gate Charge : 365nC
Td (on/off) @ 25°C : -/343ns
Test Condition : 600V, 40A, 7.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
