Part Number
Manufacturer
Description
Unit Price
In Stock
IHW40N60RFFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 305W
Switching Energy : 560µJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : -/175ns
Test Condition : 400V, 40A, 5.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 305W
Switching Energy : 560µJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : -/175ns
Test Condition : 400V, 40A, 5.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
387 in stock
IHW40N60RFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 40A
Power - Max : 305W
Switching Energy : 750µJ (off)
Input Type : Standard
Gate Charge : 223nC
Td (on/off) @ 25°C : -/193ns
Test Condition : 400V, 40A, 5.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 40A
Power - Max : 305W
Switching Energy : 750µJ (off)
Input Type : Standard
Gate Charge : 223nC
Td (on/off) @ 25°C : -/193ns
Test Condition : 400V, 40A, 5.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
72 in stock
IHW40N65R5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 230W
Switching Energy : 630µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 193nC
Td (on/off) @ 25°C : 30ns/258ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 230W
Switching Energy : 630µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 193nC
Td (on/off) @ 25°C : 30ns/258ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
242 in stock
IHW40T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 270W
Switching Energy : 6.5mJ
Input Type : Standard
Gate Charge : 203nC
Td (on/off) @ 25°C : 48ns/480ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 270W
Switching Energy : 6.5mJ
Input Type : Standard
Gate Charge : 203nC
Td (on/off) @ 25°C : 48ns/480ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

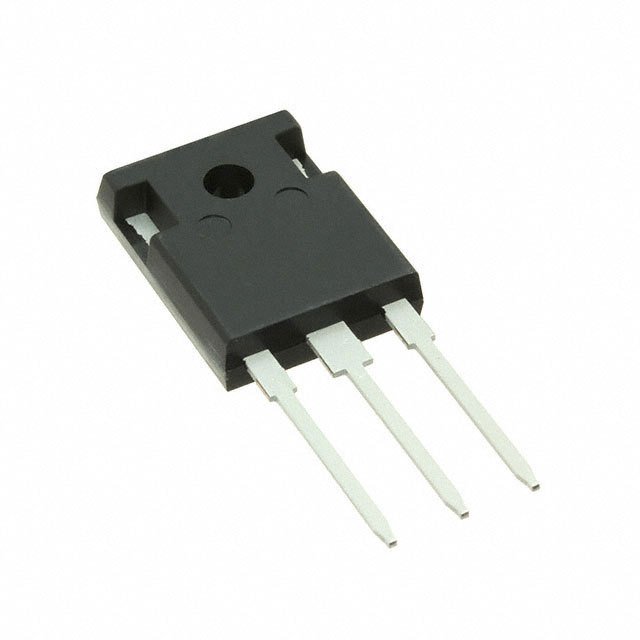

IHW40T60FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 40A
Power - Max : 303W
Switching Energy : 920µJ
Input Type : Standard
Gate Charge : 215nC
Td (on/off) @ 25°C : -/186ns
Test Condition : 400V, 40A, 5.6 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 40A
Power - Max : 303W
Switching Energy : 920µJ
Input Type : Standard
Gate Charge : 215nC
Td (on/off) @ 25°C : -/186ns
Test Condition : 400V, 40A, 5.6 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

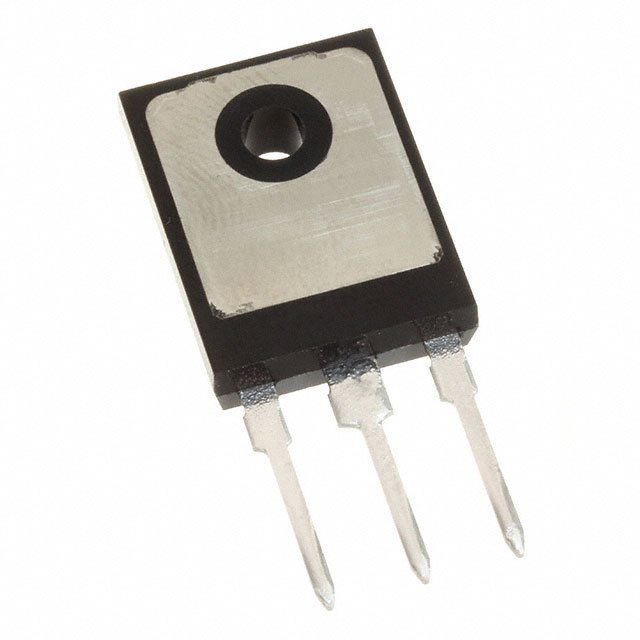

IHW50N65R5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 282W
Switching Energy : 740µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 230nC
Td (on/off) @ 25°C : 26ns/220ns
Test Condition : 400V, 25A, 8 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 282W
Switching Energy : 740µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 230nC
Td (on/off) @ 25°C : 26ns/220ns
Test Condition : 400V, 25A, 8 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
180 in stock
IHY15N120R3XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 15A
Power - Max : 254W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : -/300ns
Test Condition : 600V, 15A, 14.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 15A
Power - Max : 254W
Switching Energy : 700µJ (off)
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : -/300ns
Test Condition : 600V, 15A, 14.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
0
100 in stock
IHY20N120R3XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 310W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 211nC
Td (on/off) @ 25°C : -/387ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 20A
Power - Max : 310W
Switching Energy : 950µJ (off)
Input Type : Standard
Gate Charge : 211nC
Td (on/off) @ 25°C : -/387ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
0
100 in stock
IHY20N135R3XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 310W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : -/335ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 310W
Switching Energy : 1.3mJ (off)
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : -/335ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
0
100 in stock
IHY30N160R2XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 312W
Switching Energy : 2.53mJ
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : -/525ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 312W
Switching Energy : 2.53mJ
Input Type : Standard
Gate Charge : 94nC
Td (on/off) @ 25°C : -/525ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3 Variant
Supplier Device Package : PG-TO247HC-3
0
100 in stock
IKA03N120H2XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 8.2A
Current - Collector Pulsed (Icm) : 9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 29W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 8.6nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 52ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 8.2A
Current - Collector Pulsed (Icm) : 9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 29W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 8.6nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 52ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3
0
100 in stock
IKA08N65ET6XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 11A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 5A
Power - Max : 33W
Switching Energy : 110µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 17nC
Td (on/off) @ 25°C : 20ns/59ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3 Full Pack
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 11A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 5A
Power - Max : 33W
Switching Energy : 110µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 17nC
Td (on/off) @ 25°C : 20ns/59ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3 Full Pack
0
470 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
