Part Number
Manufacturer
Description
Unit Price
In Stock
IKB40N65EF5ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™5
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 420µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 22ns/160ns
Test Condition : 400V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 83ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™5
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 420µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 22ns/160ns
Test Condition : 400V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 83ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
100 in stock
IKB40N65EH5ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™5
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 1.1mJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 20ns/157ns
Test Condition : 400V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 78ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™5
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 1.1mJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 20ns/157ns
Test Condition : 400V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 78ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
1000 in stock
IKB40N65ES5ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™5
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 79A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.74V @ 15V, 40A
Power - Max : 230W
Switching Energy : 860µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/130ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™5
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 79A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.74V @ 15V, 40A
Power - Max : 230W
Switching Energy : 860µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/130ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
1000 in stock
IKD03N60RF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 5A
Current - Collector Pulsed (Icm) : 7.5A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 2.5A
Power - Max : 53.6W
Switching Energy : 90µJ
Input Type : Standard
Gate Charge : 17.1nC
Td (on/off) @ 25°C : 10ns/128ns
Test Condition : 400V, 2.5A, 68 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 5A
Current - Collector Pulsed (Icm) : 7.5A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 2.5A
Power - Max : 53.6W
Switching Energy : 90µJ
Input Type : Standard
Gate Charge : 17.1nC
Td (on/off) @ 25°C : 10ns/128ns
Test Condition : 400V, 2.5A, 68 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD03N60RFAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 5A
Current - Collector Pulsed (Icm) : 7.5A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 2.5A
Power - Max : 53.6W
Switching Energy : 50µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 17.1nC
Td (on/off) @ 25°C : 10ns/128ns
Test Condition : 400V, 2.5A, 68 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 5A
Current - Collector Pulsed (Icm) : 7.5A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 2.5A
Power - Max : 53.6W
Switching Energy : 50µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 17.1nC
Td (on/off) @ 25°C : 10ns/128ns
Test Condition : 400V, 2.5A, 68 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD03N60RFATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6.5A
Current - Collector Pulsed (Icm) : 7.5A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 2.5A
Power - Max : 53.6W
Switching Energy : 50µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 17.1nC
Td (on/off) @ 25°C : 10ns/128ns
Test Condition : 400V, 2.5A, 68 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6.5A
Current - Collector Pulsed (Icm) : 7.5A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 2.5A
Power - Max : 53.6W
Switching Energy : 50µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 17.1nC
Td (on/off) @ 25°C : 10ns/128ns
Test Condition : 400V, 2.5A, 68 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
2305 in stock
IKD04N60R
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 240µJ
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 240µJ
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock

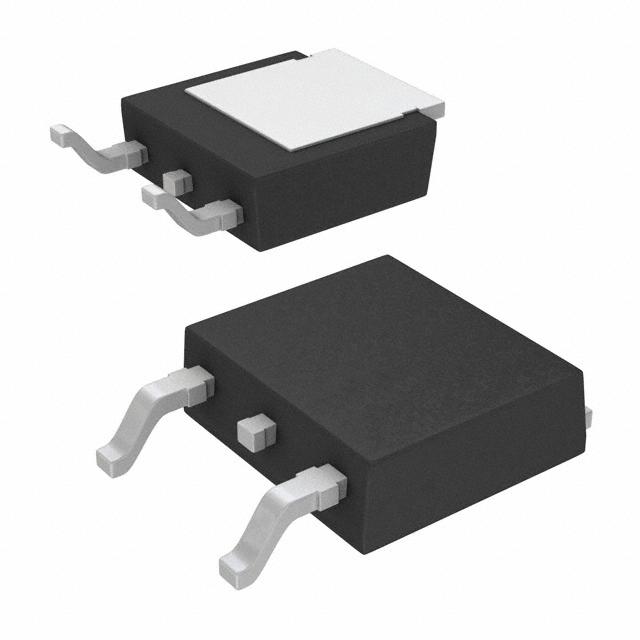

IKD04N60RAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 90µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 90µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD04N60RATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 90µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 90µJ (on), 150µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
2344 in stock
IKD04N60RF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A
Power - Max : 75W
Switching Energy : 110µJ
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 12ns/116ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A
Power - Max : 75W
Switching Energy : 110µJ
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 12ns/116ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD04N60RFAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A
Power - Max : 75W
Switching Energy : 60µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 12ns/116ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A
Power - Max : 75W
Switching Energy : 60µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 12ns/116ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD04N60RFATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A
Power - Max : 75W
Switching Energy : 60µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 12ns/116ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 4A
Power - Max : 75W
Switching Energy : 60µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 12ns/116ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
2458 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
