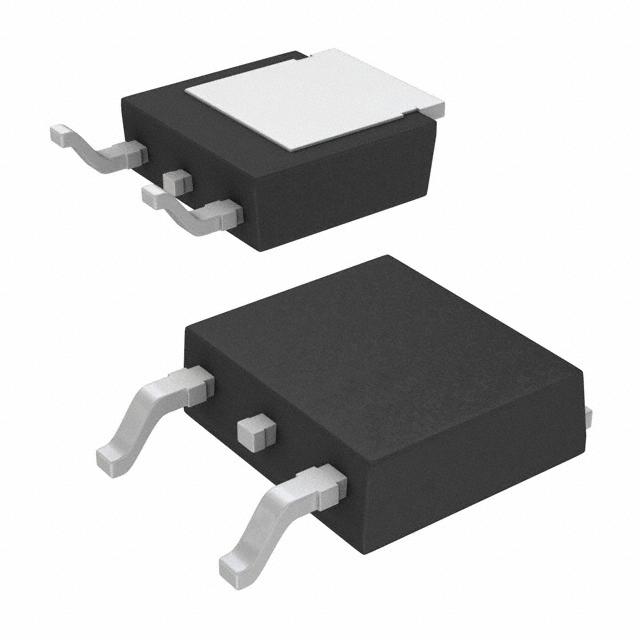

IKD06N60R
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 330µJ
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 330µJ
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD06N60RAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 110µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 110µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD06N60RAATMA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : -
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : -
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD06N60RATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 110µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 110µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
2297 in stock
IKD06N60RFAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 6A
Power - Max : 100W
Switching Energy : 90µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 8ns/105ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 6A
Power - Max : 100W
Switching Energy : 90µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 8ns/105ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD06N60RFATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 6A
Power - Max : 100W
Switching Energy : 90µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 7ns/106ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 6A
Power - Max : 100W
Switching Energy : 90µJ (on), 90µJ (off)
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 7ns/106ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
3181 in stock
IKD10N60R
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : 590µJ
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : 590µJ
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD10N60RAATMA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : -
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : -
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD10N60RATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : 210µJ (on), 380µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : 210µJ (on), 380µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
2470 in stock
IKD10N60RFAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 150W
Switching Energy : 190µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 12ns/168ns
Test Condition : 400V, 10A, 26 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 150W
Switching Energy : 190µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 12ns/168ns
Test Condition : 400V, 10A, 26 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
IKD10N60RFATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 150W
Switching Energy : 190µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 12ns/168ns
Test Condition : 400V, 10A, 26 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 150W
Switching Energy : 190µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 12ns/168ns
Test Condition : 400V, 10A, 26 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
2053 in stock
IKD15N60R
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 250W
Switching Energy : 900µJ
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : 16ns/183ns
Test Condition : 400V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 250W
Switching Energy : 900µJ
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : 16ns/183ns
Test Condition : 400V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
