Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IKA08N65F5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10.8A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 8A
Power - Max : 31.2W
Switching Energy : 70µJ (on), 20µJ (off)
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 10ns/116ns
Test Condition : 400V, 4A, 48 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO-220-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10.8A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 8A
Power - Max : 31.2W
Switching Energy : 70µJ (on), 20µJ (off)
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 10ns/116ns
Test Condition : 400V, 4A, 48 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO-220-3
0
416 in stock
IKA08N65H5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10.8A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 8A
Power - Max : 31.2W
Switching Energy : 70µJ (on), 30µJ (off)
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 11ns/115ns
Test Condition : 400V, 4A, 48 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10.8A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 8A
Power - Max : 31.2W
Switching Energy : 70µJ (on), 30µJ (off)
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 11ns/115ns
Test Condition : 400V, 4A, 48 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
0
400 in stock
IKA10N60TXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 11.7A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 10A
Power - Max : 30W
Switching Energy : 430µJ
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 12ns/215ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 11.7A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 10A
Power - Max : 30W
Switching Energy : 430µJ
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 12ns/215ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3
0
469 in stock

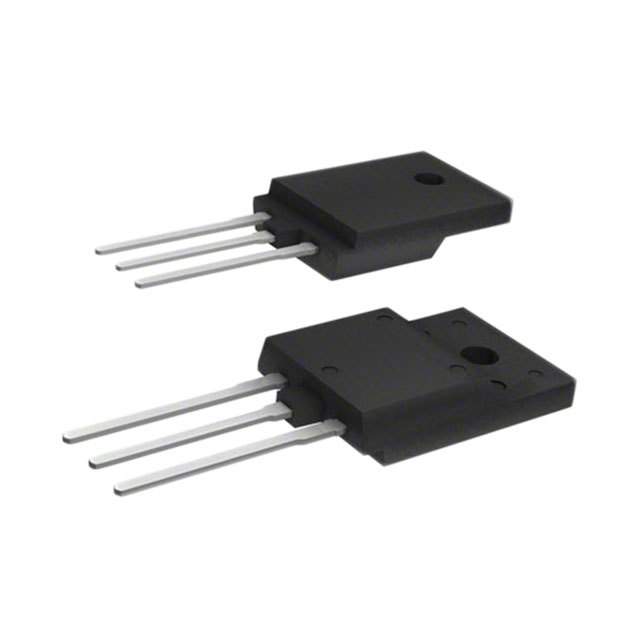

IKA10N65ET6XKSA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 42.5A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 8.5A
Power - Max : 40W
Switching Energy : 200µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 30ns/106ns
Test Condition : 400V, 8.5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 51ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3 Full Pack
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 42.5A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 8.5A
Power - Max : 40W
Switching Energy : 200µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 30ns/106ns
Test Condition : 400V, 8.5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 51ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3 Full Pack
0
390 in stock
IKA15N60TXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14.7A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 15A
Power - Max : 35.7W
Switching Energy : 570µJ
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : 17ns/188ns
Test Condition : 400V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14.7A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 15A
Power - Max : 35.7W
Switching Energy : 570µJ
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : 17ns/188ns
Test Condition : 400V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3
0
366 in stock
IKA15N65ET6XKSA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 17A
Current - Collector Pulsed (Icm) : 57.5A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 11.5A
Power - Max : 45W
Switching Energy : 230µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 30ns/117ns
Test Condition : 400V, 11.5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 69ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3 Full Pack
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 17A
Current - Collector Pulsed (Icm) : 57.5A
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 11.5A
Power - Max : 45W
Switching Energy : 230µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 30ns/117ns
Test Condition : 400V, 11.5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 69ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO220-3 Full Pack
0
100 in stock
IKA15N65F5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 33.3W
Switching Energy : 130µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 38nC
Td (on/off) @ 25°C : 17ns/150ns
Test Condition : 400V, 7.5A, 39 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO-220-FP
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 33.3W
Switching Energy : 130µJ (on), 40µJ (off)
Input Type : Standard
Gate Charge : 38nC
Td (on/off) @ 25°C : 17ns/150ns
Test Condition : 400V, 7.5A, 39 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : PG-TO-220-FP
0
403 in stock
IKA15N65H5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 33.3W
Switching Energy : 120µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 38nC
Td (on/off) @ 25°C : 17ns/160ns
Test Condition : 400V, 7.5A, 39 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 33.3W
Switching Energy : 120µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 38nC
Td (on/off) @ 25°C : 17ns/160ns
Test Condition : 400V, 7.5A, 39 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
0
464 in stock
IKB03N120H2ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 9.6A
Current - Collector Pulsed (Icm) : 9.9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3-2
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 9.6A
Current - Collector Pulsed (Icm) : 9.9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3-2
0
100 in stock
IKB06N60TATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 6A
Power - Max : 88W
Switching Energy : 200µJ
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 9ns/130ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 123ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO-263
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 6A
Power - Max : 88W
Switching Energy : 200µJ
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 9ns/130ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 123ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO-263
0
216 in stock
IKB10N60TATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 10A
Power - Max : 110W
Switching Energy : 430µJ
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 12ns/215ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO-263
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 10A
Power - Max : 110W
Switching Energy : 430µJ
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 12ns/215ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO-263
0
558 in stock
IKB20N60TAATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 20A
Power - Max : 156W
Switching Energy : 310µJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 18ns/199ns
Test Condition : 600V, 20A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK (TO-263AB)
Packaging : Tape & Reel (TR)
Series : TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 20A
Power - Max : 156W
Switching Energy : 310µJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 18ns/199ns
Test Condition : 600V, 20A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK (TO-263AB)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
