- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IRG4BC10K
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.62V @ 15V, 5A
Power - Max : 38W
Switching Energy : 160µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 11ns/51ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.62V @ 15V, 5A
Power - Max : 38W
Switching Energy : 160µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 11ns/51ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10KDPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.62V @ 15V, 5A
Power - Max : 38W
Switching Energy : 250µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 49ns/97ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.62V @ 15V, 5A
Power - Max : 38W
Switching Energy : 250µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 49ns/97ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10KPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.62V @ 15V, 5A
Power - Max : 38W
Switching Energy : 160µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 11ns/51ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.62V @ 15V, 5A
Power - Max : 38W
Switching Energy : 160µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 11ns/51ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 140µJ (on), 2.58mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 25ns/630ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 140µJ (on), 2.58mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 25ns/630ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10SD
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10SD-L
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
0
100 in stock

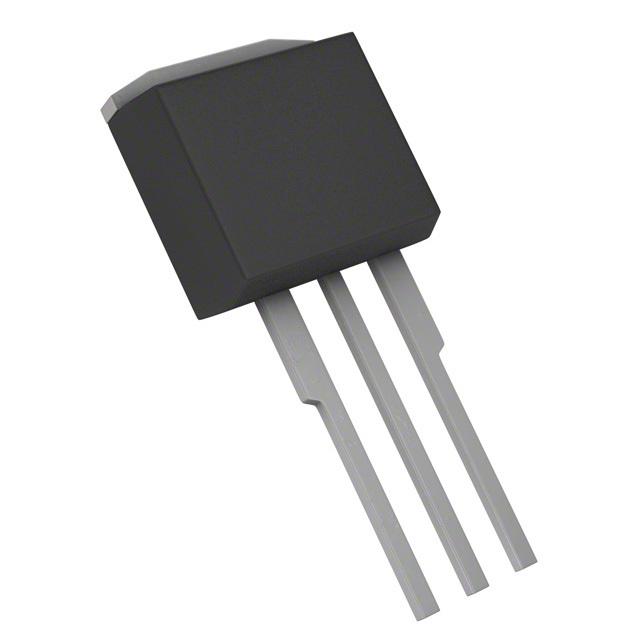

IRG4BC10SD-LPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : TO-262
0
100 in stock
IRG4BC10SDPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10SD-S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC10SD-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 310µJ (on), 3.28mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 76ns/815ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC10SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 140µJ (on), 2.58mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 25ns/630ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 8A
Power - Max : 38W
Switching Energy : 140µJ (on), 2.58mJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 25ns/630ns
Test Condition : 480V, 8A, 100 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC10UDPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8.5A
Current - Collector Pulsed (Icm) : 34A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 5A
Power - Max : 38W
Switching Energy : 140µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 40ns/87ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8.5A
Current - Collector Pulsed (Icm) : 34A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 5A
Power - Max : 38W
Switching Energy : 140µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 15nC
Td (on/off) @ 25°C : 40ns/87ns
Test Condition : 480V, 5A, 100 Ohm, 15V
Reverse Recovery Time (trr) : 28ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
322 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
