Part Number
Manufacturer
Description
Unit Price
In Stock
IKW50N65ES5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 274W
Switching Energy : 1.23mJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 20ns/127ns
Test Condition : 400V, 50A, 8.2 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 274W
Switching Energy : 1.23mJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 20ns/127ns
Test Condition : 400V, 50A, 8.2 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW50N65F5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 108nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 77ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 108nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 77ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

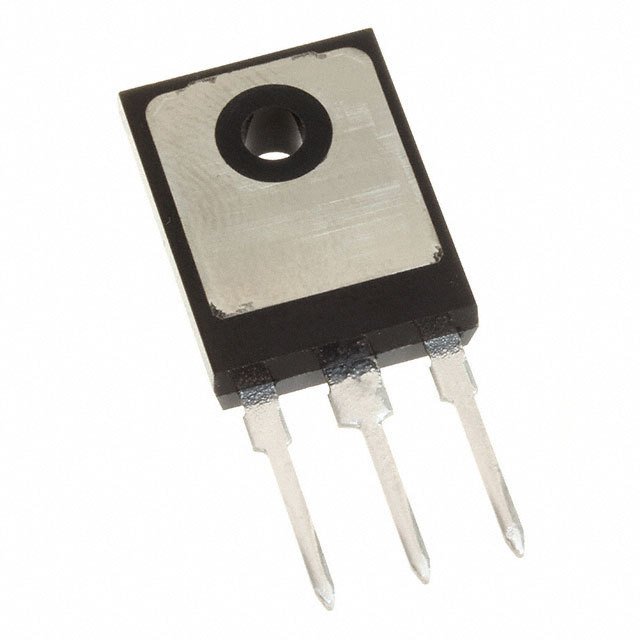

IKW50N65F5FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 305W
Switching Energy : 490µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 21ns/175ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 52ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 305W
Switching Energy : 490µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 21ns/175ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 52ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
120 in stock
IKW50N65H5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 450µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 21ns/173ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop?br/>Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 450µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 21ns/173ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 58ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW50N65H5FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 305W
Switching Energy : 520µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 21ns/180ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 57ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 305W
Switching Energy : 520µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 21ns/180ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 57ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
480 in stock
IKW50N65WR5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 282W
Switching Energy : 840µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 230nC
Td (on/off) @ 25°C : 45ns/417ns
Test Condition : 400V, 25A, 16 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 282W
Switching Energy : 840µJ (on), 220µJ (off)
Input Type : Standard
Gate Charge : 230nC
Td (on/off) @ 25°C : 45ns/417ns
Test Condition : 400V, 25A, 16 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
198 in stock
IKW75N60H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 428W
Switching Energy : 3mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 31ns/265ns
Test Condition : 400V, 75A, 5.2 Ohm, 15V
Reverse Recovery Time (trr) : 190ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 428W
Switching Energy : 3mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 31ns/265ns
Test Condition : 400V, 75A, 5.2 Ohm, 15V
Reverse Recovery Time (trr) : 190ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW75N60TAFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 75A
Power - Max : 428W
Switching Energy : 4.5mJ
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 33ns/330ns
Test Condition : 400V, 75A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 121ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 75A
Power - Max : 428W
Switching Energy : 4.5mJ
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 33ns/330ns
Test Condition : 400V, 75A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 121ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock

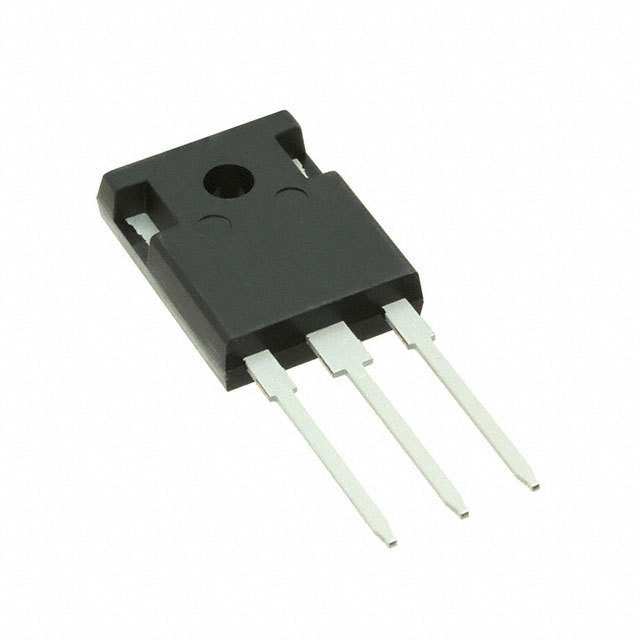

IKW75N60TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 75A
Power - Max : 428W
Switching Energy : 4.5mJ
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 33ns/330ns
Test Condition : 400V, 75A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 121ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 75A
Power - Max : 428W
Switching Energy : 4.5mJ
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 33ns/330ns
Test Condition : 400V, 75A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 121ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
6703 in stock
IKW75N65EH5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 395W
Switching Energy : 2.3mJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 28ns/174ns
Test Condition : 400V, 75A, 8 Ohm, 15V
Reverse Recovery Time (trr) : 92ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 395W
Switching Energy : 2.3mJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 160nC
Td (on/off) @ 25°C : 28ns/174ns
Test Condition : 400V, 75A, 8 Ohm, 15V
Reverse Recovery Time (trr) : 92ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
470 in stock
IKW75N65EL5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.35V @ 15V, 75A
Power - Max : 536W
Switching Energy : 1.61mJ (on), 3.2mJ (off)
Input Type : Standard
Gate Charge : 436nC
Td (on/off) @ 25°C : 40ns/275ns
Test Condition : 400V, 75A, 4 Ohm, 15V
Reverse Recovery Time (trr) : 114ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.35V @ 15V, 75A
Power - Max : 536W
Switching Energy : 1.61mJ (on), 3.2mJ (off)
Input Type : Standard
Gate Charge : 436nC
Td (on/off) @ 25°C : 40ns/275ns
Test Condition : 400V, 75A, 4 Ohm, 15V
Reverse Recovery Time (trr) : 114ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
1440 in stock
IKW75N65ES5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 75A
Power - Max : 395W
Switching Energy : 2.4mJ (on), 950µJ (off)
Input Type : Standard
Gate Charge : 164nC
Td (on/off) @ 25°C : 40ns/144ns
Test Condition : 400V, 75A, 18 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 75A
Power - Max : 395W
Switching Energy : 2.4mJ (on), 950µJ (off)
Input Type : Standard
Gate Charge : 164nC
Td (on/off) @ 25°C : 40ns/144ns
Test Condition : 400V, 75A, 18 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
