Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IKW40N65ES5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 79A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 230W
Switching Energy : 860µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/130ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 79A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 40A
Power - Max : 230W
Switching Energy : 860µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/130ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
240 in stock

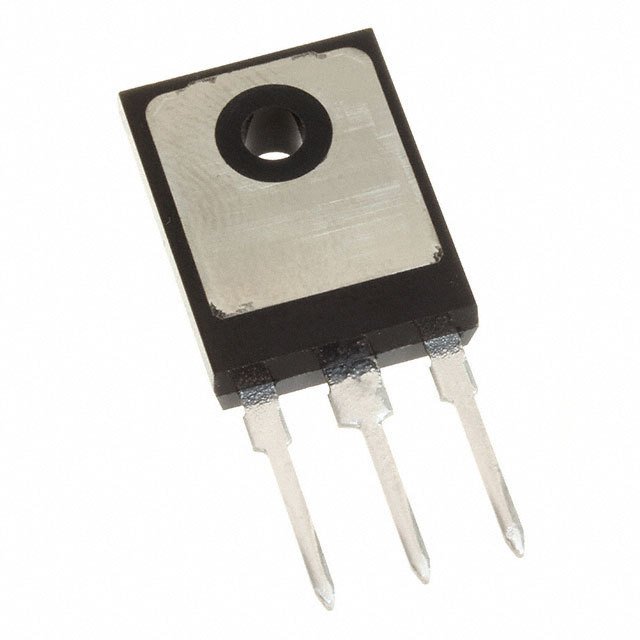

IKW40N65F5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 73ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW40N65F5FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 360µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/160ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 360µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/160ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
240 in stock
IKW40N65H5AXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 380µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 92nC
Td (on/off) @ 25°C : 20ns/153ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 380µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 92nC
Td (on/off) @ 25°C : 20ns/153ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW40N65H5FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 390µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 22ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 255W
Switching Energy : 390µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 22ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
270 in stock
IKW40N65WR5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 40A
Power - Max : 230W
Switching Energy : 770µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 193nC
Td (on/off) @ 25°C : 42ns/432ns
Test Condition : 400V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 112ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 40A
Power - Max : 230W
Switching Energy : 770µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 193nC
Td (on/off) @ 25°C : 42ns/432ns
Test Condition : 400V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 112ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
74 in stock
IKW40T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 270W
Switching Energy : 6.5mJ
Input Type : Standard
Gate Charge : 203nC
Td (on/off) @ 25°C : 48ns/480ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 270W
Switching Energy : 6.5mJ
Input Type : Standard
Gate Charge : 203nC
Td (on/off) @ 25°C : 48ns/480ns
Test Condition : 600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 240ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW50N60DTPXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 319.2W
Switching Energy : 1.53mJ (on), 850µJ (off)
Input Type : Standard
Gate Charge : 249nC
Td (on/off) @ 25°C : 20ns/215ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 319.2W
Switching Energy : 1.53mJ (on), 850µJ (off)
Input Type : Standard
Gate Charge : 249nC
Td (on/off) @ 25°C : 20ns/215ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 115ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
236 in stock
IKW50N60H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.36mJ
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 23ns/235ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.36mJ
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 23ns/235ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
2160 in stock
IKW50N60TAFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.6mJ
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.6mJ
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
12 in stock
IKW50N60TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.6mJ
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.6mJ
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
31 in stock
IKW50N65EH5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 275W
Switching Energy : 1.5mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/172ns
Test Condition : 400V, 50A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 81ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 275W
Switching Energy : 1.5mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/172ns
Test Condition : 400V, 50A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 81ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
