Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IKU15N60RBKMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 250W
Switching Energy : 900µJ
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : 16ns/183ns
Test Condition : 400V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 15A
Power - Max : 250W
Switching Energy : 900µJ
Input Type : Standard
Gate Charge : 90nC
Td (on/off) @ 25°C : 16ns/183ns
Test Condition : 400V, 15A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
0
100 in stock
IKW03N120H2FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 9.6A
Current - Collector Pulsed (Icm) : 9.9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 9.6A
Current - Collector Pulsed (Icm) : 9.9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW08T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 8A
Power - Max : 70W
Switching Energy : 1.37mJ
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 40ns/450ns
Test Condition : 600V, 8A, 81 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 8A
Power - Max : 70W
Switching Energy : 1.37mJ
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 40ns/450ns
Test Condition : 600V, 8A, 81 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
49 in stock
IKW15N120BH6XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 15A
Power - Max : 200W
Switching Energy : 700µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 92nC
Td (on/off) @ 25°C : 18ns/240ns
Test Condition : 600V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 340ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 15A
Power - Max : 200W
Switching Energy : 700µJ (on), 550µJ (off)
Input Type : Standard
Gate Charge : 92nC
Td (on/off) @ 25°C : 18ns/240ns
Test Condition : 600V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 340ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
204 in stock
IKW15N120H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 217W
Switching Energy : 1.55mJ
Input Type : Standard
Gate Charge : 75nC
Td (on/off) @ 25°C : 21ns/260ns
Test Condition : 600V, 15A, 35 Ohm, 15V
Reverse Recovery Time (trr) : 260ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 217W
Switching Energy : 1.55mJ
Input Type : Standard
Gate Charge : 75nC
Td (on/off) @ 25°C : 21ns/260ns
Test Condition : 600V, 15A, 35 Ohm, 15V
Reverse Recovery Time (trr) : 260ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
686 in stock
IKW20N60H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 170W
Switching Energy : 800µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 17ns/194ns
Test Condition : 400V, 20A, 14.6 Ohm, 15V
Reverse Recovery Time (trr) : 112ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 170W
Switching Energy : 800µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 17ns/194ns
Test Condition : 400V, 20A, 14.6 Ohm, 15V
Reverse Recovery Time (trr) : 112ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW20N60TAFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 20A
Power - Max : 166W
Switching Energy : 770µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 18ns/199ns
Test Condition : 400V, 20A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 20A
Power - Max : 166W
Switching Energy : 770µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 18ns/199ns
Test Condition : 400V, 20A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

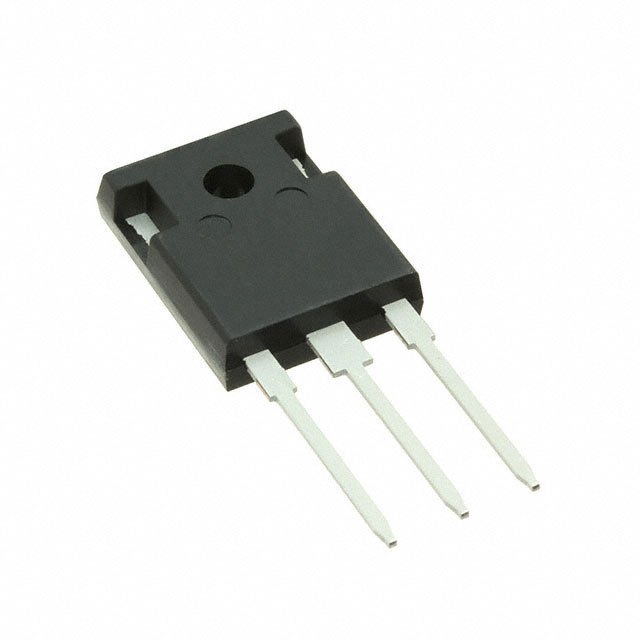

IKW20N60TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 20A
Power - Max : 166W
Switching Energy : 770µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 18ns/199ns
Test Condition : 400V, 20A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 20A
Power - Max : 166W
Switching Energy : 770µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 18ns/199ns
Test Condition : 400V, 20A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW25N120H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 25A
Power - Max : 326W
Switching Energy : 2.65mJ
Input Type : Standard
Gate Charge : 115nC
Td (on/off) @ 25°C : 27ns/277ns
Test Condition : 600V, 25A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 290ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 25A
Power - Max : 326W
Switching Energy : 2.65mJ
Input Type : Standard
Gate Charge : 115nC
Td (on/off) @ 25°C : 27ns/277ns
Test Condition : 600V, 25A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 290ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW25N120T2FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 25A
Power - Max : 349W
Switching Energy : 2.9mJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 27ns/265ns
Test Condition : 600V, 25A, 16.4 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 25A
Power - Max : 349W
Switching Energy : 2.9mJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 27ns/265ns
Test Condition : 600V, 25A, 16.4 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
1200 in stock
IKW25T120FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 25A
Power - Max : 190W
Switching Energy : 4.2mJ
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 50ns/560ns
Test Condition : 600V, 25A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 25A
Power - Max : 190W
Switching Energy : 4.2mJ
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 50ns/560ns
Test Condition : 600V, 25A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
136 in stock
IKW30N60DTPXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 53A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 200W
Switching Energy : 710µJ (on), 420µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 15ns/179ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 53A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 200W
Switching Energy : 710µJ (on), 420µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 15ns/179ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
1070 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
