Part Number
Manufacturer
Description
Unit Price
In Stock
IKW30N60H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.38mJ
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 21ns/207ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : 38ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.38mJ
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 21ns/207ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : 38ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW30N60TAFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.46mJ
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 23ns/254ns
Test Condition : 400V, 30A, 10.6 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.46mJ
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 23ns/254ns
Test Condition : 400V, 30A, 10.6 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW30N60TFKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.46mJ
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 23ns/254ns
Test Condition : 400V, 30A, 10.6 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.46mJ
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 23ns/254ns
Test Condition : 400V, 30A, 10.6 Ohm, 15V
Reverse Recovery Time (trr) : 143ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
220 in stock
IKW30N65EL5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.35V @ 15V, 30A
Power - Max : 227W
Switching Energy : 470µJ (on), 1.35mJ (off)
Input Type : Standard
Gate Charge : 168nC
Td (on/off) @ 25°C : 33ns/308ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.35V @ 15V, 30A
Power - Max : 227W
Switching Energy : 470µJ (on), 1.35mJ (off)
Input Type : Standard
Gate Charge : 168nC
Td (on/off) @ 25°C : 33ns/308ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
372 in stock
IKW30N65ES5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 62A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 188W
Switching Energy : 560µJ (on), 320µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 17ns/124ns
Test Condition : 400V, 30A, 13 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 62A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 30A
Power - Max : 188W
Switching Energy : 560µJ (on), 320µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 17ns/124ns
Test Condition : 400V, 30A, 13 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
3812 in stock
IKW30N65H5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 188W
Switching Energy : 280µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 20ns/190ns
Test Condition : 400V, 15A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 55A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 188W
Switching Energy : 280µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 20ns/190ns
Test Condition : 400V, 15A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
240 in stock

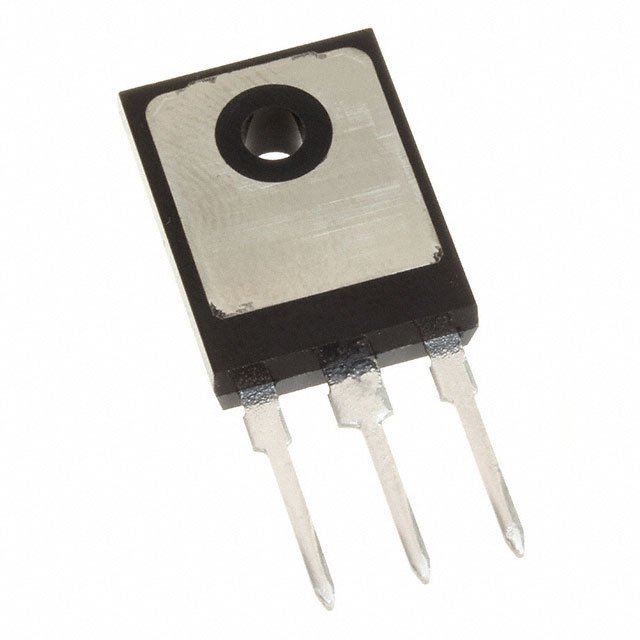

IKW30N65WR5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 185W
Switching Energy : 990µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 39ns/367ns
Test Condition : 400V, 15A, 26 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 30A
Power - Max : 185W
Switching Energy : 990µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 39ns/367ns
Test Condition : 400V, 15A, 26 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
130 in stock
IKW40N120CS6XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 500W
Switching Energy : 2.55mJ (on), 1.55mJ (off)
Input Type : Standard
Gate Charge : 285nC
Td (on/off) @ 25°C : 27ns/315ns
Test Condition : 600V, 40A, 9 Ohm, 15V
Reverse Recovery Time (trr) : 400ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 500W
Switching Energy : 2.55mJ (on), 1.55mJ (off)
Input Type : Standard
Gate Charge : 285nC
Td (on/off) @ 25°C : 27ns/315ns
Test Condition : 600V, 40A, 9 Ohm, 15V
Reverse Recovery Time (trr) : 400ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW40N120H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 483W
Switching Energy : 4.4mJ
Input Type : Standard
Gate Charge : 185nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 355ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 483W
Switching Energy : 4.4mJ
Input Type : Standard
Gate Charge : 185nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 355ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
1440 in stock
IKW40N120T2FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 480W
Switching Energy : 5.25mJ
Input Type : Standard
Gate Charge : 192nC
Td (on/off) @ 25°C : 33ns/314ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 258ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 40A
Power - Max : 480W
Switching Energy : 5.25mJ
Input Type : Standard
Gate Charge : 192nC
Td (on/off) @ 25°C : 33ns/314ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 258ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
IKW40N60DTPXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 67A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 40A
Power - Max : 246W
Switching Energy : 1.06mJ (on), 610µJ (off)
Input Type : Standard
Gate Charge : 177nC
Td (on/off) @ 25°C : 18ns/222ns
Test Condition : 400V, 40A, 10.1 Ohm, 15V
Reverse Recovery Time (trr) : 87ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 67A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 40A
Power - Max : 246W
Switching Energy : 1.06mJ (on), 610µJ (off)
Input Type : Standard
Gate Charge : 177nC
Td (on/off) @ 25°C : 18ns/222ns
Test Condition : 400V, 40A, 10.1 Ohm, 15V
Reverse Recovery Time (trr) : 87ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
230 in stock

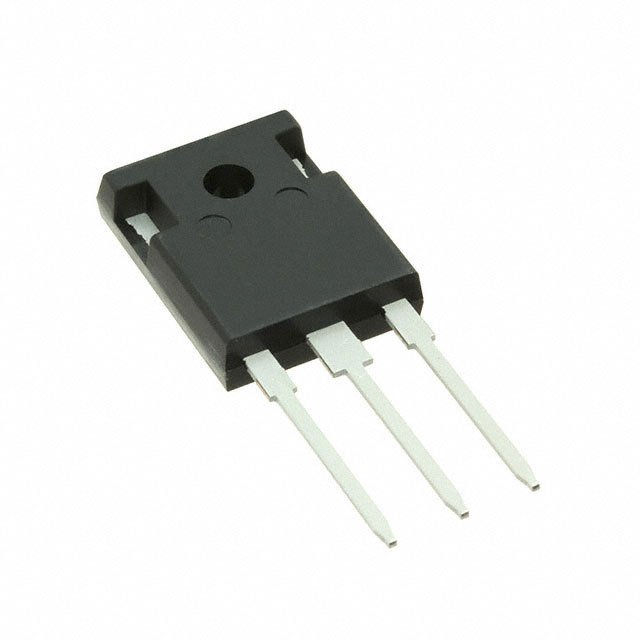

IKW40N60H3FKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 306W
Switching Energy : 1.68mJ
Input Type : Standard
Gate Charge : 223nC
Td (on/off) @ 25°C : 19ns/197ns
Test Condition : 400V, 40A, 7.9 Ohm, 15V
Reverse Recovery Time (trr) : 124ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 306W
Switching Energy : 1.68mJ
Input Type : Standard
Gate Charge : 223nC
Td (on/off) @ 25°C : 19ns/197ns
Test Condition : 400V, 40A, 7.9 Ohm, 15V
Reverse Recovery Time (trr) : 124ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
2 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
