- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
IKQ100N60TXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 400A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 100A
Power - Max : 714W
Switching Energy : 3.1mJ (on), 2.5mJ (off)
Input Type : Standard
Gate Charge : 610nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 400V, 100A, 3.6 Ohm, 15V
Reverse Recovery Time (trr) : 230ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 400A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 100A
Power - Max : 714W
Switching Energy : 3.1mJ (on), 2.5mJ (off)
Input Type : Standard
Gate Charge : 610nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 400V, 100A, 3.6 Ohm, 15V
Reverse Recovery Time (trr) : 230ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
240 in stock
IKQ120N60TAXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 480A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 120A
Power - Max : 833W
Switching Energy : 4.1mJ (on), 2.8mJ (off)
Input Type : Standard
Gate Charge : 772nC
Td (on/off) @ 25°C : 33ns/310ns
Test Condition : 400V, 120A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 280ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 480A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 120A
Power - Max : 833W
Switching Energy : 4.1mJ (on), 2.8mJ (off)
Input Type : Standard
Gate Charge : 772nC
Td (on/off) @ 25°C : 33ns/310ns
Test Condition : 400V, 120A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 280ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
100 in stock
IKQ120N60TXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 480A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 120A
Power - Max : 833W
Switching Energy : 6.2mJ (on), 5.9mJ (off)
Input Type : Standard
Gate Charge : 703nC
Td (on/off) @ 25°C : 50ns/565ns
Test Condition : 400V, 120A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 241ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 480A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 120A
Power - Max : 833W
Switching Energy : 6.2mJ (on), 5.9mJ (off)
Input Type : Standard
Gate Charge : 703nC
Td (on/off) @ 25°C : 50ns/565ns
Test Condition : 400V, 120A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 241ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
415 in stock
IKQ40N120CH3XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 40A
Power - Max : 500W
Switching Energy : 3.3mJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 30ns/300ns
Test Condition : 400V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 40A
Power - Max : 500W
Switching Energy : 3.3mJ (on), 1.3mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 30ns/300ns
Test Condition : 400V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
209 in stock

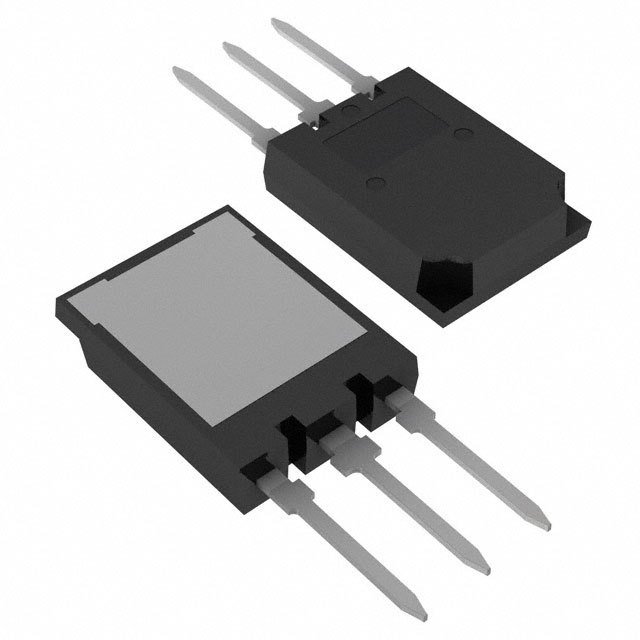

IKQ40N120CT2XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 500W
Switching Energy : 3.1mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 32ns/328ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 500W
Switching Energy : 3.1mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 190nC
Td (on/off) @ 25°C : 32ns/328ns
Test Condition : 600V, 40A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
228 in stock
IKQ50N120CH3XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 50A
Power - Max : 652W
Switching Energy : 3mJ (on), 1.9mJ (off)
Input Type : Standard
Gate Charge : 235nC
Td (on/off) @ 25°C : 34ns/297ns
Test Condition : 600V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 50A
Power - Max : 652W
Switching Energy : 3mJ (on), 1.9mJ (off)
Input Type : Standard
Gate Charge : 235nC
Td (on/off) @ 25°C : 34ns/297ns
Test Condition : 600V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
100 in stock
IKQ50N120CT2XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 50A
Power - Max : 652W
Switching Energy : 3.8mJ (on), 3.3mJ (off)
Input Type : Standard
Gate Charge : 235nC
Td (on/off) @ 25°C : 34ns/312ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 50A
Power - Max : 652W
Switching Energy : 3.8mJ (on), 3.3mJ (off)
Input Type : Standard
Gate Charge : 235nC
Td (on/off) @ 25°C : 34ns/312ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
186 in stock
IKQ75N120CH3XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 75A
Power - Max : 938W
Switching Energy : 6.4mJ (on), 2.8mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 34ns/282ns
Test Condition : 600V, 75A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 75A
Power - Max : 938W
Switching Energy : 6.4mJ (on), 2.8mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 34ns/282ns
Test Condition : 600V, 75A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
187 in stock

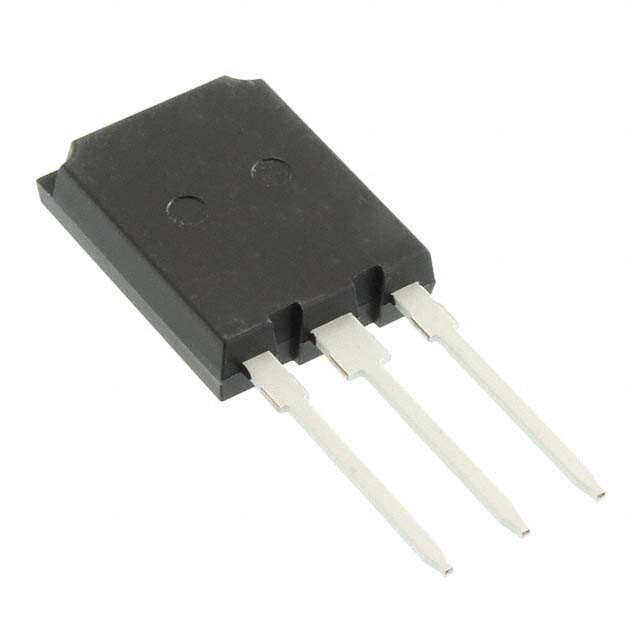

IKQ75N120CS6XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 75A
Power - Max : 880W
Switching Energy : 5.15mJ (on), 2.95mJ (off)
Input Type : Standard
Gate Charge : 530nC
Td (on/off) @ 25°C : 34ns/300ns
Test Condition : 600V, 75A, 4 Ohm, 15V
Reverse Recovery Time (trr) : 440ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Packaging : Tube
Series : TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 75A
Power - Max : 880W
Switching Energy : 5.15mJ (on), 2.95mJ (off)
Input Type : Standard
Gate Charge : 530nC
Td (on/off) @ 25°C : 34ns/300ns
Test Condition : 600V, 75A, 4 Ohm, 15V
Reverse Recovery Time (trr) : 440ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
0
168 in stock
IKU04N60RBKMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 240µJ
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 75W
Switching Energy : 240µJ
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 14ns/146ns
Test Condition : 400V, 4A, 43 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
0
100 in stock
IKU06N60RBKMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 330µJ
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Power - Max : 100W
Switching Energy : 330µJ
Input Type : Standard
Gate Charge : 48nC
Td (on/off) @ 25°C : 12ns/127ns
Test Condition : 400V, 6A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
0
100 in stock

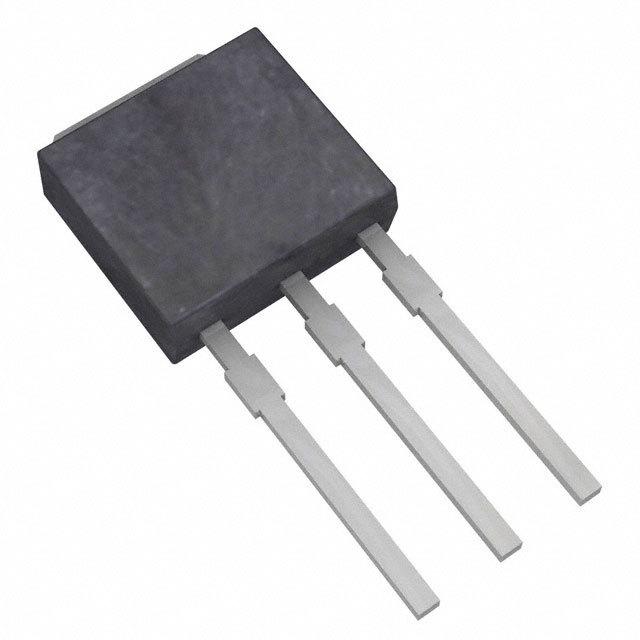

IKU10N60RBKMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : 590µJ
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
Packaging : Tube
Series : TrenchStop®
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 10A
Power - Max : 150W
Switching Energy : 590µJ
Input Type : Standard
Gate Charge : 64nC
Td (on/off) @ 25°C : 14ns/192ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 62ns
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : PG-TO251-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
