Part Number
Manufacturer
Description
Unit Price
In Stock
IRG4BC20KD-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
291 in stock
IRG4BC20KDSTRLP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
2400 in stock
IRG4BC20KD-STRR
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20KDSTRRP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 340µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 54ns/180ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

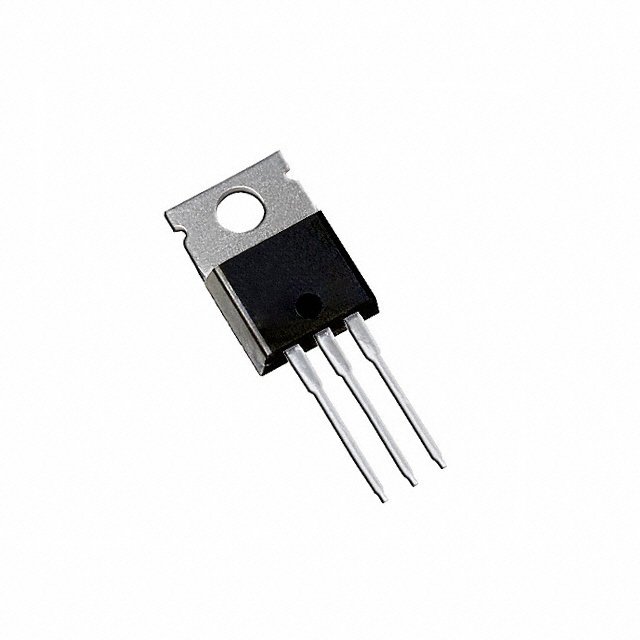

IRG4BC20KPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC20K-S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20K-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20K-STRLP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20K-STRRP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 32A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 9A
Power - Max : 60W
Switching Energy : 150µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 34nC
Td (on/off) @ 25°C : 28ns/150ns
Test Condition : 480V, 9A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20MDPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 18A
Current - Collector Pulsed (Icm) : 36A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 11A
Power - Max : 60W
Switching Energy : 410µJ (on), 2.03mJ (off)
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : 21ns/463ns
Test Condition : 480V, 11A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 18A
Current - Collector Pulsed (Icm) : 36A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 11A
Power - Max : 60W
Switching Energy : 410µJ (on), 2.03mJ (off)
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : 21ns/463ns
Test Condition : 480V, 11A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC20MD-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 18A
Current - Collector Pulsed (Icm) : 36A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 11A
Power - Max : 60W
Switching Energy : 410µJ (on), 2.03mJ (off)
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : 21ns/463ns
Test Condition : 480V, 11A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 18A
Current - Collector Pulsed (Icm) : 36A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 11A
Power - Max : 60W
Switching Energy : 410µJ (on), 2.03mJ (off)
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : 21ns/463ns
Test Condition : 480V, 11A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 19A
Current - Collector Pulsed (Icm) : 38A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 10A
Power - Max : 60W
Switching Energy : 120µJ (on), 2.05mJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 27ns/540ns
Test Condition : 480V, 10A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 19A
Current - Collector Pulsed (Icm) : 38A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 10A
Power - Max : 60W
Switching Energy : 120µJ (on), 2.05mJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 27ns/540ns
Test Condition : 480V, 10A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
