Part Number
Manufacturer
Description
Unit Price
In Stock
IRG4BC20UD-STRR
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 160µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 39ns/93ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 160µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 39ns/93ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20UDSTRRP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 160µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 39ns/93ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 160µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 39ns/93ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

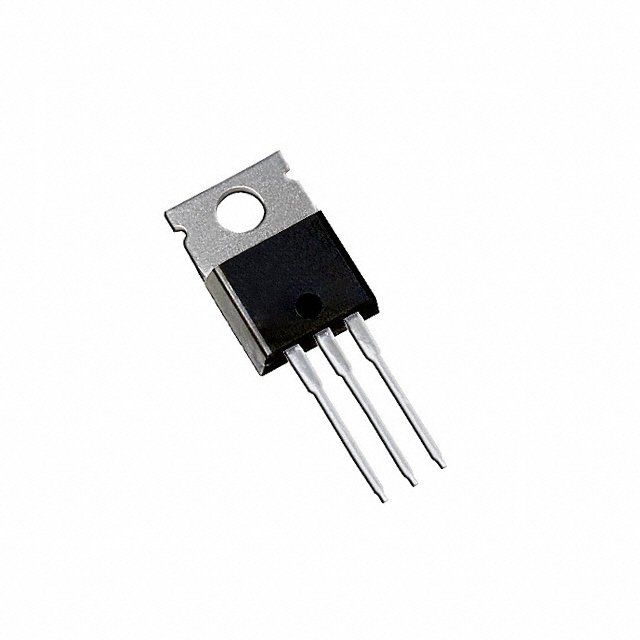

IRG4BC20UPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 100µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 21ns/86ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 100µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 21ns/86ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC20U-S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 9A
Power - Max : 60W
Switching Energy : 100µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 21ns/86ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 9A
Power - Max : 60W
Switching Energy : 100µJ (on), 120µJ (off)
Input Type : Standard
Gate Charge : 27nC
Td (on/off) @ 25°C : 21ns/86ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC20W
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC20WPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC20W-S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC20W-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 13A
Current - Collector Pulsed (Icm) : 52A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 6.5A
Power - Max : 60W
Switching Energy : 60µJ (on), 80µJ (off)
Input Type : Standard
Gate Charge : 26nC
Td (on/off) @ 25°C : 22ns/110ns
Test Condition : 480V, 6.5A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30F
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC30FD1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 370µJ (on), 1.42mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 22ns/250ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 370µJ (on), 1.42mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 22ns/250ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC30FD1PBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 370µJ (on), 1.42mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 22ns/250ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 370µJ (on), 1.42mJ (off)
Input Type : Standard
Gate Charge : 57nC
Td (on/off) @ 25°C : 22ns/250ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC30FDPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
957 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
