IRG4BC30FD-S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30FD-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
3047 in stock
IRG4BC30FD-STRR
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30FDSTRRP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 630µJ (on), 1.39mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 42ns/230ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock

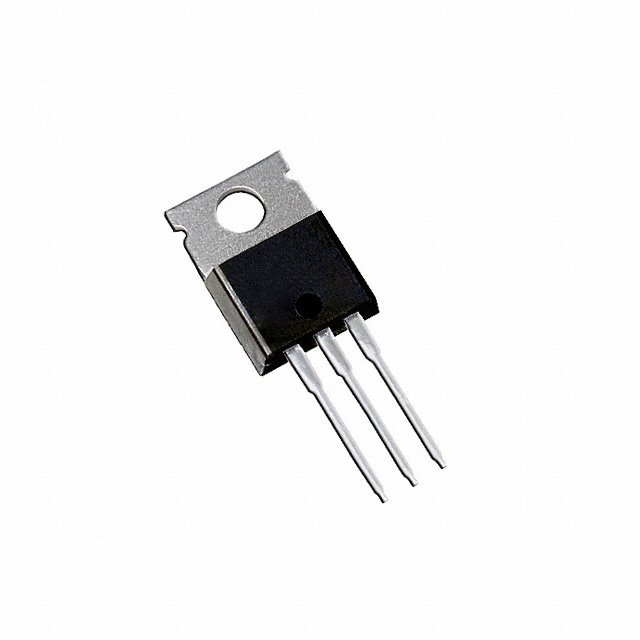

IRG4BC30FPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 124A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
IRG4BC30F-S
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30F-SPBF
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30F-STRL
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30F-STRLP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30F-STRR
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30F-STRRP
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 31A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 17A
Power - Max : 100W
Switching Energy : 230µJ (on), 1.18mJ (off)
Input Type : Standard
Gate Charge : 51nC
Td (on/off) @ 25°C : 21ns/200ns
Test Condition : 480V, 17A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
IRG4BC30K
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 28A
Current - Collector Pulsed (Icm) : 58A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 16A
Power - Max : 100W
Switching Energy : 360µJ (on), 510µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 26ns/130ns
Test Condition : 480V, 16A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 28A
Current - Collector Pulsed (Icm) : 58A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 16A
Power - Max : 100W
Switching Energy : 360µJ (on), 510µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 26ns/130ns
Test Condition : 480V, 16A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
