Part Number
Manufacturer
Description
Unit Price
In Stock
109S095
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 34.7 CFM (0.972m鲁/min)
Static Pressure : 0.161 in H2O (40.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 35.0 dB(A)
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
Series : San Ace 92
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 34.7 CFM (0.972m鲁/min)
Static Pressure : 0.161 in H2O (40.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 35.0 dB(A)
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
0
100 in stock
109S192
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 27.0 dB(A)
Power (Watts) : 7.00W
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
Series : San Ace 92
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 27.0 dB(A)
Power (Watts) : 7.00W
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
0
100 in stock
109S193
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 27.0 dB(A)
Power (Watts) : 6.00W
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
Series : San Ace 92
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 27.0 dB(A)
Power (Watts) : 6.00W
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
0
100 in stock
109S194
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 27.0 dB(A)
Power (Watts) : 7.00W
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
Series : San Ace 92
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.065 in H2O (16.2 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 27.0 dB(A)
Power (Watts) : 7.00W
RPM : 1700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.644 lb (292.11g)
0
100 in stock

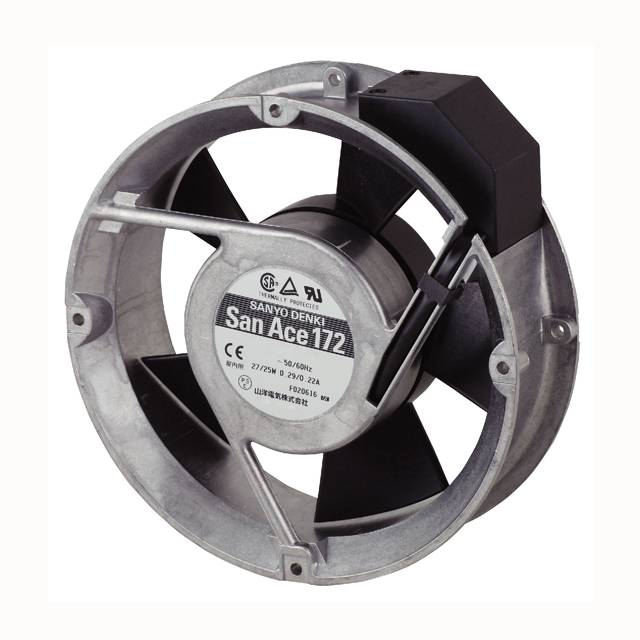

109S301
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 172
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
Series : San Ace 172
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
0
9 in stock
109S302
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 172
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
Series : San Ace 172
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
0
6 in stock
109S303
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 172
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
Series : San Ace 172
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
0
21 in stock

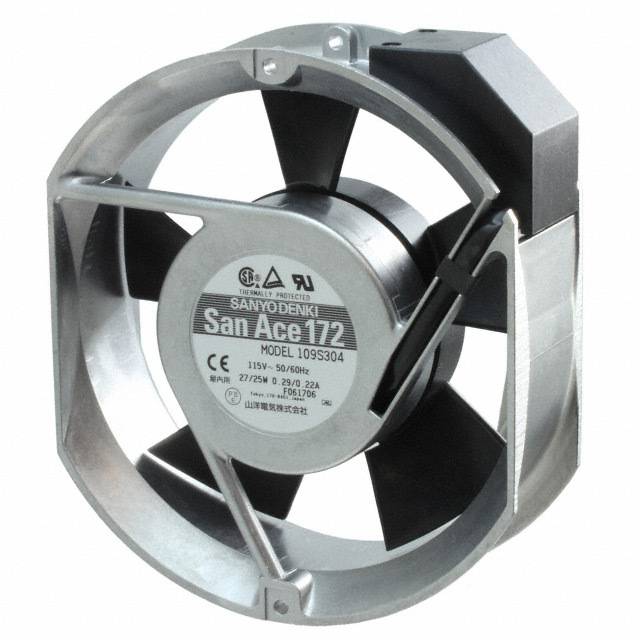

109S304
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 172
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
Series : San Ace 172
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.1 CFM (6.33m鲁/min)
Static Pressure : 0.787 in H2O (196.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 25.00W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 2.3 lbs (1kg)
0
100 in stock
109S405UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
0
100 in stock
109S406UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.071 in H2O (17.6 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 6.00W
RPM : 1700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.071 in H2O (17.6 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 6.00W
RPM : 1700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
0
100 in stock
109S408UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
0
100 in stock
109S424UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, PSE, TUV, UL
Weight : 1.3 lbs (589.7g)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
