Part Number

Manufacturer

Description

Unit Price

In Stock

FAA1-12038NBJW31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038-A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 103.4 CFM (2.90m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 17.20W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

247 in stock

FAA1-12038NBKT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 107.0 CFM (3.00m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.1 dB(A)
Power (Watts) : 19.20W
RPM : 2600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

388 in stock

FAA1-12038NBKW31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038-A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 107.0 CFM (3.00m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.1 dB(A)
Power (Watts) : 19.20W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

248 in stock

FAA1-12038NBLT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 71.5 CFM (2.00m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.9 dB(A)
Power (Watts) : 8.70W
RPM : 2200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

50 in stock

FAA1-12038NBLW31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 71.5 CFM (2.00m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.9 dB(A)
Power (Watts) : 8.70W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

233 in stock

FAA1-12038NBMT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 87.0 CFM (2.44m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 12.40W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

234 in stock

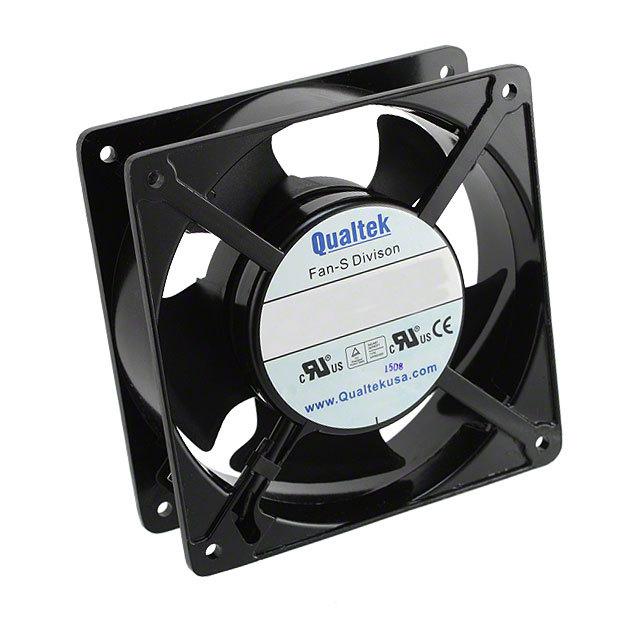

FAA1-12038NBMW31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 87.0 CFM (2.44m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 12.40W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

40 in stock

FAA1-12038QBHT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 97.0 CFM (2.72m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.5 dB(A)
Power (Watts) : 14.80W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

102 in stock

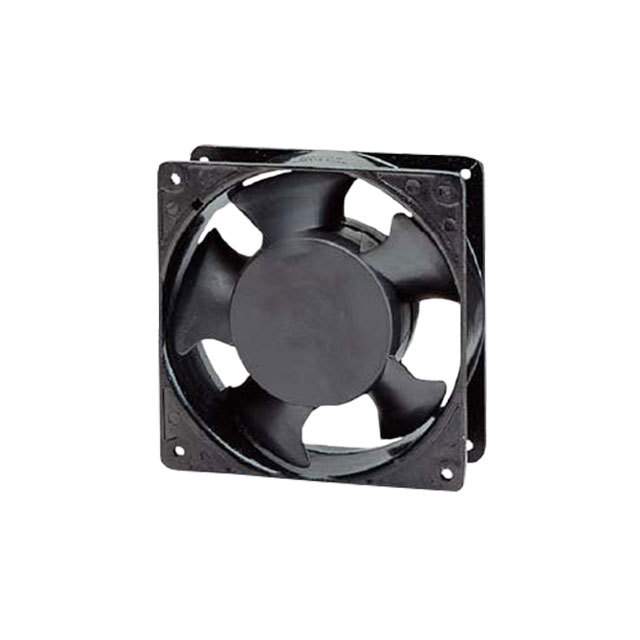

FAA1-12038QBJT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 103.5 CFM (2.90m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 17.60W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

100 in stock

FAA1-12038QBKT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 107.0 CFM (3.00m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.1 dB(A)
Power (Watts) : 19.80W
RPM : 2600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

236 in stock

FAA1-12038QBLT31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 71.5 CFM (2.00m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.9 dB(A)
Power (Watts) : 9.40W
RPM : 2200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

9 in stock

FAA1-12038QBLW31-A

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : FAA1-12038
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 71.5 CFM (2.00m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.9 dB(A)
Power (Watts) : 9.40W
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.2 lbs (544.3g)

50 in stock
