Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of FC063-6/105127

FC063-6/105127

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : FC063
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 805mm L x 805mm H
Width : 218.0mm
Air Flow : 8000.0 CFM (224.00m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 77.0 dB(A)
Power (Watts) : 1000W
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 42 lbs (19.1kg)

0

100 in stock

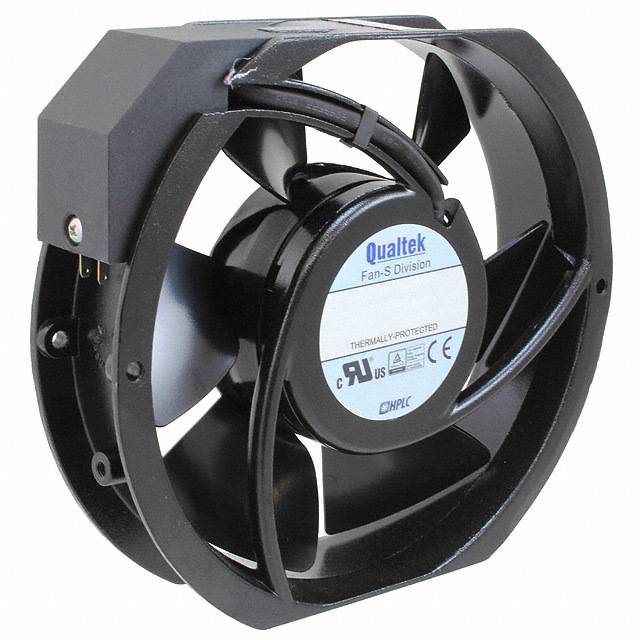

Picture of FDA2-17238NBHT4F

FDA2-17238NBHT4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17238
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.571 in H2O (142.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)

0

50 in stock

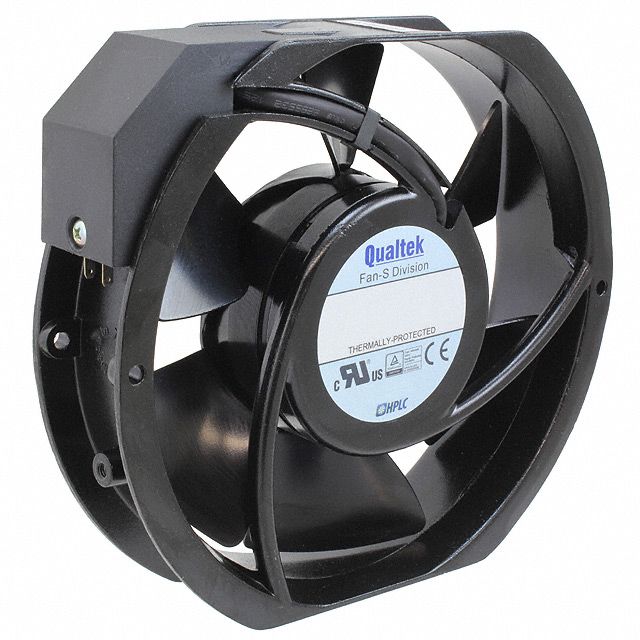

Picture of FDA2-17238QBHT4F

FDA2-17238QBHT4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17238
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 38.50mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.571 in H2O (142.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)

0

33 in stock

Picture of FDA2-17251NBHT4D

FDA2-17251NBHT4D

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)

0

27 in stock

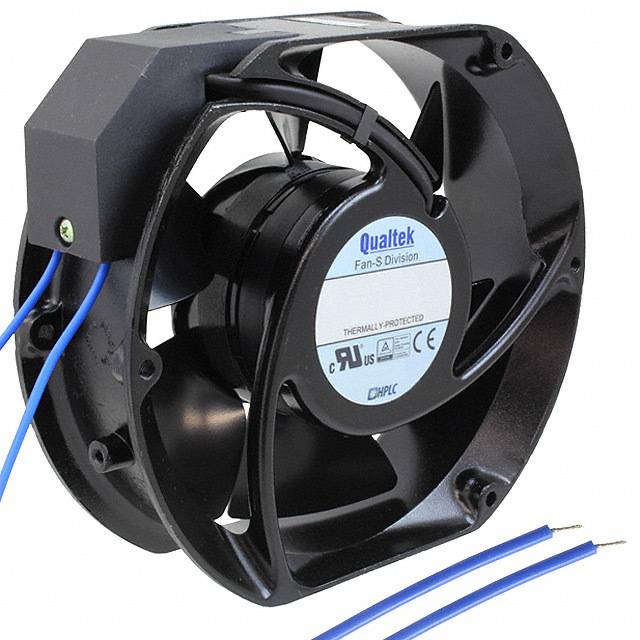

Picture of FDA2-17251NBHW4F

FDA2-17251NBHW4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)

0

71 in stock

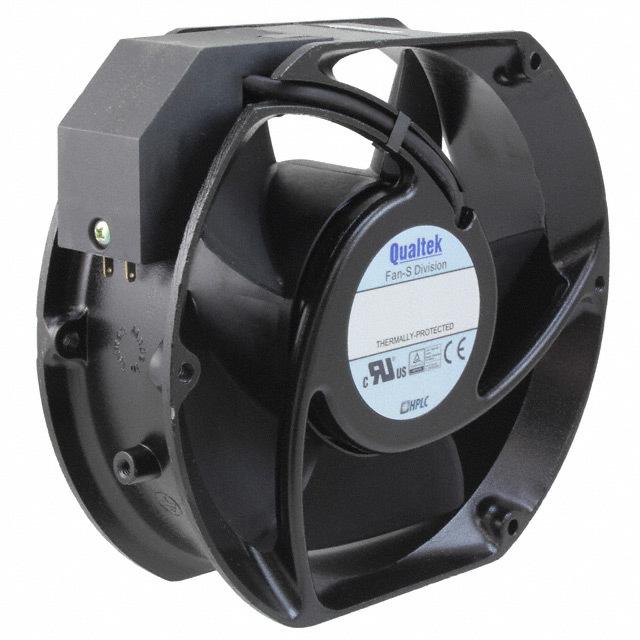

Picture of FDA2-17251NBKT3F

FDA2-17251NBKT3F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 275.0 CFM (7.70m鲁/min)
Static Pressure : 0.768 in H2O (191.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 27.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)

0

147 in stock

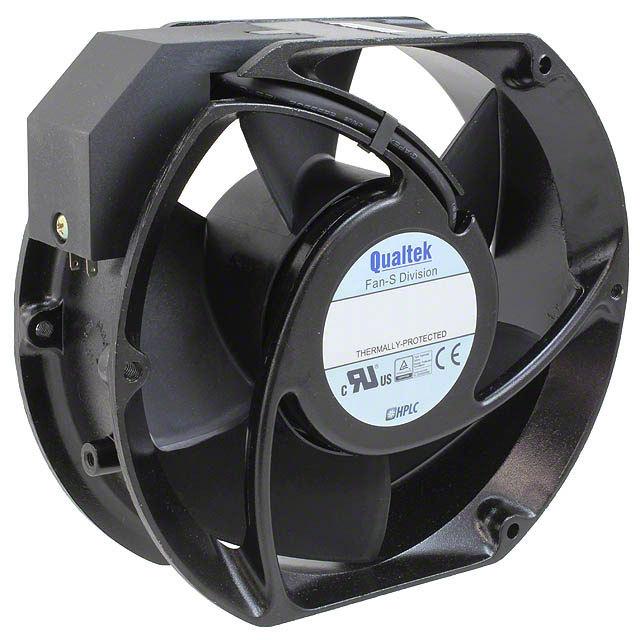

Picture of FDA2-17251QBHT4D

FDA2-17251QBHT4D

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)

0

18 in stock

Picture of FDA2-17251QBHW4F

FDA2-17251QBHW4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 2 lbs (907.2g)

0

49 in stock

Picture of FDA2-17251QBKT3F

FDA2-17251QBKT3F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17251
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 51.00mm
Air Flow : 275.0 CFM (7.70m鲁/min)
Static Pressure : 0.768 in H2O (191.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB(A)
Power (Watts) : 27.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.9 lbs (861.8g)

0

37 in stock

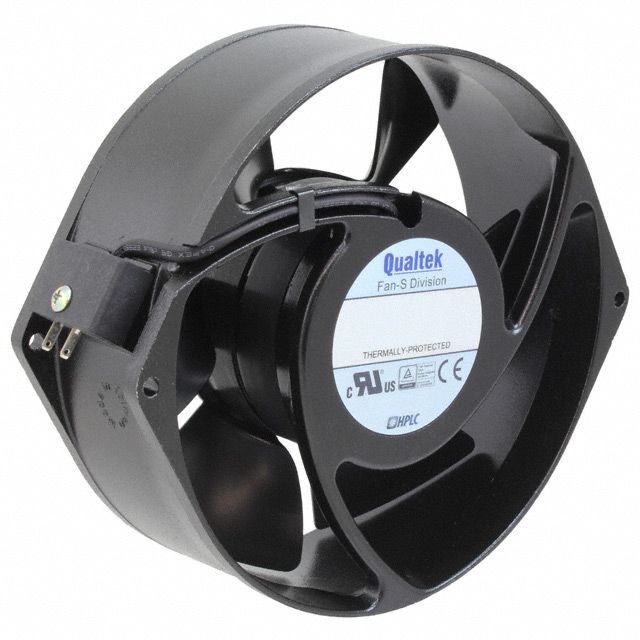

Picture of FDA2-17255NBHT4F

FDA2-17255NBHT4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17255
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 55.00mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.531 in H2O (132.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)

0

13 in stock

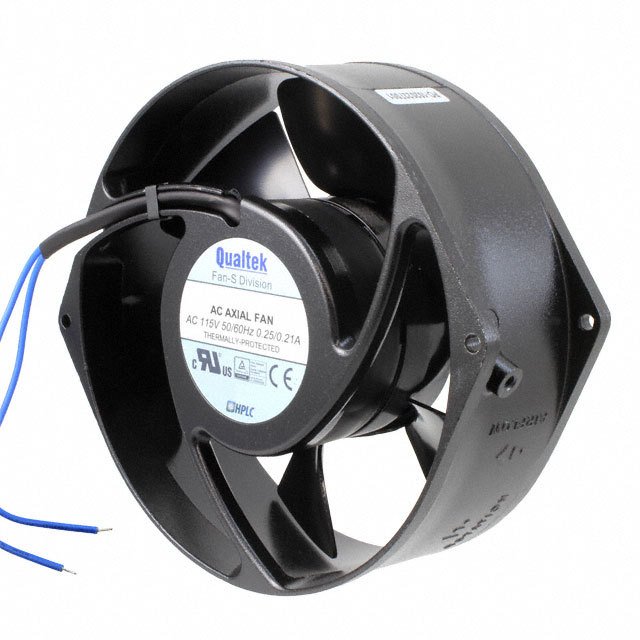

Picture of FDA2-17255NBHW4F

FDA2-17255NBHW4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17255
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 55.00mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.531 in H2O (132.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : 25.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)

0

19 in stock

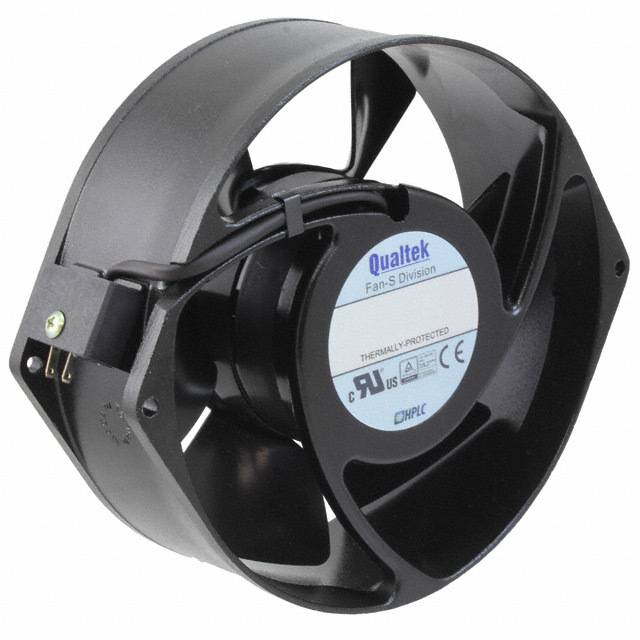

Picture of FDA2-17255QBHT4F

FDA2-17255QBHT4F

Fan-S Division / Qualtek Electronics Corp.

Manufacturer : Qualtek
Series : HPLC, FDA2-17255
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 151mm H
Width : 55.00mm
Air Flow : 240.0 CFM (6.72m鲁/min)
Static Pressure : 0.531 in H2O (132.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : 27.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 1.8 lbs (816.5g)

0

18 in stock
