Category
  • AC Fans
Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of FDA2-22580NBHK4D

FDA2-22580NBHK4D FDA2-22580NBHK4D

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
46 in stock
Picture of FDA2-22580NBHK4D-L

FDA2-22580NBHK4D-L FDA2-22580NBHK4D-L

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock

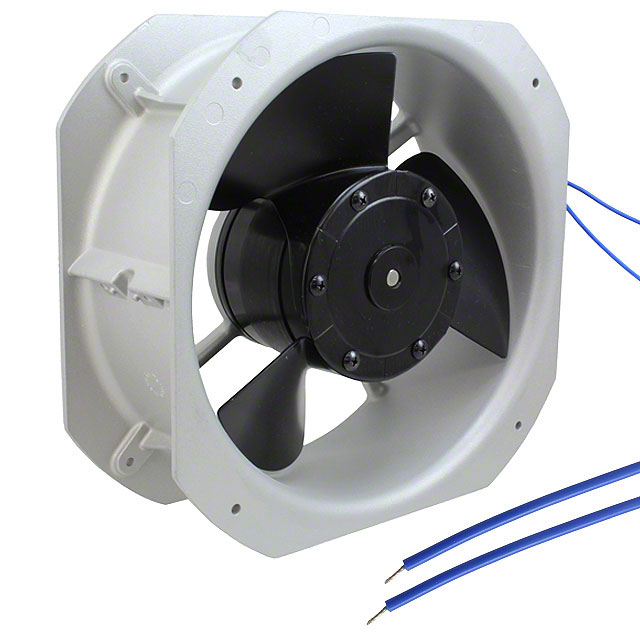

Picture of FDA2-22580NBHK4F

FDA2-22580NBHK4F FDA2-22580NBHK4F

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
3 in stock
Picture of FDA2-22580NBHK4F-L

FDA2-22580NBHK4F-L FDA2-22580NBHK4F-L

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Picture of FDA2-22580QBHK4D

FDA2-22580QBHK4D FDA2-22580QBHK4D

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
48 in stock
Picture of FDA2-22580QBHK4D-L

FDA2-22580QBHK4D-L FDA2-22580QBHK4D-L

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Picture of FDA2-22580QBHK4F

FDA2-22580QBHK4F FDA2-22580QBHK4F

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
7 in stock
Picture of FDA2-22580QBHK4F-L

FDA2-22580QBHK4F-L FDA2-22580QBHK4F-L

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-22580
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 260mm L x 260mm H
Width : 80.00mm
Air Flow : 670.0 CFM (18.76m鲁/min)
Static Pressure : 0.807 in H2O (201.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 68.0W
RPM : 3200 RPM
Termination : Terminal Block
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6.1 lbs (2.8kg)
0
100 in stock
Picture of FDA2-25489NBHT4D

FDA2-25489NBHT4D FDA2-25489NBHT4D

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 860.0 CFM (24.08m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 97.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6 lbs (2.7kg)
0
24 in stock
Picture of FDA2-25489NBHT4D-L

FDA2-25489NBHT4D-L FDA2-25489NBHT4D-L

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 860.0 CFM (24.08m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 97.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56M - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6 lbs (2.7kg)
0
100 in stock
Picture of FDA2-25489NBHT4F

FDA2-25489NBHT4F FDA2-25489NBHT4F

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 860.0 CFM (24.08m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 97.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6 lbs (2.7kg)
0
6 in stock

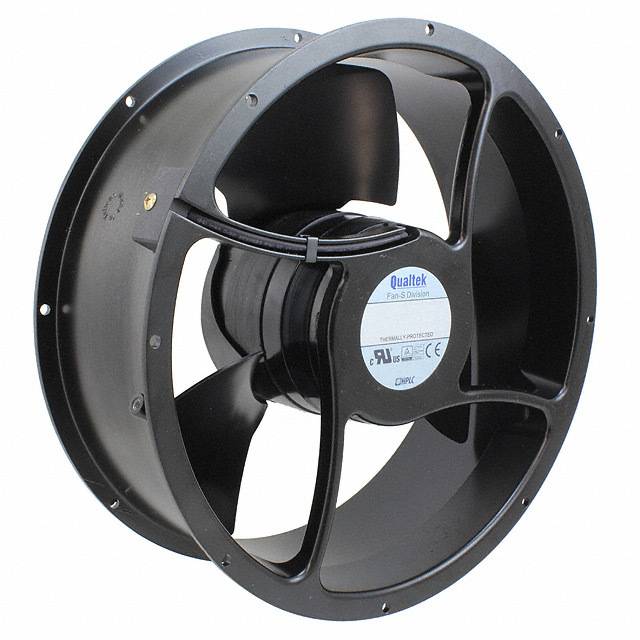

Picture of FDA2-25489NBHT4F-L

FDA2-25489NBHT4F-L FDA2-25489NBHT4F-L

Fan-S Division / Qualtek Electronics Corp.
Manufacturer : Qualtek
Series : HPLC, FDA2-25489
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 860.0 CFM (24.08m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 97.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 6 lbs (2.7kg)
0
36 in stock
