Part Number
Manufacturer
Description
Unit Price
In Stock

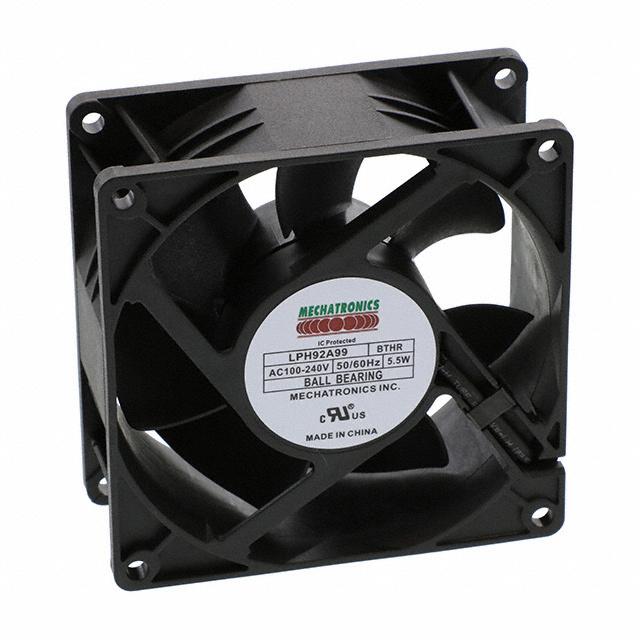

LPH92A99-BTHR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH92A99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 68.0 CFM (1.90m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 42.0 dB(A)
Power (Watts) : 5.50W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.384 lb (174.18g)
Series : LPH92A99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 68.0 CFM (1.90m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 42.0 dB(A)
Power (Watts) : 5.50W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.384 lb (174.18g)
0
102 in stock

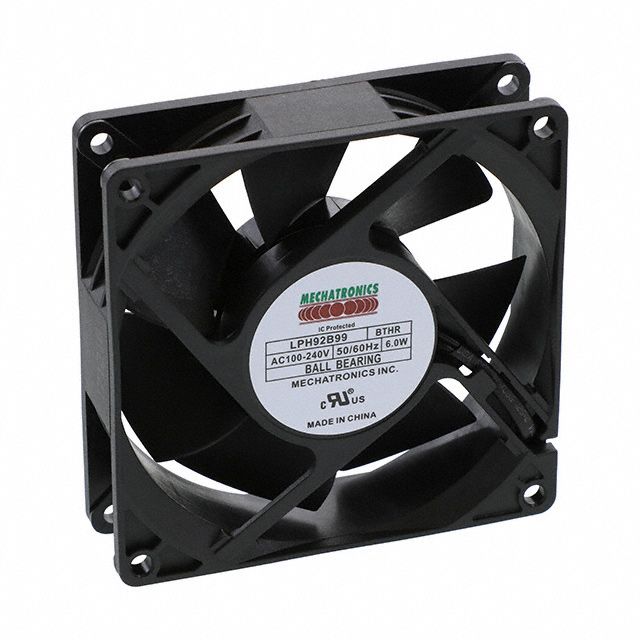

LPH92B99-BTHR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH92B99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.50mm
Air Flow : 56.0 CFM (1.57m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 44.0 dB(A)
Power (Watts) : 6.30W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.234 lb (106.14g)
Series : LPH92B99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.50mm
Air Flow : 56.0 CFM (1.57m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 44.0 dB(A)
Power (Watts) : 6.30W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.234 lb (106.14g)
0
54 in stock
M2E068-DF13-79
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
13 in stock

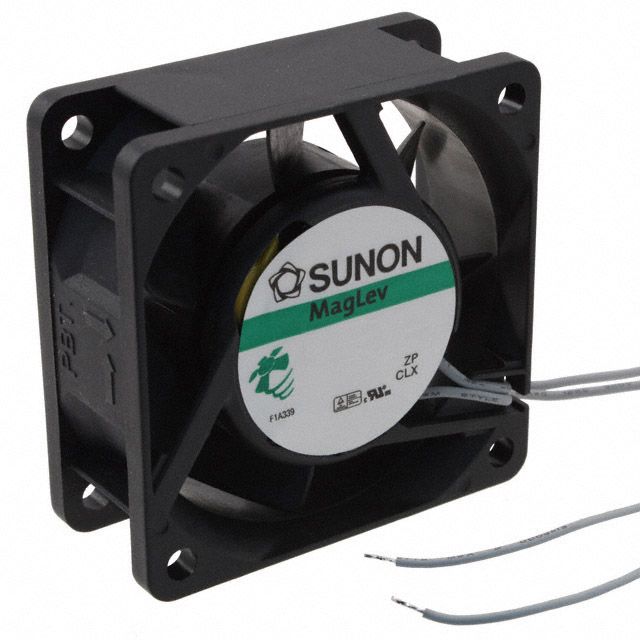

MA1062-HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 3.60W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.18 lb (81.65g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 3.60W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.18 lb (81.65g)
0
605 in stock

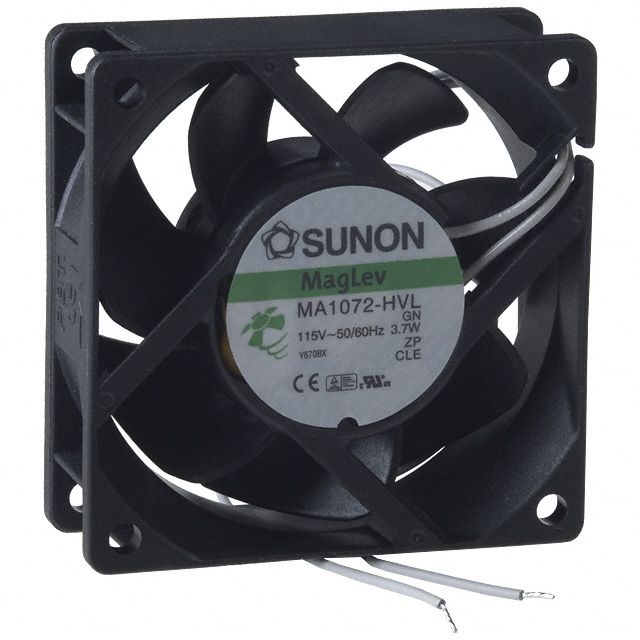

MA1072-HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 3.70W
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.2 lb (90.72g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 3.70W
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.2 lb (90.72g)
0
30 in stock
MA1082HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 3.60W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.225 lb (102.06g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 3.60W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.225 lb (102.06g)
0
22 in stock

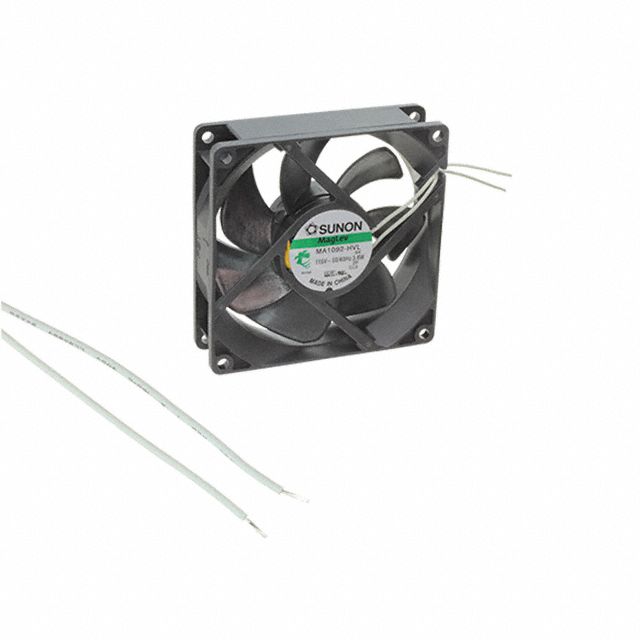

MA1092-HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 54.0 CFM (1.51m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 3.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.264 lb (119.75g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 54.0 CFM (1.51m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 3.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.264 lb (119.75g)
0
19 in stock

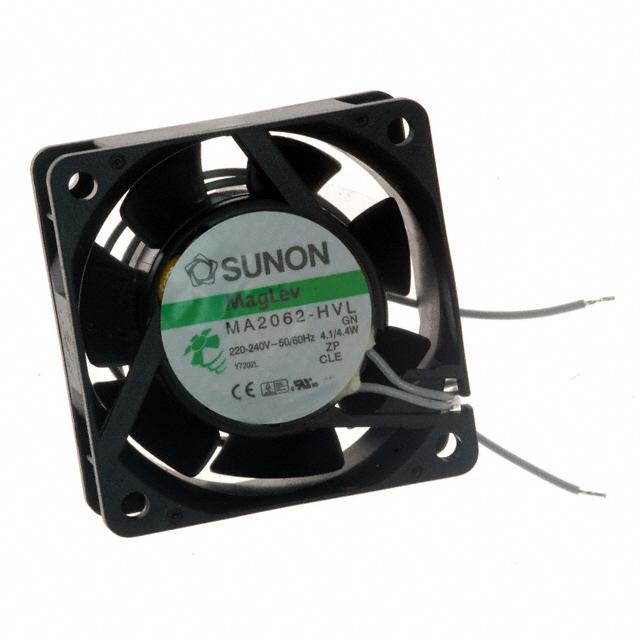

MA2062-HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 4.40W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.18 lb (81.65g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB(A)
Power (Watts) : 4.40W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.18 lb (81.65g)
0
334 in stock
MA2082-HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 4.60W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.225 lb (102.06g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 4.60W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.225 lb (102.06g)
0
26 in stock

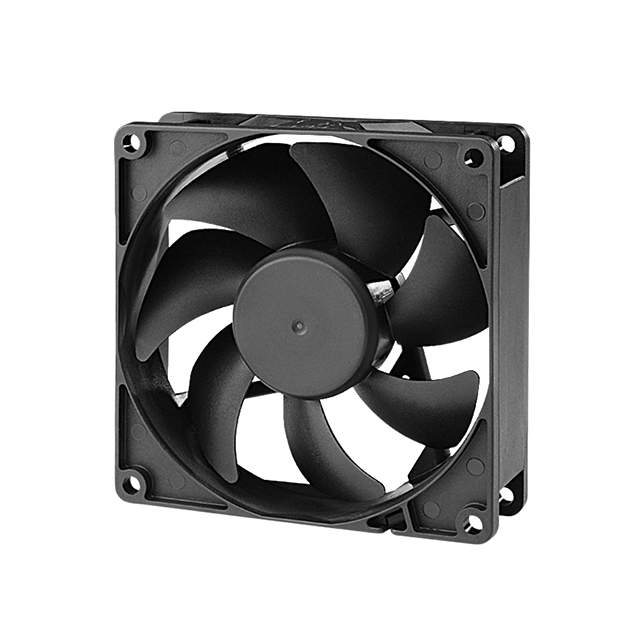

MA2092-HVL.GN
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 54.0 CFM (1.51m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 4.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.264 lb (119.75g)
Series : MagLev® MA
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 54.0 CFM (1.51m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 4.60W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CUR, TUV, UL
Weight : 0.264 lb (119.75g)
0
440 in stock

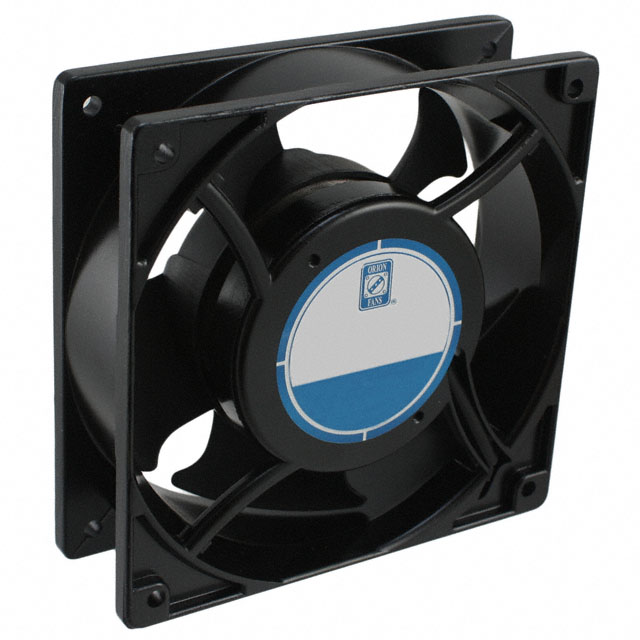

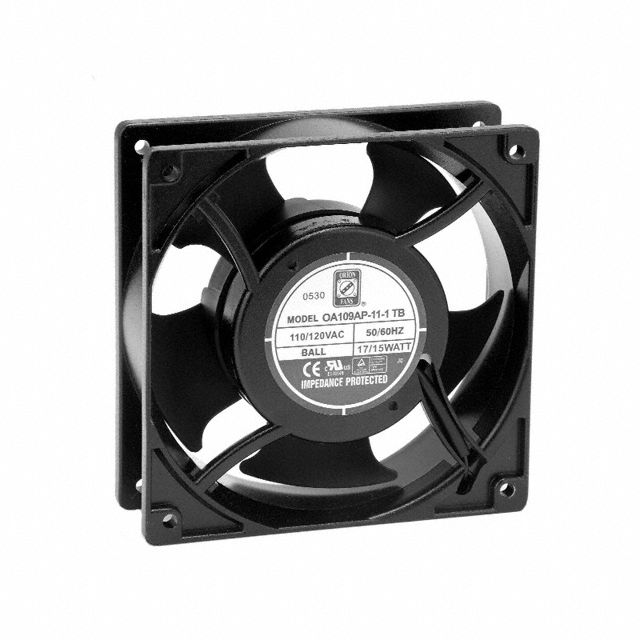

OA109AP-11/22-1WB
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
110 in stock
OA109AP-11-1TB
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
1760 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
