Part Number
Manufacturer
Description
Unit Price
In Stock

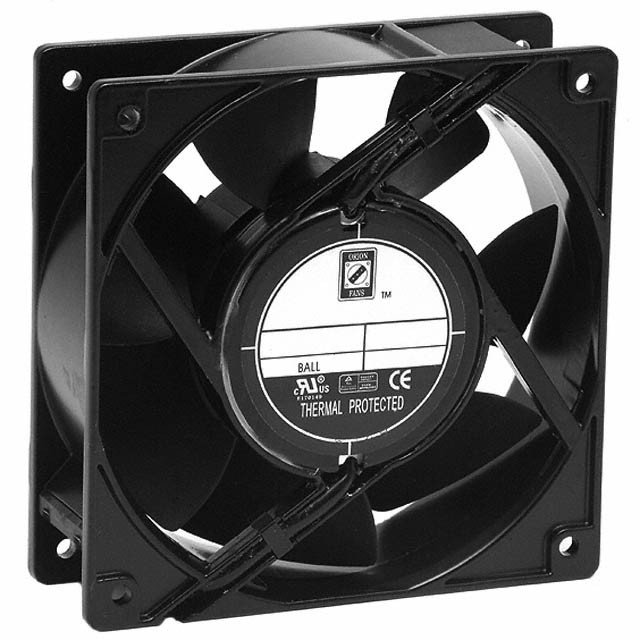

OA109AP-11-3TBR
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 38.0 dB
Power (Watts) : 12.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 38.0 dB
Power (Watts) : 12.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
34 in stock
OA109AP-11-3WB
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 8.00W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 8.00W
RPM : 1600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
52 in stock
OA109AP-22-1TB
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : 1.1 lbs (499g)
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : 1.1 lbs (499g)
0
2240 in stock
.jpg "Show details for OA109AP-22-1TB(SF)")

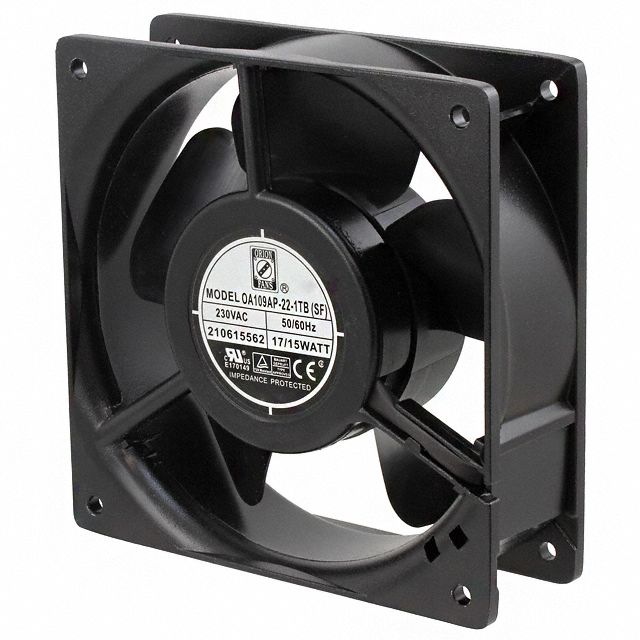

OA109AP-22-1TB(SF)
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 46.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 46.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus
Weight : -
0
1 in stock

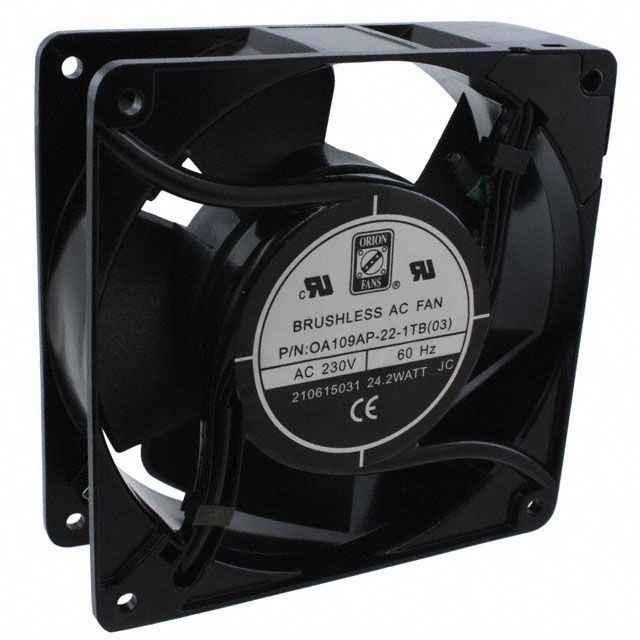

OA109AP-22-1TB03
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Temperature Sensor
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Temperature Sensor
Noise : 42.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
36 in stock

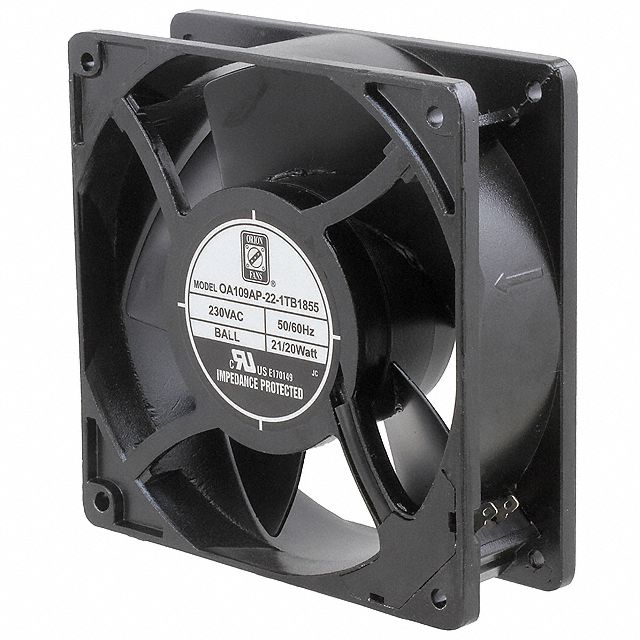

OA109AP-22-1TB1855
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB
Power (Watts) : 10.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 1.3 lbs (589.7g)
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB
Power (Watts) : 10.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 1.3 lbs (589.7g)
0
22 in stock

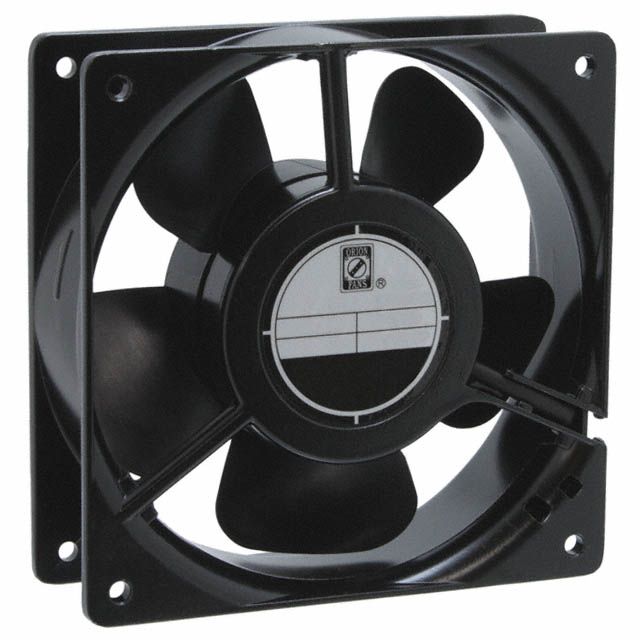

OA109AP-22-1TBIP55
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 106.0 CFM (2.97m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
948 in stock
OA109AP-22-1TBR
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 47.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 47.0 dB
Power (Watts) : 15.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
37 in stock

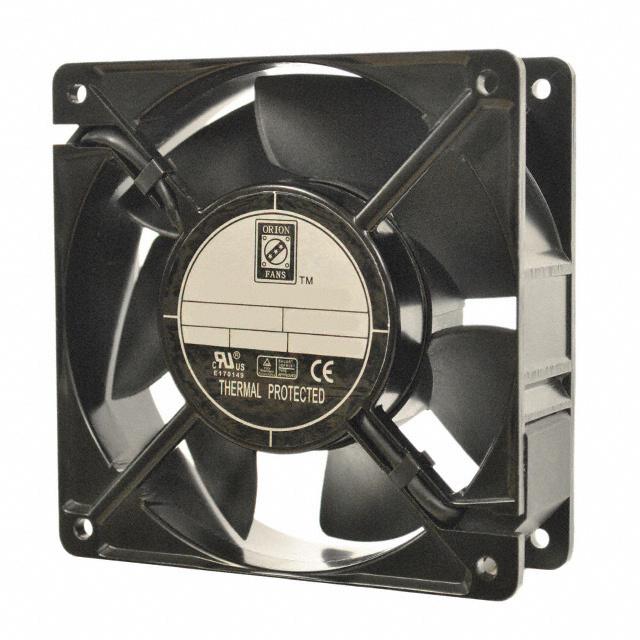

OA109AP-22-1TBXC
Orion Fans
Manufacturer : Orion Fans
Series : OA109XC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 131.0 CFM (3.67m鲁/min)
Static Pressure : 0.490 in H2O (122.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 22.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : cURus, TUV
Weight : -
Series : OA109XC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 131.0 CFM (3.67m鲁/min)
Static Pressure : 0.490 in H2O (122.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 22.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : cURus, TUV
Weight : -
0
2106 in stock

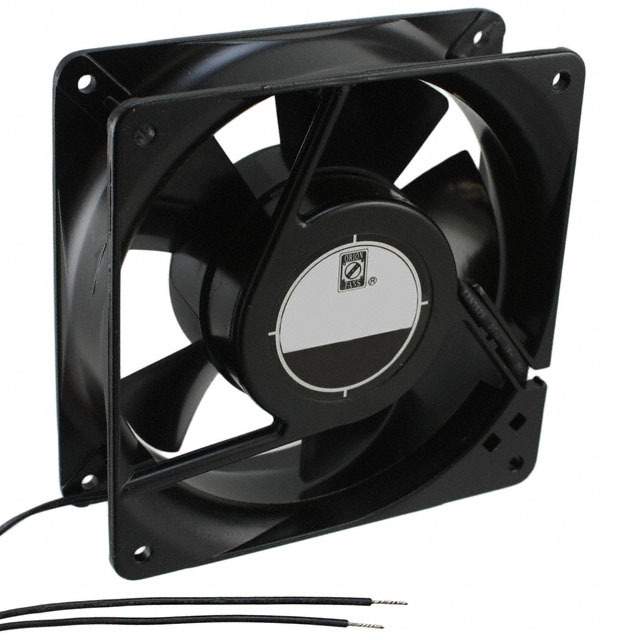

OA109AP-22-1WB
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 110.0 CFM (3.08m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 15.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
734 in stock

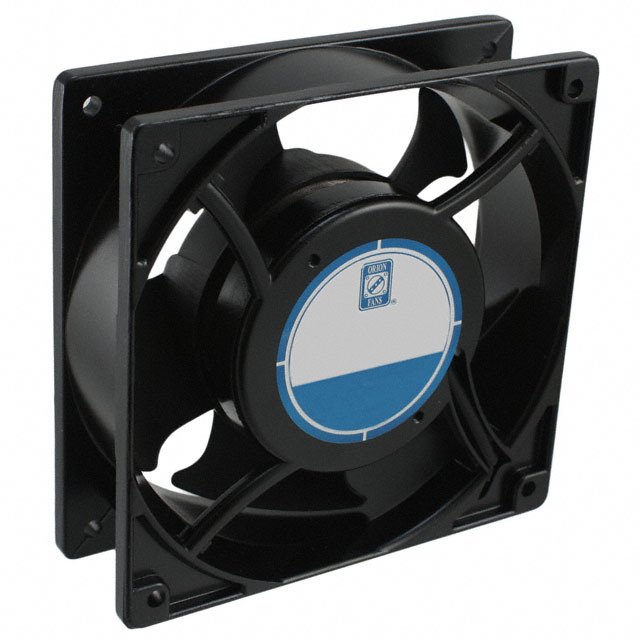

OA109AP-22-2TB
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 71.0 CFM (1.99m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 11.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.00mm
Air Flow : 71.0 CFM (1.99m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 11.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
19 in stock
OA109AP-22-2TBR
Orion Fans
Manufacturer : Orion Fans
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 85.0 CFM (2.38m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 45.0 dB
Power (Watts) : 13.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA109
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 85.0 CFM (2.38m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Reverse Air Flow
Noise : 45.0 dB
Power (Watts) : 13.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
