Part Number
Manufacturer
Description
Unit Price
In Stock

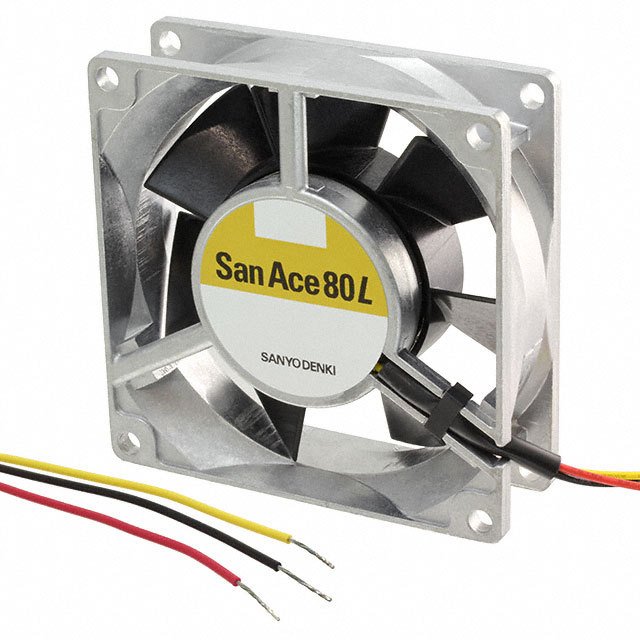

109L0824H401
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.4 CFM (1.05m鲁/min)
Static Pressure : 0.157 in H2O (39.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : 2.16W
RPM : 3000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.331 lb (150.14g)
Series : San Ace 80L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.4 CFM (1.05m鲁/min)
Static Pressure : 0.157 in H2O (39.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : 2.16W
RPM : 3000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.331 lb (150.14g)
0
212 in stock

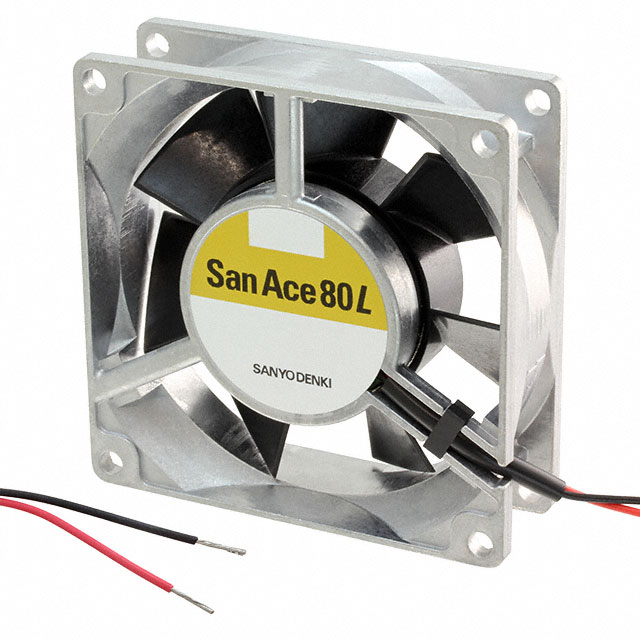

109L0824H402
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.4 CFM (1.05m鲁/min)
Static Pressure : 0.157 in H2O (39.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 2.16W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.331 lb (150.14g)
Series : San Ace 80L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.4 CFM (1.05m鲁/min)
Static Pressure : 0.157 in H2O (39.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 2.16W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.331 lb (150.14g)
0
13 in stock
109L0824S401
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 42.4 CFM (1.19m鲁/min)
Static Pressure : 0.200 in H2O (49.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 37.0 dB(A)
Power (Watts) : 2.64W
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.331 lb (150.14g)
Series : San Ace 80L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 42.4 CFM (1.19m鲁/min)
Static Pressure : 0.200 in H2O (49.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 37.0 dB(A)
Power (Watts) : 2.64W
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.331 lb (150.14g)
0
20 in stock

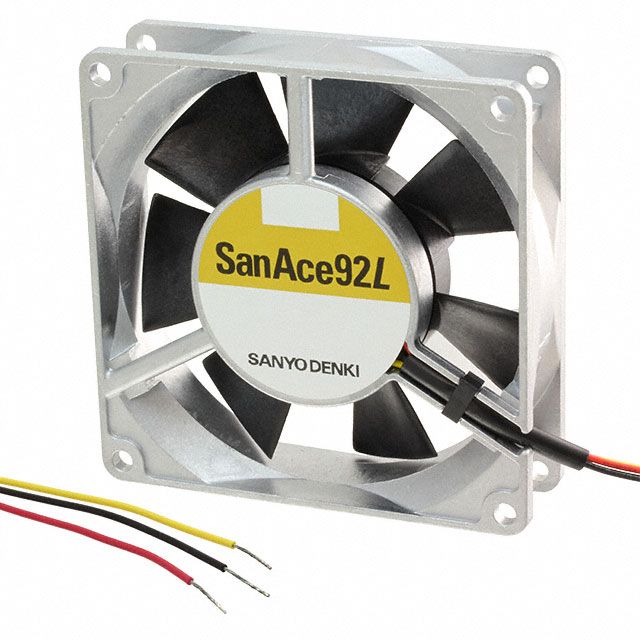

109L0912H401
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.7 CFM (1.36m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 33.0 dB(A)
Power (Watts) : 2.52W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.7 CFM (1.36m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 33.0 dB(A)
Power (Watts) : 2.52W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
0
31 in stock
109L0912H402
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.7 CFM (1.36m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 2.52W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.7 CFM (1.36m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 2.52W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
0
40 in stock
109L0912S401
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 59.7 CFM (1.67m鲁/min)
Static Pressure : 0.267 in H2O (66.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 39.0 dB(A)
Power (Watts) : 3.84W
RPM : 3500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 59.7 CFM (1.67m鲁/min)
Static Pressure : 0.267 in H2O (66.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 39.0 dB(A)
Power (Watts) : 3.84W
RPM : 3500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
0
20 in stock

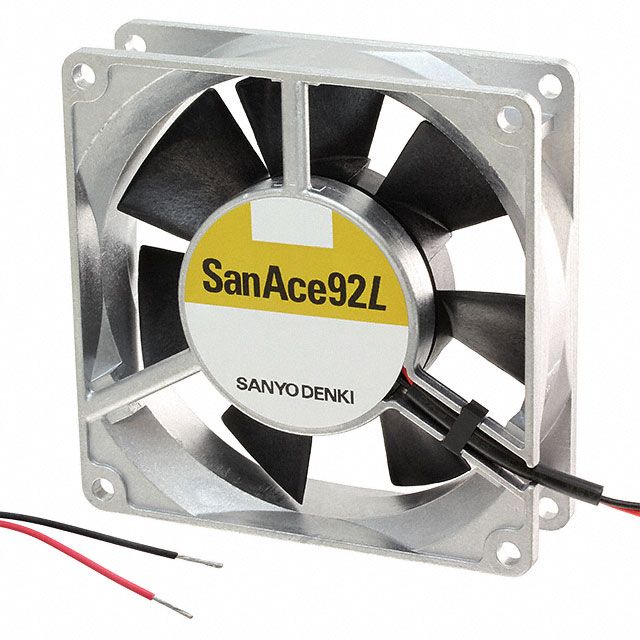

109L0924H402
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 59.7 CFM (1.67m鲁/min)
Static Pressure : 0.267 in H2O (66.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB(A)
Power (Watts) : 3.84W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
Series : San Ace 92L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 59.7 CFM (1.67m鲁/min)
Static Pressure : 0.267 in H2O (66.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB(A)
Power (Watts) : 3.84W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UR
Weight : 0.375 lb (170.1g)
0
27 in stock

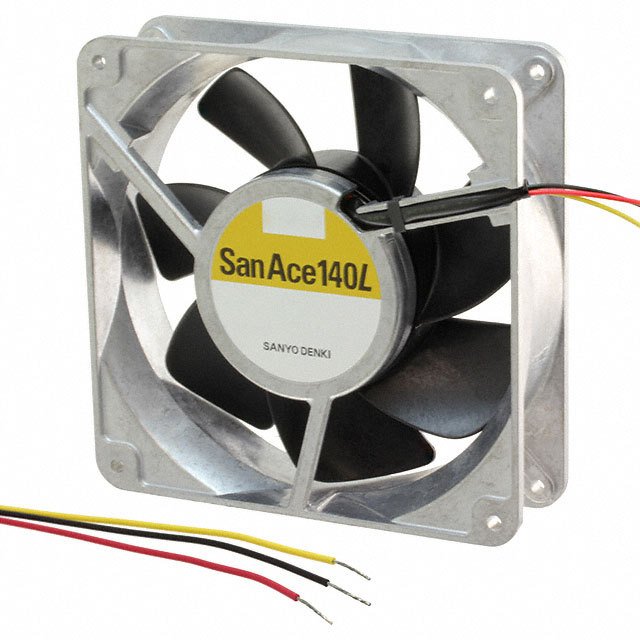

109L1424H101
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 140L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 140mm L x 140mm H
Width : 38.00mm
Air Flow : 158.9 CFM (4.45m鲁/min)
Static Pressure : 0.394 in H2O (98.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 46.0 dB(A)
Power (Watts) : 8.88W
RPM : 2600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 1.3 lbs (589.7g)
Series : San Ace 140L
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 140mm L x 140mm H
Width : 38.00mm
Air Flow : 158.9 CFM (4.45m鲁/min)
Static Pressure : 0.394 in H2O (98.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 46.0 dB(A)
Power (Watts) : 8.88W
RPM : 2600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 1.3 lbs (589.7g)
0
42 in stock
109L5724H501
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 172L
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 13.92W
RPM : 3050 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 172L
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 13.92W
RPM : 3050 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
9 in stock
109L5748H501
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 172L
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 13.44W
RPM : 3050 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 172L
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 13.44W
RPM : 3050 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
120 in stock

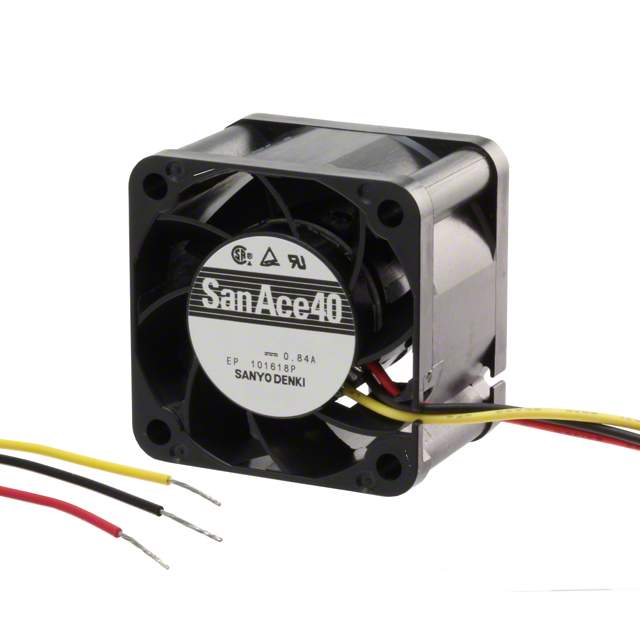

109P0405F3013
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : 0.236 in H2O (58.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.40W
RPM : 6700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : 0.236 in H2O (58.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.40W
RPM : 6700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
0
101 in stock
109P0405F601
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.5 CFM (0.182m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.25W
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.5 CFM (0.182m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.25W
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
0
115 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
