Part Number
Manufacturer
Description
Unit Price
In Stock

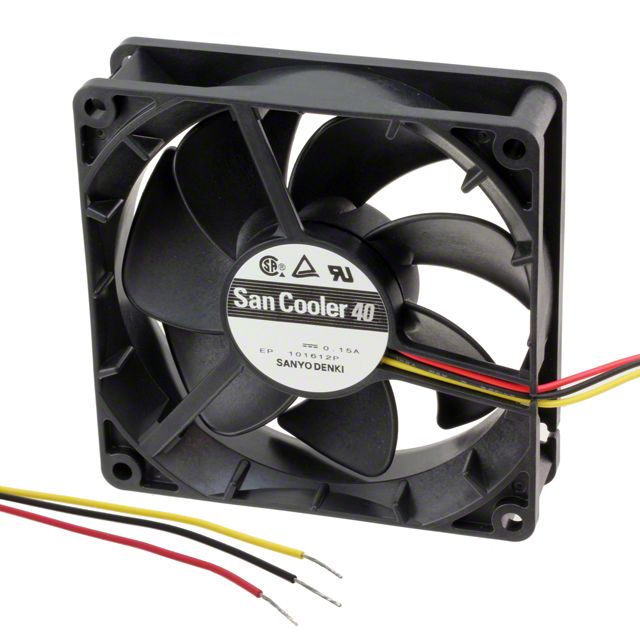

109P0412B301
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 13.4 CFM (0.375m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 40.0 dB(A)
Power (Watts) : 3.36W
RPM : 10300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 13.4 CFM (0.375m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 40.0 dB(A)
Power (Watts) : 3.36W
RPM : 10300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
0
249 in stock
109P0412B3013
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 13.4 CFM (0.375m鲁/min)
Static Pressure : 0.574 in H2O (143.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 40.0 dB(A)
Power (Watts) : 3.36W
RPM : 10300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 13.4 CFM (0.375m鲁/min)
Static Pressure : 0.574 in H2O (143.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 40.0 dB(A)
Power (Watts) : 3.36W
RPM : 10300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
0
62 in stock

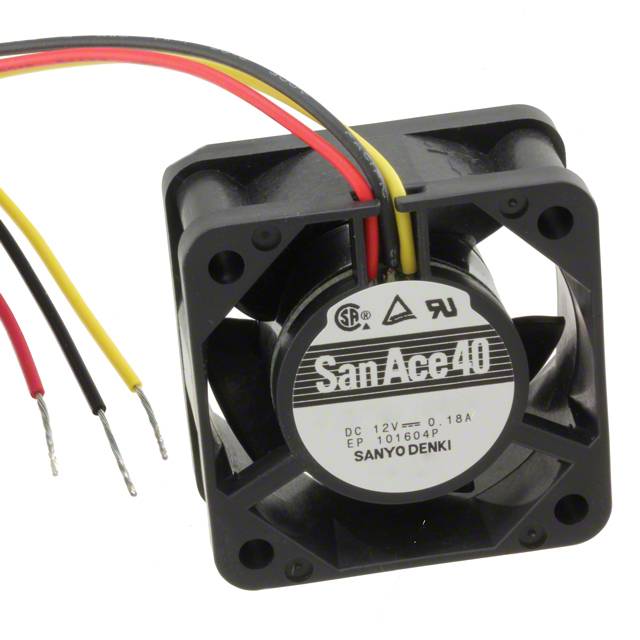

109P0412D601
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.497 in H2O (124.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 42.0 dB(A)
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.497 in H2O (124.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 42.0 dB(A)
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
330 in stock
109P0412D602
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.497 in H2O (124.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.497 in H2O (124.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB(A)
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
1207 in stock

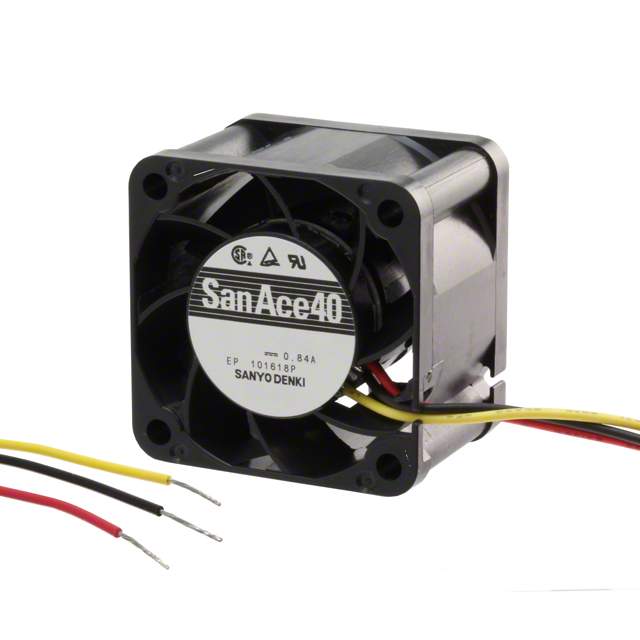

109P0412D6D01
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.497 in H2O (124.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 42.0 dB(A)
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.497 in H2O (124.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 42.0 dB(A)
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
47 in stock
109P0412E601
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 9.2 CFM (0.258m鲁/min)
Static Pressure : 0.351 in H2O (87.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 37.0 dB(A)
Power (Watts) : 1.80W
RPM : 9200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 9.2 CFM (0.258m鲁/min)
Static Pressure : 0.351 in H2O (87.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 37.0 dB(A)
Power (Watts) : 1.80W
RPM : 9200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
301 in stock
109P0412F301
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.26W
RPM : 6700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.26W
RPM : 6700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
128 in stock

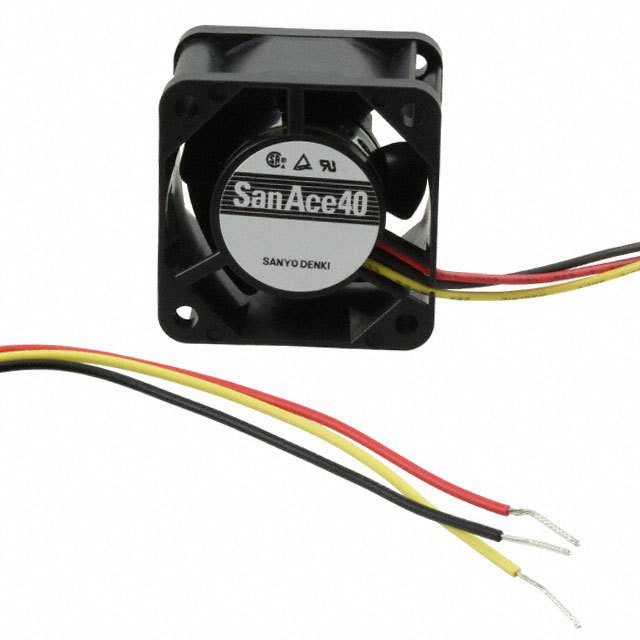

109P0412F3013
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : 0.236 in H2O (58.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.26W
RPM : 6700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : 0.236 in H2O (58.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.26W
RPM : 6700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
0
407 in stock
109P0412F302
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.26W
RPM : 6700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 8.6 CFM (0.241m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.26W
RPM : 6700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
193 in stock
109P0412F601
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.5 CFM (0.182m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.08W
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.5 CFM (0.182m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.08W
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
1 in stock

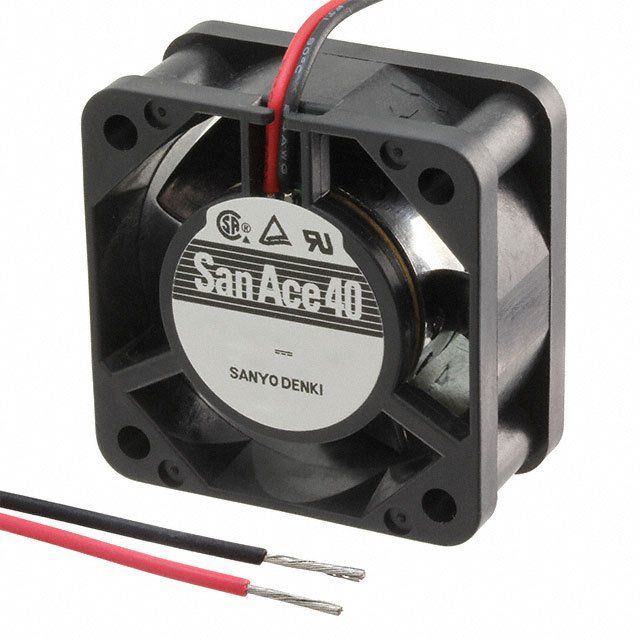

109P0412F602
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.5 CFM (0.182m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.08W
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.5 CFM (0.182m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.08W
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
45 in stock
109P0412G301
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 42.0 dB(A)
Power (Watts) : 3.72W
RPM : 11500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 42.0 dB(A)
Power (Watts) : 3.72W
RPM : 11500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
0
810 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
