Welcome to Weijie Semiconductor
Part Number
Manufacturer
Description
Unit Price
In Stock
109P0412H602
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.0 CFM (0.224m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 1.32W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.0 CFM (0.224m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 1.32W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.099 lb (44.91g)
0
238 in stock
109P0412H701
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.56W
RPM : 7700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : 1.56W
RPM : 7700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
1713 in stock

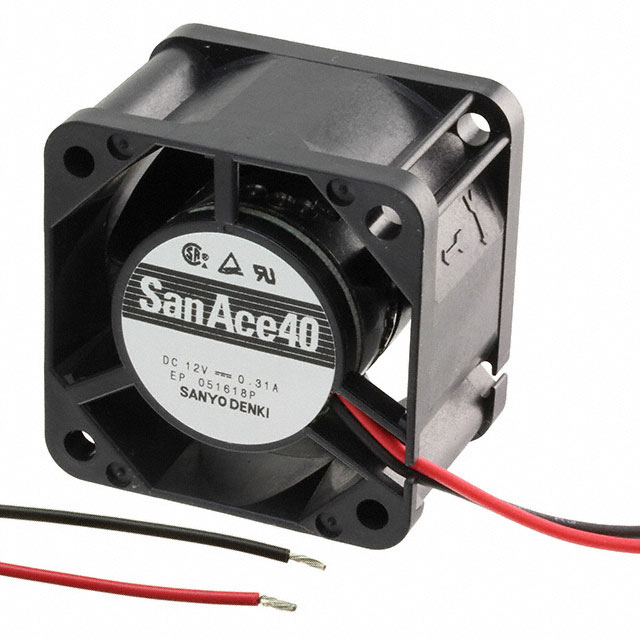

109P0412H702
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.56W
RPM : 7700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.56W
RPM : 7700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
175 in stock

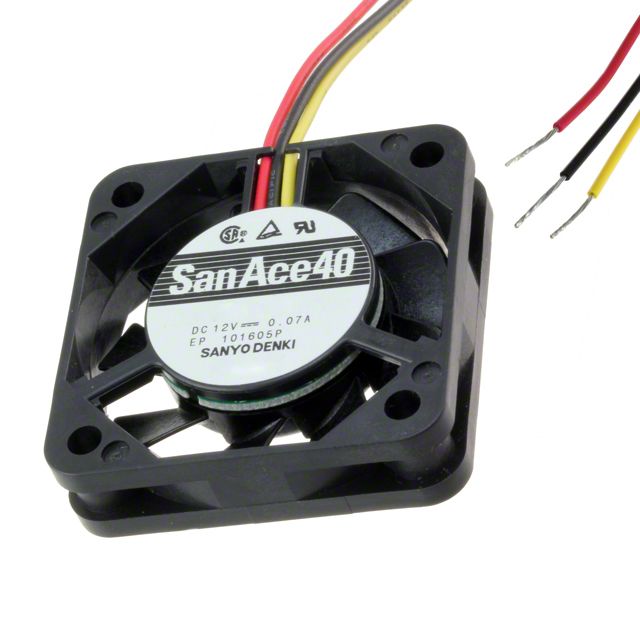

109P0412H901
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB(A)
Power (Watts) : 840mW
RPM : 6200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB(A)
Power (Watts) : 840mW
RPM : 6200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
0
589 in stock

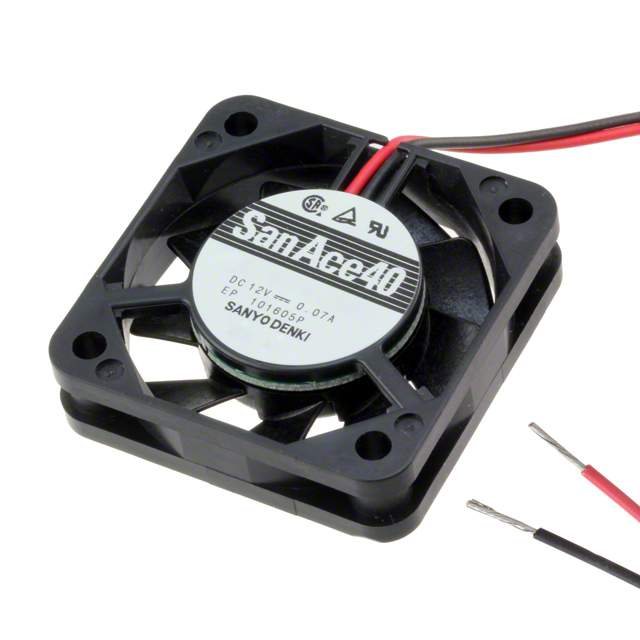

109P0412H902
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : 840mW
RPM : 6200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB(A)
Power (Watts) : 840mW
RPM : 6200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
0
291 in stock
109P0412H9D01
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 25.0 dB(A)
Power (Watts) : 840mW
RPM : 6200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 25.0 dB(A)
Power (Watts) : 840mW
RPM : 6200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
0
180 in stock
109P0412J301
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CSA, TUV, UL
Weight : -
0
342 in stock
109P0412J3013
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 16.2 CFM (0.454m鲁/min)
Static Pressure : 0.843 in H2O (210.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 44.0 dB(A)
Power (Watts) : 4.20W
RPM : 12500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 16.2 CFM (0.454m鲁/min)
Static Pressure : 0.843 in H2O (210.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 44.0 dB(A)
Power (Watts) : 4.20W
RPM : 12500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
0
2616 in stock
109P0412J3023
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 16.2 CFM (0.454m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 4.20W
RPM : 12500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 16.2 CFM (0.454m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 4.20W
RPM : 12500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : -
0
260 in stock
109P0412K301
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CSA, TUV, UL
Weight : -
0
124 in stock

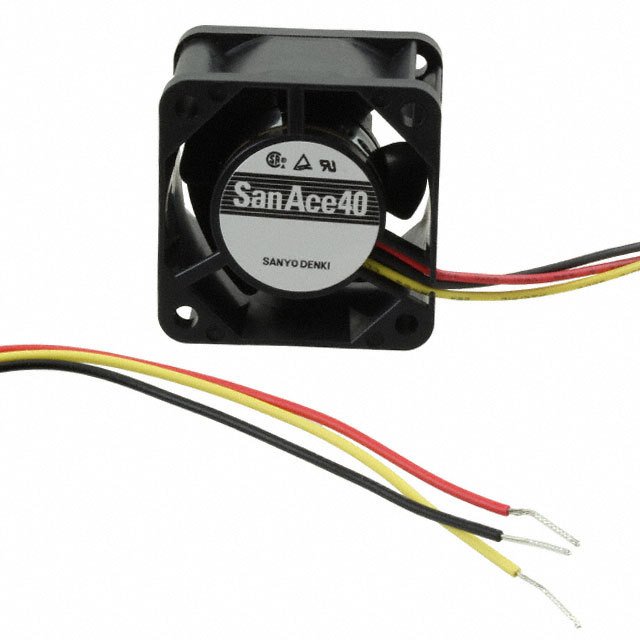

109P0412K3013
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 20.8 CFM (0.582m鲁/min)
Static Pressure : 1.365 in H2O (340.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 50.0 dB(A)
Power (Watts) : 6.60W
RPM : 15500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 20.8 CFM (0.582m鲁/min)
Static Pressure : 1.365 in H2O (340.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 50.0 dB(A)
Power (Watts) : 6.60W
RPM : 15500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.115 lb (52.16g)
0
865 in stock

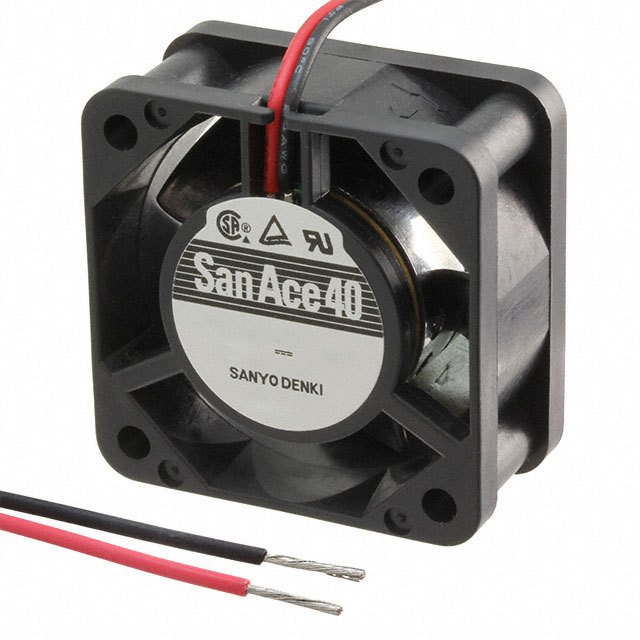

109P0412K3023
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 20.8 CFM (0.582m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 6.60W
RPM : 15500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
Series : San Ace 40
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 20.8 CFM (0.582m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 6.60W
RPM : 15500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
27 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
