Part Number

Manufacturer

Description

Unit Price

In Stock

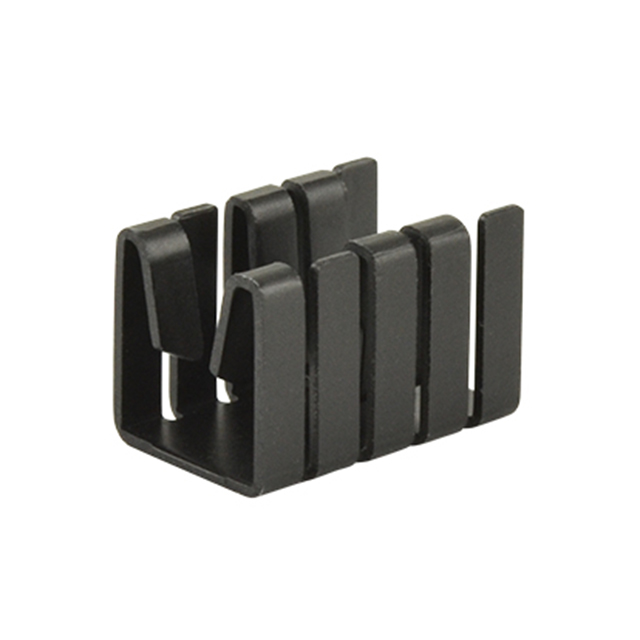

HSS-B20-061H-02

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.748" (19.00mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 7.24°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.92°C/W
Material : Aluminum
Material Finish : Black Anodized

936 in stock

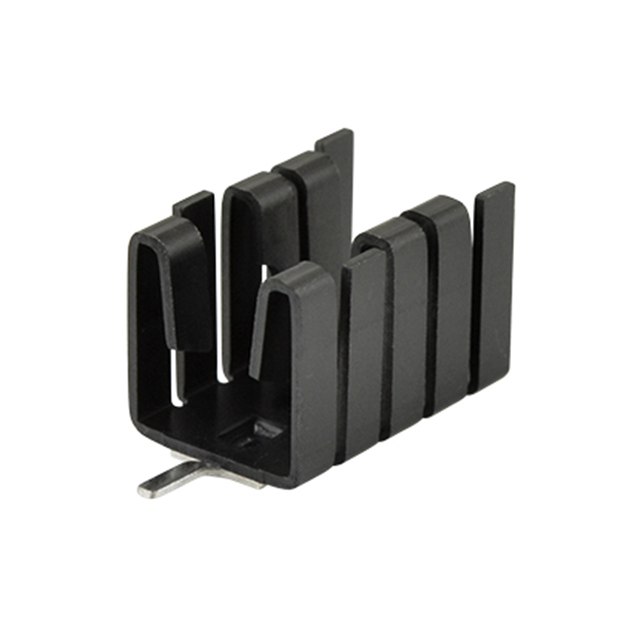

HSS-B20-061H-03

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 0.510" (13.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.748" (19.00mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.72°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.86°C/W
Material : Aluminum
Material Finish : Black Anodized

5152 in stock

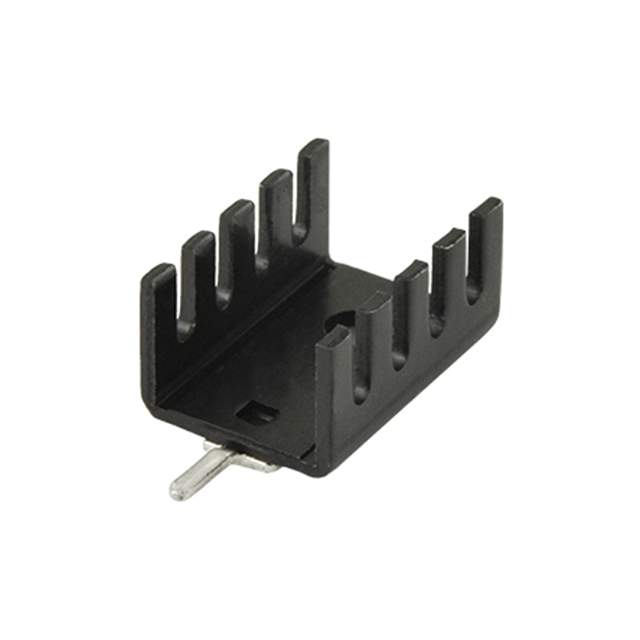

HSS-B20-0635H

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.520" (13.21mm)
Width : 0.250" (6.35mm)
Diameter : -
Height Off Base (Height of Fin) : 0.748" (19.00mm)
Power Dissipation @ Temperature Rise : 2.6W @ 75°C
Thermal Resistance @ Forced Air Flow : 10.68°C/W @ 200 LFM
Thermal Resistance @ Natural : 28.85°C/W
Material : Aluminum
Material Finish : Black Anodized

898 in stock

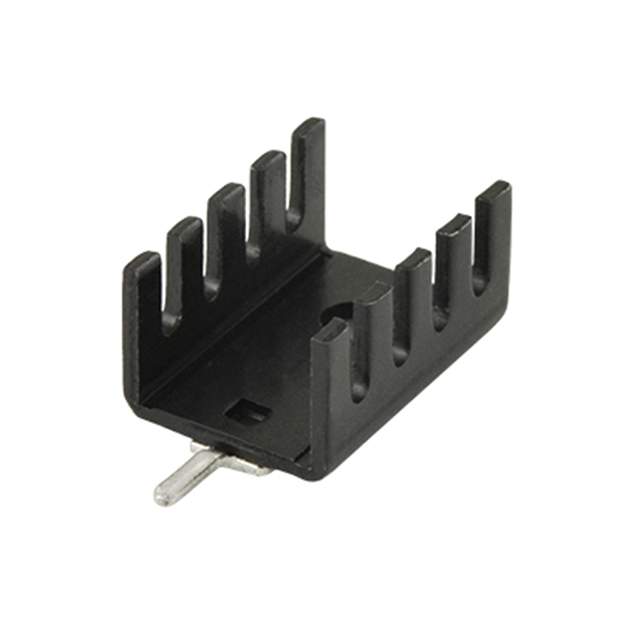

HSS-B20-0635H-01

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.520" (13.21mm)
Width : 0.375" (9.53mm)
Diameter : -
Height Off Base (Height of Fin) : 0.748" (19.00mm)
Power Dissipation @ Temperature Rise : 2.7W @ 75°C
Thermal Resistance @ Forced Air Flow : 9.51°C/W @ 200 LFM
Thermal Resistance @ Natural : 27.78°C/W
Material : Aluminum
Material Finish : Black Anodized

876 in stock

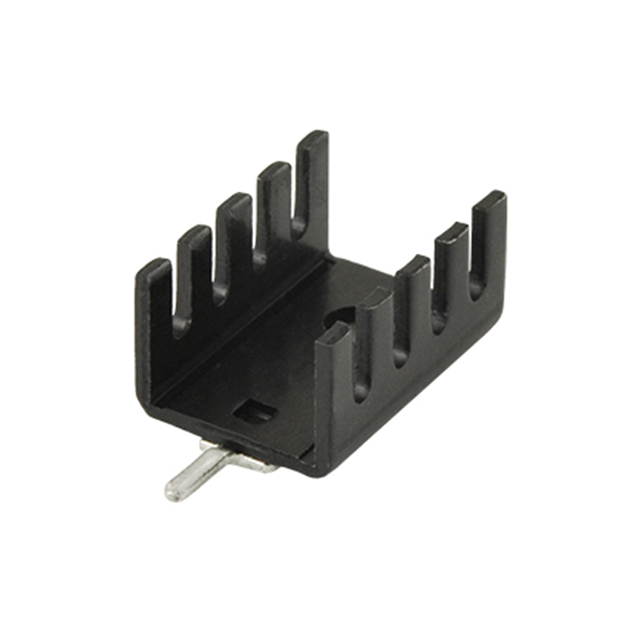

HSS-B20-0635H-02

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.520" (13.21mm)
Width : 0.500" (12.70mm)
Diameter : -
Height Off Base (Height of Fin) : 0.748" (19.00mm)
Power Dissipation @ Temperature Rise : 2.6W @ 75°C
Thermal Resistance @ Forced Air Flow : 10.49°C/W @ 200 LFM
Thermal Resistance @ Natural : 29.09°C/W
Material : Aluminum
Material Finish : Black Anodized

918 in stock

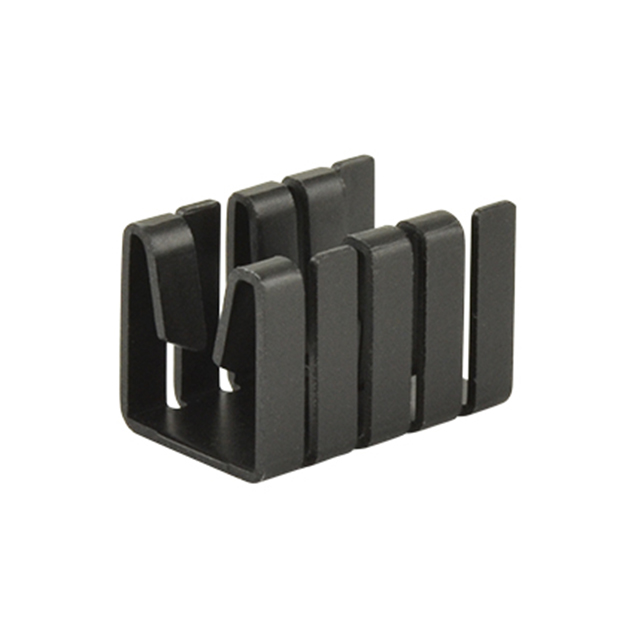

HSS-B20-065V-02

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.748" (19.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 7.24°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.92°C/W
Material : Aluminum
Material Finish : Black Anodized

932 in stock

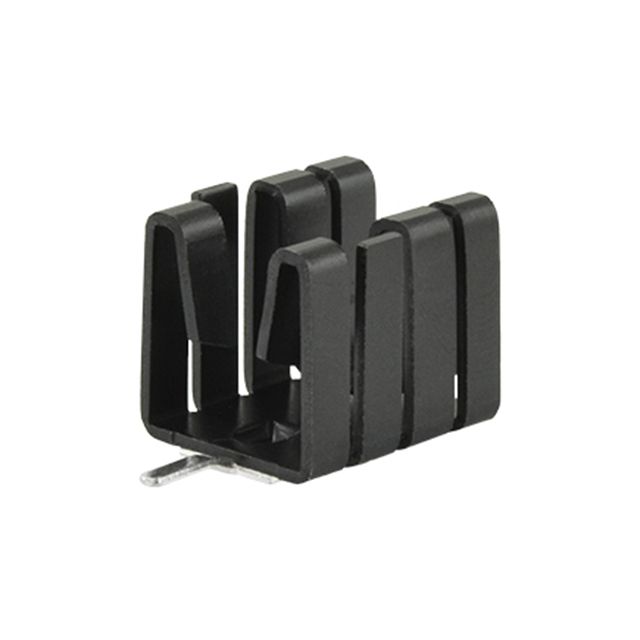

HSS-B20-0953H-01

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.590" (15.00mm)
Power Dissipation @ Temperature Rise : 2.3W @ 75°C
Thermal Resistance @ Forced Air Flow : 11.04°C/W @ 200 LFM
Thermal Resistance @ Natural : 33.28°C/W
Material : Aluminum
Material Finish : Black Anodized

996 in stock

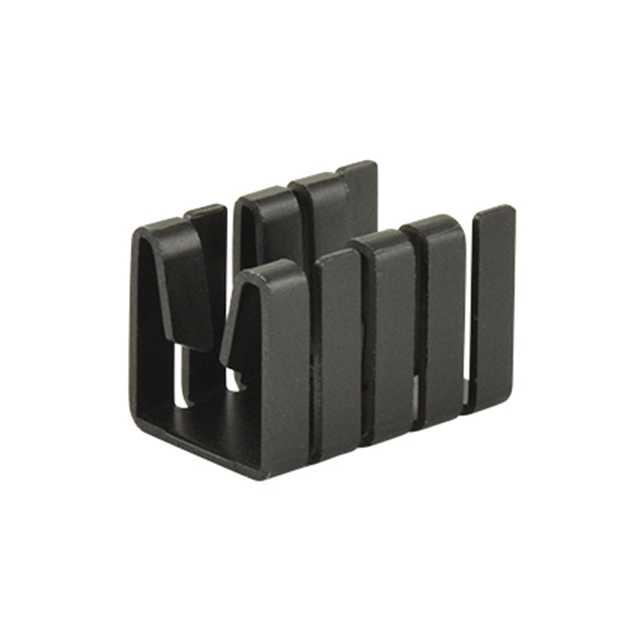

HSS-B20-0953H-02

CUI, Inc.

979 in stock

HSS-B20-095H

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.441" (11.20mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.626" (15.90mm)
Power Dissipation @ Temperature Rise : 4.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.34°C/W
Material : Aluminum
Material Finish : Black Anodized

487 in stock

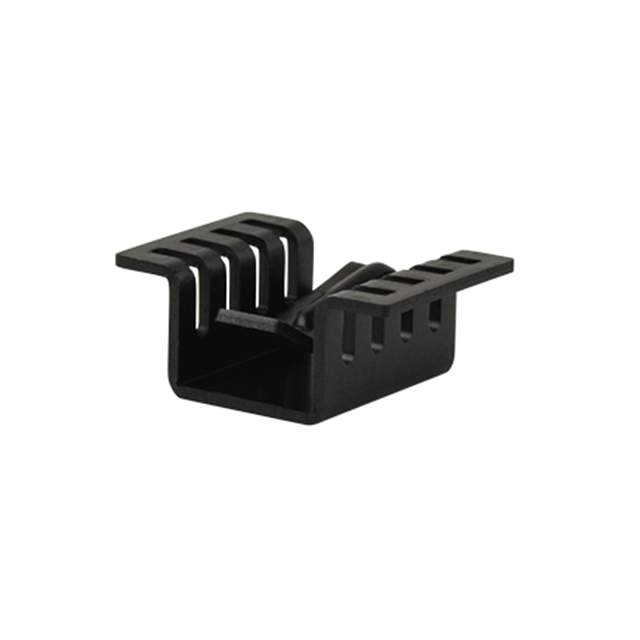

HSS-B20-CP-01

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Clip
Shape : Rectangular, Fins
Length : 0.375" (9.53mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.740" (18.79mm)
Power Dissipation @ Temperature Rise : 2.6W @ 75°C
Thermal Resistance @ Forced Air Flow : 6.32°C/W @ 200 LFM
Thermal Resistance @ Natural : 28.85°C/W
Material : Aluminum
Material Finish : Black Anodized

4618 in stock

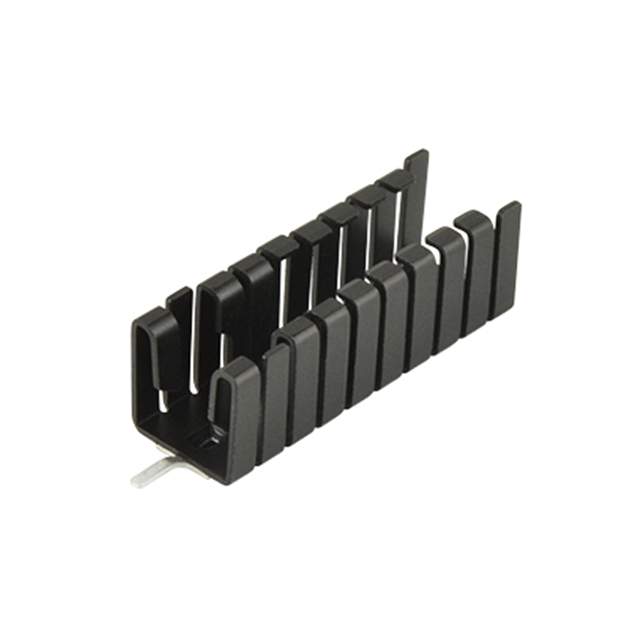

HSS-B20-NP

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.0W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.01°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.63°C/W
Material : Aluminum
Material Finish : Black Anodized

355 in stock

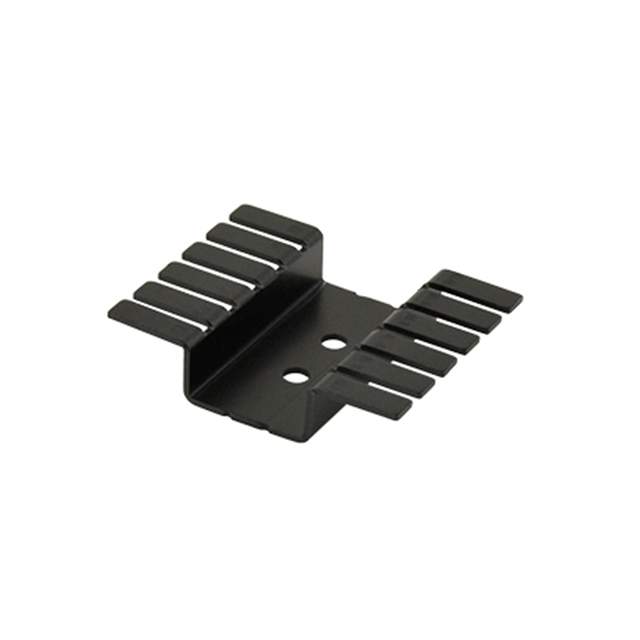

HSS-B20-NP-04

CUI, Inc.

Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 1.750" (44.45mm)
Diameter : -
Height Off Base (Height of Fin) : 0.370" (9.40mm)
Power Dissipation @ Temperature Rise : 6.5W @ 75°C
Thermal Resistance @ Forced Air Flow : 3.76°C/W @ 200 LFM
Thermal Resistance @ Natural : 11.54°C/W
Material : Aluminum
Material Finish : Black Anodized

1386 in stock
