Welcome to Weijie Semiconductor
Part Number
Manufacturer
Description
Unit Price
In Stock

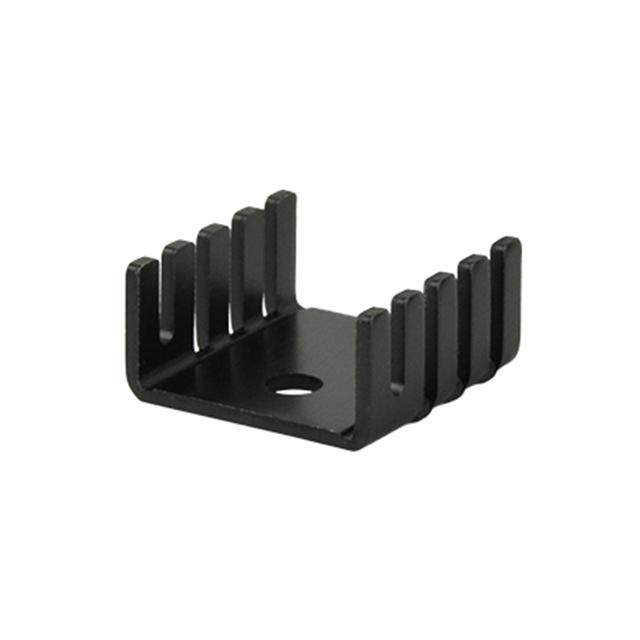

HSS-B20-NP-06
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Square, Fins
Length : 0.748" (19.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 7.51°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.32°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Square, Fins
Length : 0.748" (19.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 7.51°C/W @ 200 LFM
Thermal Resistance @ Natural : 26.32°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1655 in stock
HSS-B20-NP-07
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.591" (15.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.3W @ 75°C
Thermal Resistance @ Forced Air Flow : 11.04°C/W @ 200 LFM
Thermal Resistance @ Natural : 33.28°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.591" (15.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.3W @ 75°C
Thermal Resistance @ Forced Air Flow : 11.04°C/W @ 200 LFM
Thermal Resistance @ Natural : 33.28°C/W
Material : Aluminum
Material Finish : Black Anodized
0
994 in stock

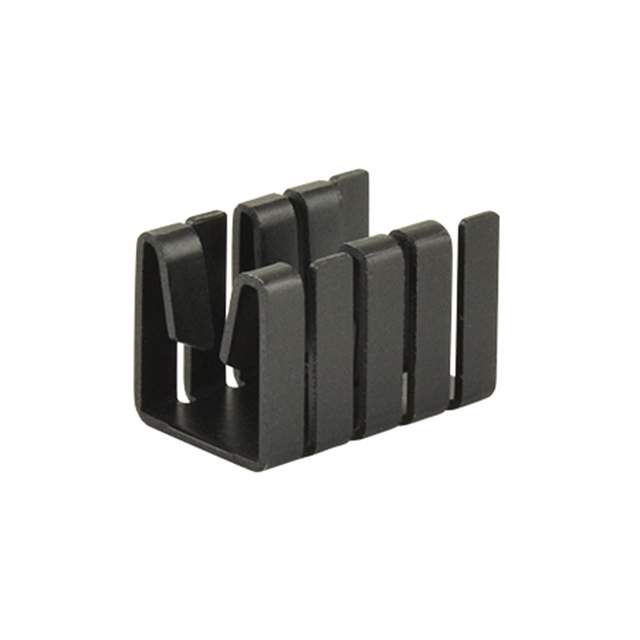

HSS-B20-NP-10
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.748" (19.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 7.24°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.92°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.748" (19.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.9W @ 75°C
Thermal Resistance @ Forced Air Flow : 7.24°C/W @ 200 LFM
Thermal Resistance @ Natural : 25.92°C/W
Material : Aluminum
Material Finish : Black Anodized
0
948 in stock

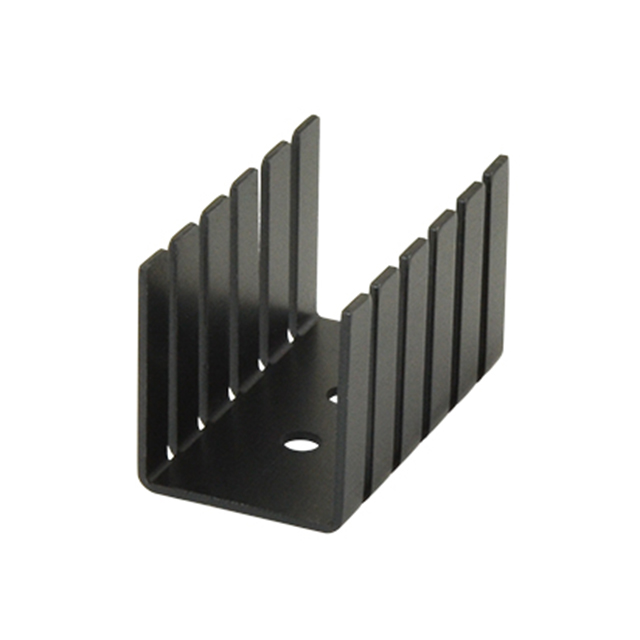

HSS-B20-NP-12
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 0.700" (17.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.850" (21.60mm)
Power Dissipation @ Temperature Rise : 6.8W @ 75°C
Thermal Resistance @ Forced Air Flow : 3.47°C/W @ 200 LFM
Thermal Resistance @ Natural : 14.33°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.450" (36.83mm)
Width : 0.700" (17.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.850" (21.60mm)
Power Dissipation @ Temperature Rise : 6.8W @ 75°C
Thermal Resistance @ Forced Air Flow : 3.47°C/W @ 200 LFM
Thermal Resistance @ Natural : 14.33°C/W
Material : Aluminum
Material Finish : Black Anodized
0
64 in stock

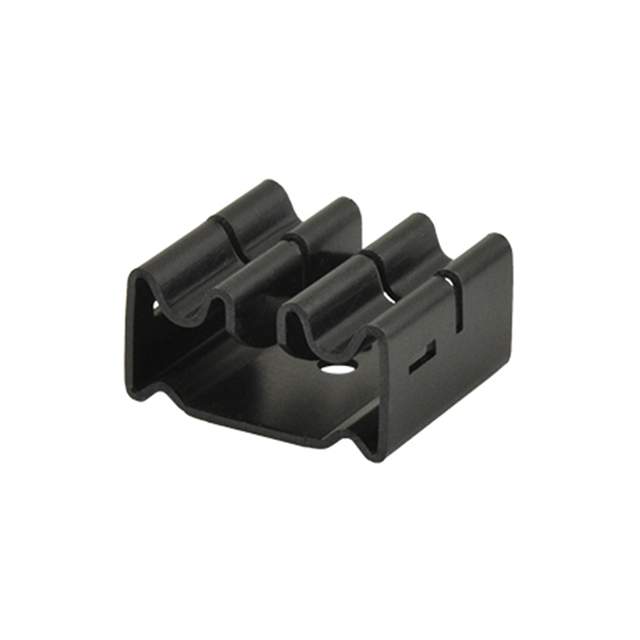

HSS-B20-NP-15
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.625" (15.90mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.440" (11.18mm)
Power Dissipation @ Temperature Rise : 4.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.34°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.625" (15.90mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.440" (11.18mm)
Power Dissipation @ Temperature Rise : 4.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 18.34°C/W
Material : Aluminum
Material Finish : Black Anodized
0
474 in stock
HSS-B20-NPR-01
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.2W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.88°C/W @ 200 LFM
Thermal Resistance @ Natural : 17.74°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.2W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.88°C/W @ 200 LFM
Thermal Resistance @ Natural : 17.74°C/W
Material : Aluminum
Material Finish : Black Anodized
0
944 in stock
HSS-B20-NPR-02
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and Board Mounts
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.180" (29.97mm)
Power Dissipation @ Temperature Rise : 5.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 4.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 14.71°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and Board Mounts
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.180" (29.97mm)
Power Dissipation @ Temperature Rise : 5.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 4.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 14.71°C/W
Material : Aluminum
Material Finish : Black Anodized
0
882 in stock

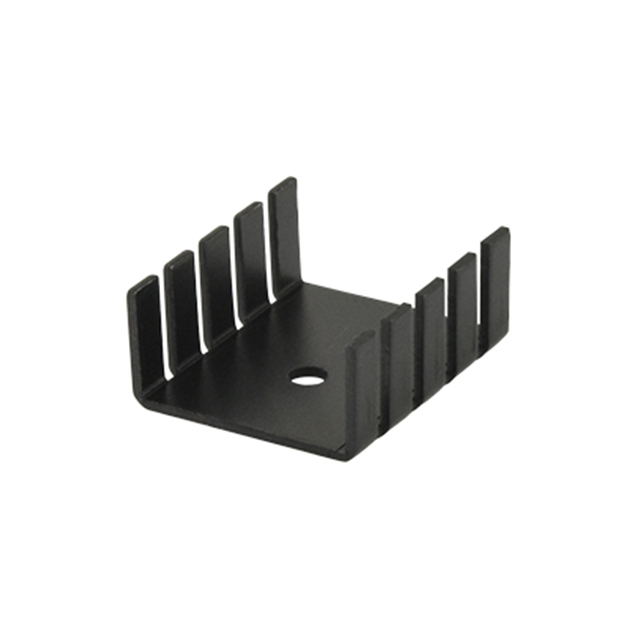

HSS-B20-NPS-01
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.2W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.88°C/W @ 200 LFM
Thermal Resistance @ Natural : 17.74°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.180" (29.97mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 4.2W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.88°C/W @ 200 LFM
Thermal Resistance @ Natural : 17.74°C/W
Material : Aluminum
Material Finish : Black Anodized
0
914 in stock

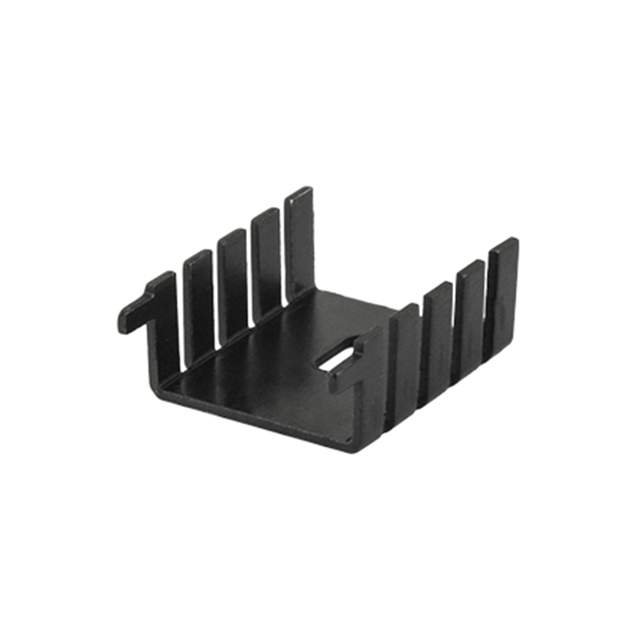

HSS-B20-NPS-02
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and Board Mounts
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.180" (29.97mm)
Power Dissipation @ Temperature Rise : 5.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 4.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 14.71°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and Board Mounts
Shape : Rectangular, Fins
Length : 0.500" (12.70mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 1.180" (29.97mm)
Power Dissipation @ Temperature Rise : 5.1W @ 75°C
Thermal Resistance @ Forced Air Flow : 4.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 14.71°C/W
Material : Aluminum
Material Finish : Black Anodized
0
841 in stock

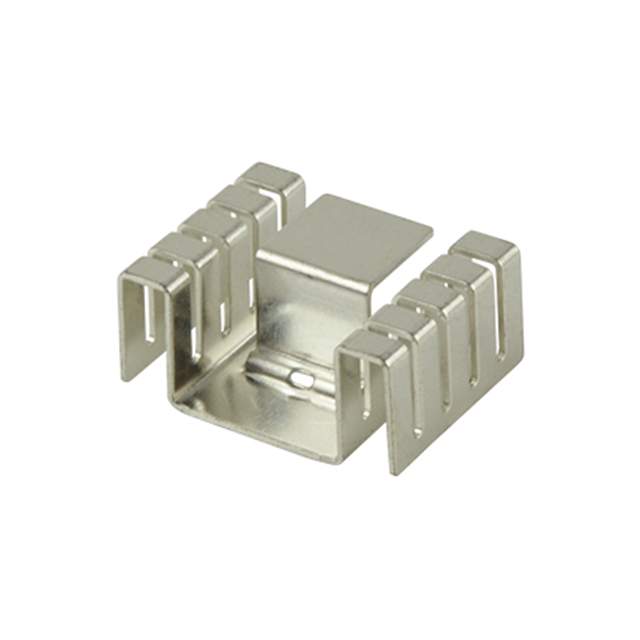

HSS-C2540-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.763" (19.38mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 3.8W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 21.90°C/W
Material : Copper
Material Finish : Tin
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : -
Shape : Rectangular, Fins
Length : 0.763" (19.38mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.450" (11.43mm)
Power Dissipation @ Temperature Rise : 3.8W @ 75°C
Thermal Resistance @ Forced Air Flow : 5.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 21.90°C/W
Material : Copper
Material Finish : Tin
0
1962 in stock

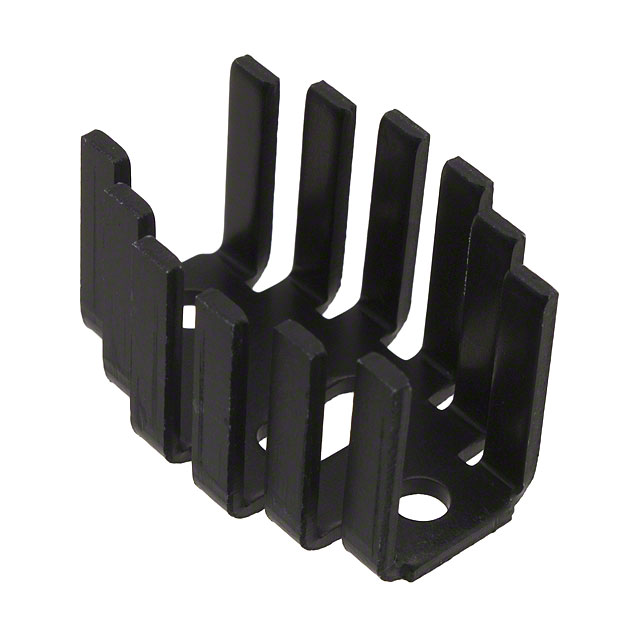

LAE66A3CB
CTS Electronic Components
Manufacturer : CTS Thermal Management Products
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-126, TO-220
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.310" (33.27mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 50.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-126, TO-220
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.310" (33.27mm)
Width : 0.900" (22.86mm)
Diameter : -
Height Off Base (Height of Fin) : 0.750" (19.05mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 7.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 50.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1392 in stock
LTN20069
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : Penguin
Part Status : Active
Type : Board Level
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Fins
Length : 0.650" (16.51mm)
Width : 0.653" (16.59mm)
Diameter : -
Height Off Base (Height of Fin) : 0.350" (8.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : Penguin
Part Status : Active
Type : Board Level
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Fins
Length : 0.650" (16.51mm)
Width : 0.653" (16.59mm)
Diameter : -
Height Off Base (Height of Fin) : 0.350" (8.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 8.00°C/W @ 500 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
23720 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
