Part Number

Manufacturer

Description

Unit Price

In Stock

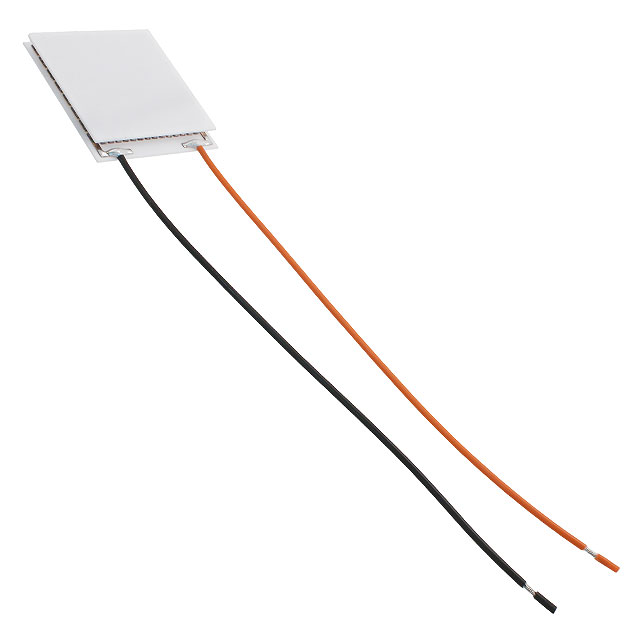

430141-510

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 4.14mm
Qmax @ Th : 33.0W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 14.5V
Resistance : 3.49 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

459 in stock

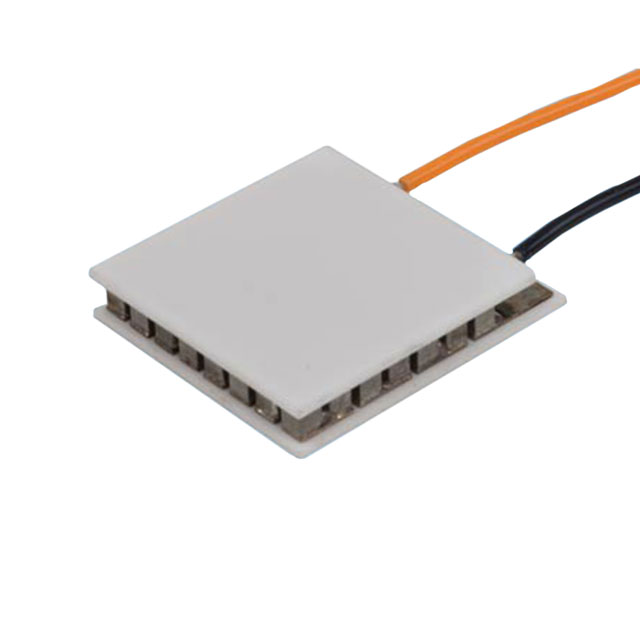

430141-512

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 4.14mm
Qmax @ Th : 33.0W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 14.5V
Resistance : 3.49 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

20 in stock

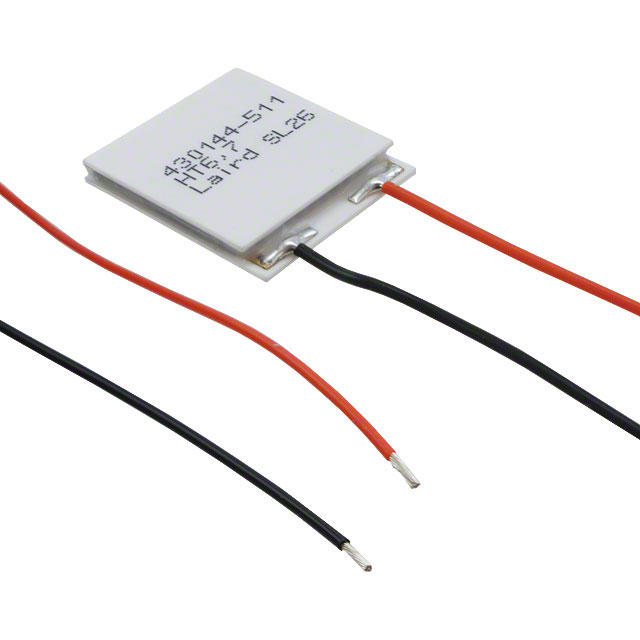

430144-511

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.04mm x 29.97mm x 4.09mm
Qmax @ Th : 18.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 8.1V
Resistance : 1.95 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

31 in stock

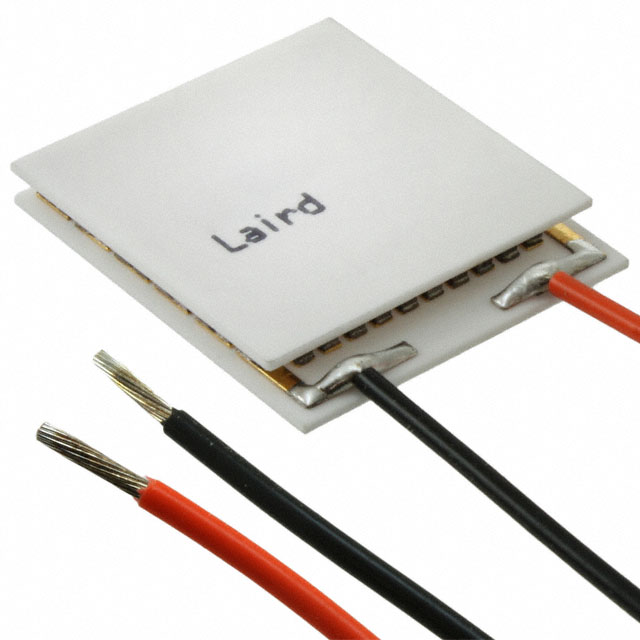

430144-512

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.81mm
Qmax @ Th : 29.2W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8V
Resistance : 1.22 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

58 in stock

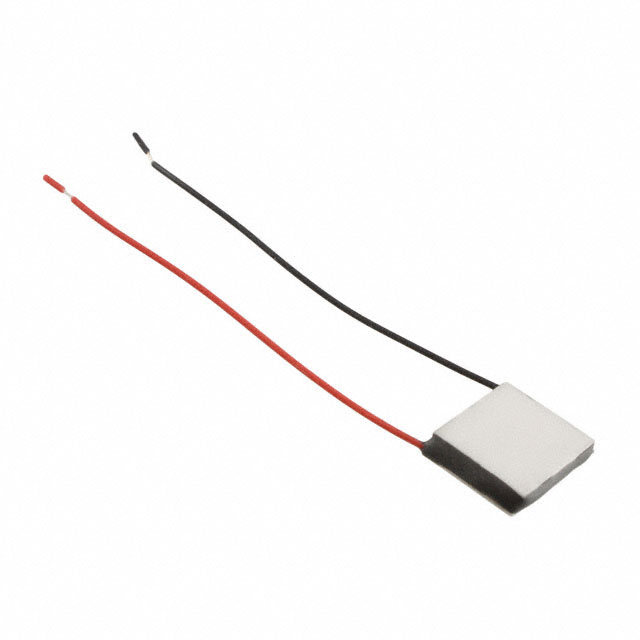

430146-508

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : FC
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : Lead Wires, Sealed - Epoxy

0

100 in stock

430160-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.33mm
Qmax @ Th : 72.9W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.58 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

165 in stock

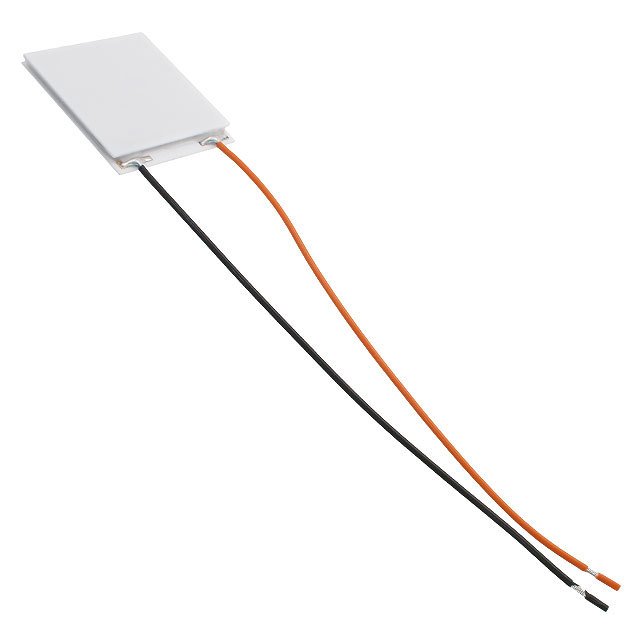

430160-504

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.33mm
Qmax @ Th : 72.9W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.58 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

232 in stock

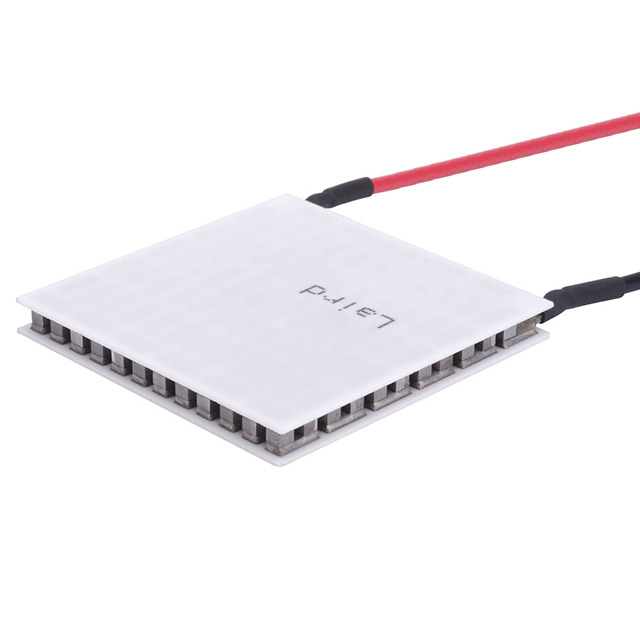

430165-507

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 43.94mm x 43.94mm x 4.57mm
Qmax @ Th : 68.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 8.1V
Resistance : 530 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

5 in stock

430263-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 2.18mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

2 in stock

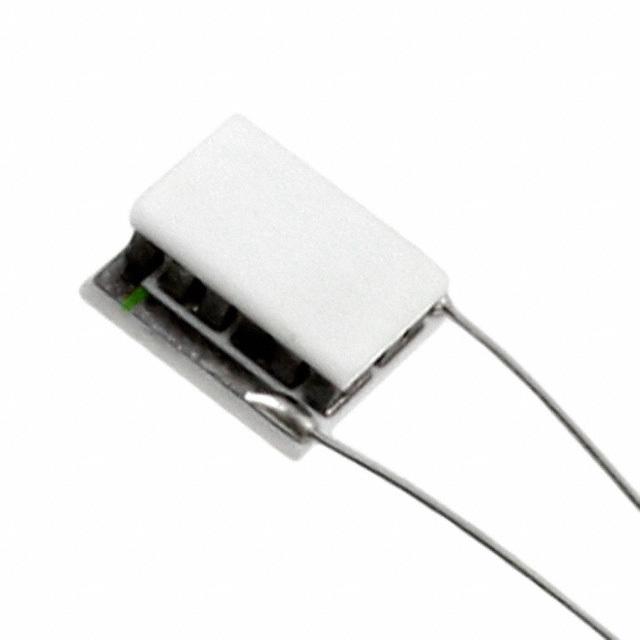

430263-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 2.51mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

100 in stock

430263-503

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 2.51mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

423 in stock

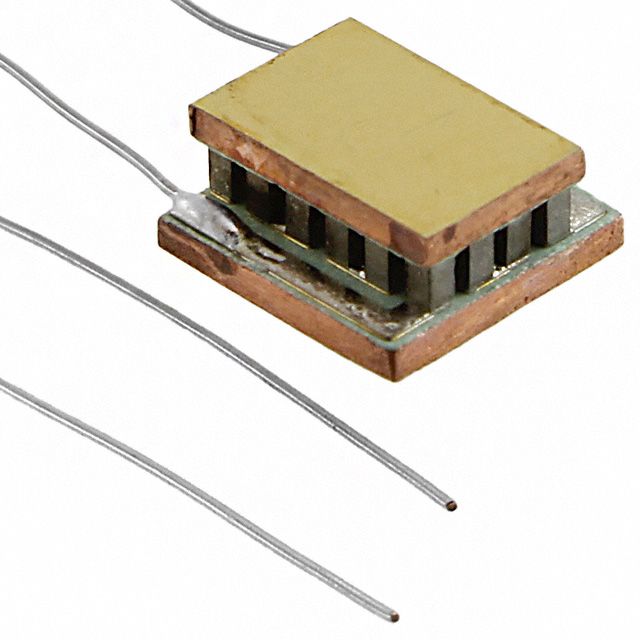

430263-506

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : 6.10mm x 6.10mm x 2.18mm
Qmax @ Th : 1.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 1.4V
Resistance : 630 mOhms
Operating Temperature : -
Features : Lead Wires

0

100 in stock
