Part Number

Manufacturer

Description

Unit Price

In Stock

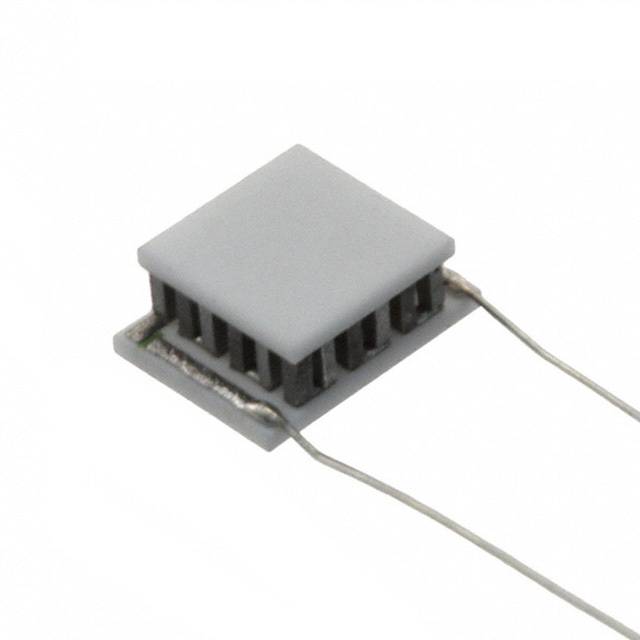

430278-508

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.16mm x 8.13mm x 2.18mm
Qmax @ Th : 4.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.7V
Resistance : 1.67 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

100 in stock

430285-506

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.63mm
Qmax @ Th : 51.6W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.23 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

55 in stock

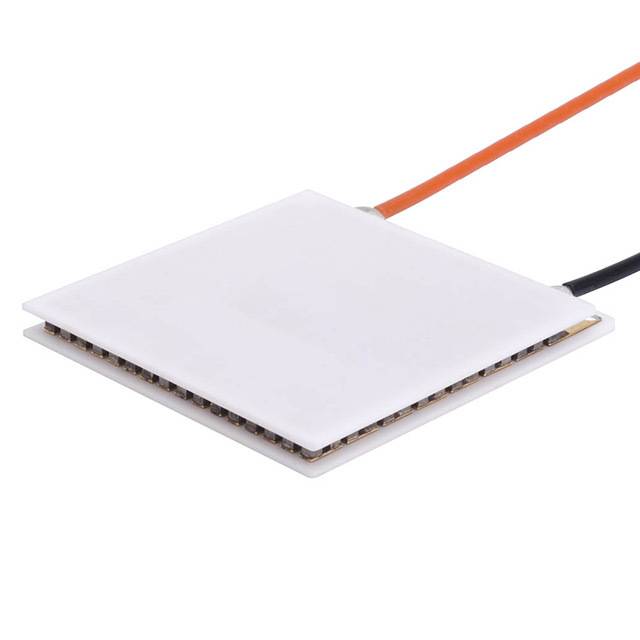

430285-512

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.63mm
Qmax @ Th : 51.6W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.23 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

20 in stock

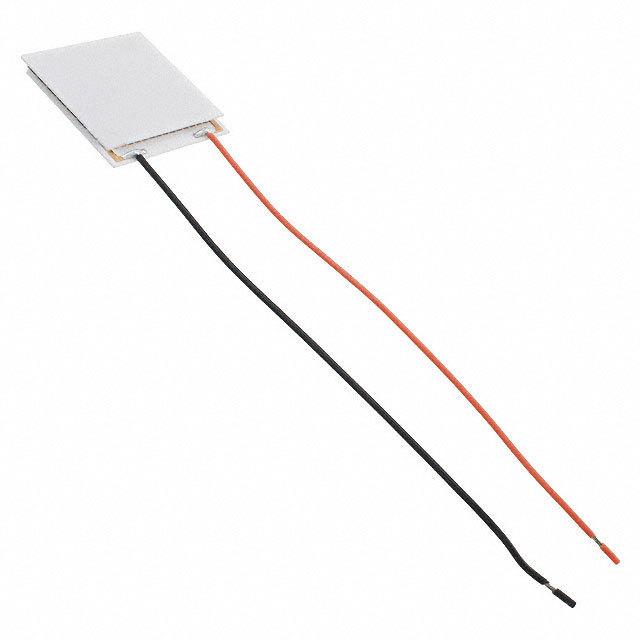

430285-513

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.90mm x 39.90mm x 3.63mm
Qmax @ Th : 51.6W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.23 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

29 in stock

430290-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 3.40mm x 3.40mm x 2.44mm
Qmax @ Th : 0.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 0.5V
Resistance : 520 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

25 in stock

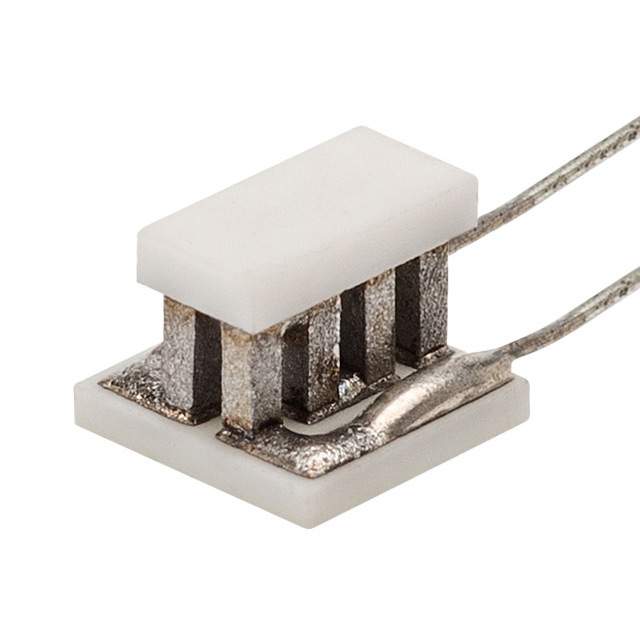

430290-503

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 3.40mm x 3.40mm x 2.79mm
Qmax @ Th : 0.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 0.5V
Resistance : 520 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

100 in stock

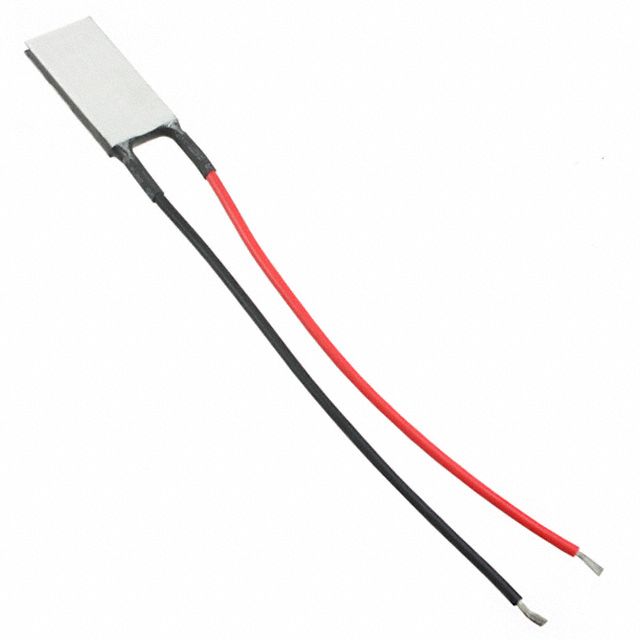

430294-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 14.86mm x 3.33mm
Qmax @ Th : 20.4W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 8.7A
Voltage - Max : 4.0V
Resistance : 430 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy

0

14 in stock

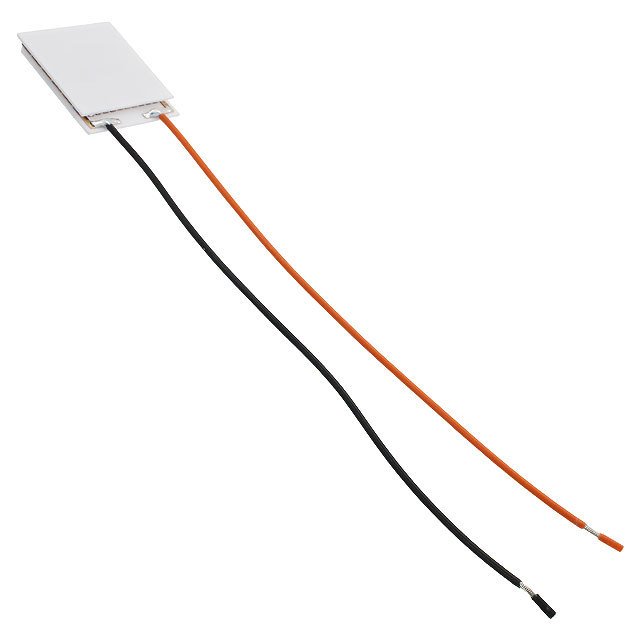

430362-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.33mm
Qmax @ Th : 40.7W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 8.1V
Resistance : 880 mOhms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

79 in stock

430362-508

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.33mm
Qmax @ Th : 40.7W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 8.1V
Resistance : 880 mOhms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

249 in stock

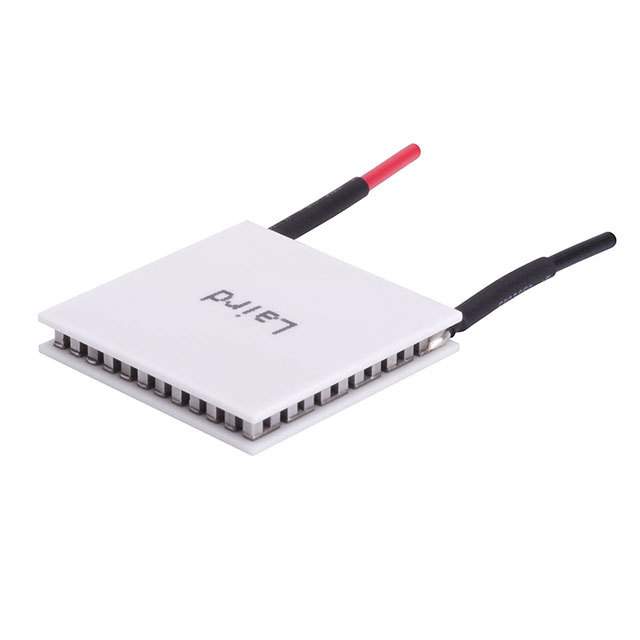

430436-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 22.60mm x 22.60mm x 3.58mm
Qmax @ Th : 14.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.0A
Voltage - Max : 8.6V
Resistance : 2.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

20 in stock

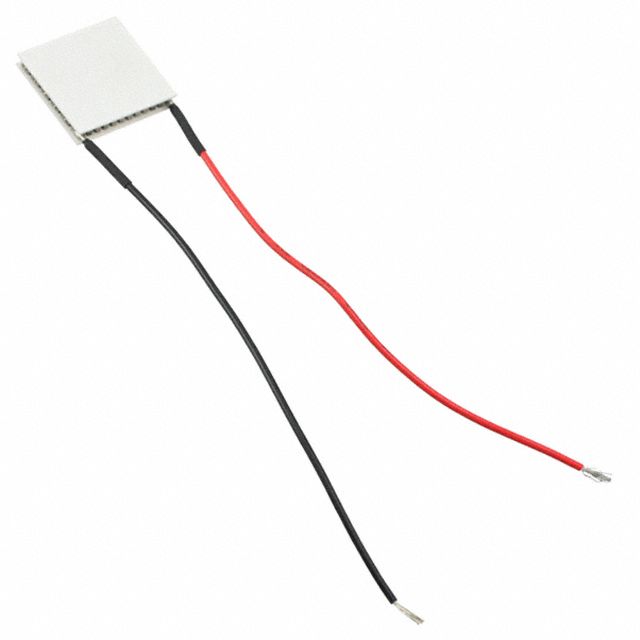

430436-504

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 22.60mm x 22.60mm x 3.58mm
Qmax @ Th : 14.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.0A
Voltage - Max : 8.6V
Resistance : 2.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

143 in stock

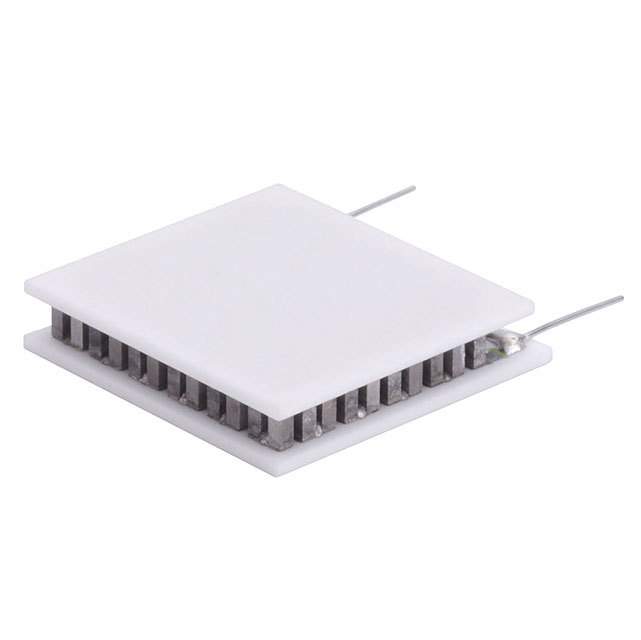

430437-503

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.20mm x 6.00mm x 1.62mm
Qmax @ Th : 4.5W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.9A
Voltage - Max : 4.0V
Resistance : 1.92 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

35 in stock
