Thermal - Thermoelectric, Peltier Modules Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

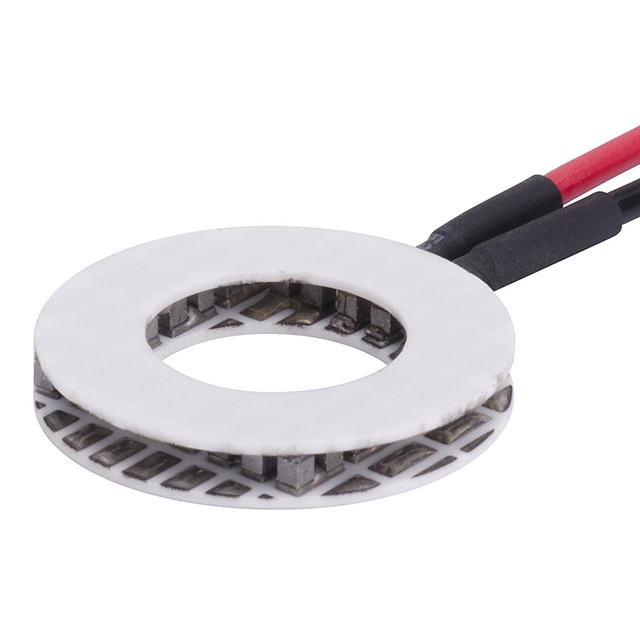

71063-505

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : RH
Part Status : Active
Outline L x W x H : 26.00mm OD x 14.00mm ID x 3.81mm H
Qmax @ Th : 5.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 1.7V
Resistance : -
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

14 in stock

71073-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -

0

20 in stock

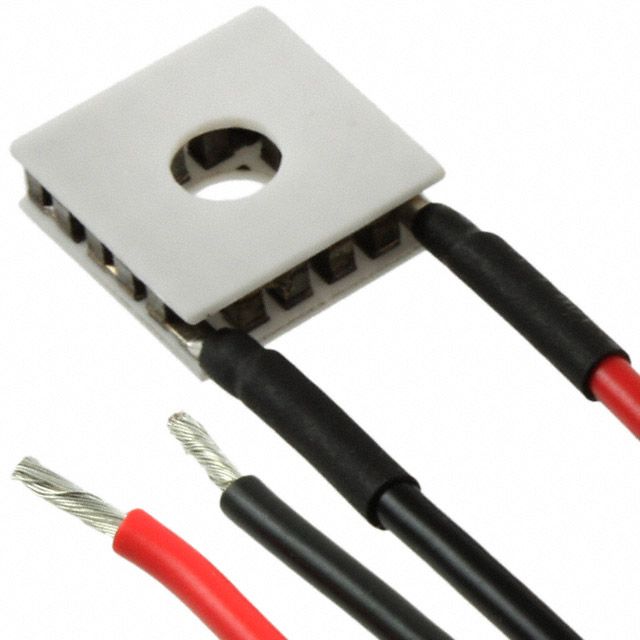

71092-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 14.00mm x 14.00mm x 3.81mm
Qmax @ Th : 6.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 1.7V
Resistance : 270 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

79 in stock

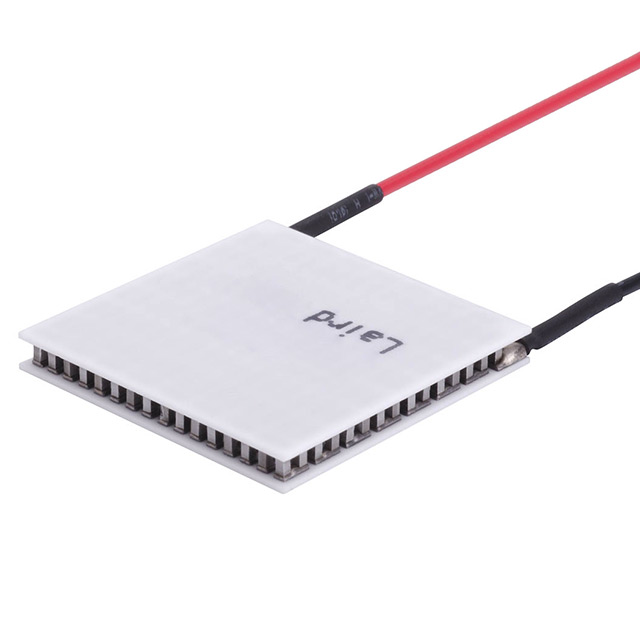

71212-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.58mm
Qmax @ Th : 20.0W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 2.3A
Voltage - Max : 14.5V
Resistance : 5.76 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

192 in stock

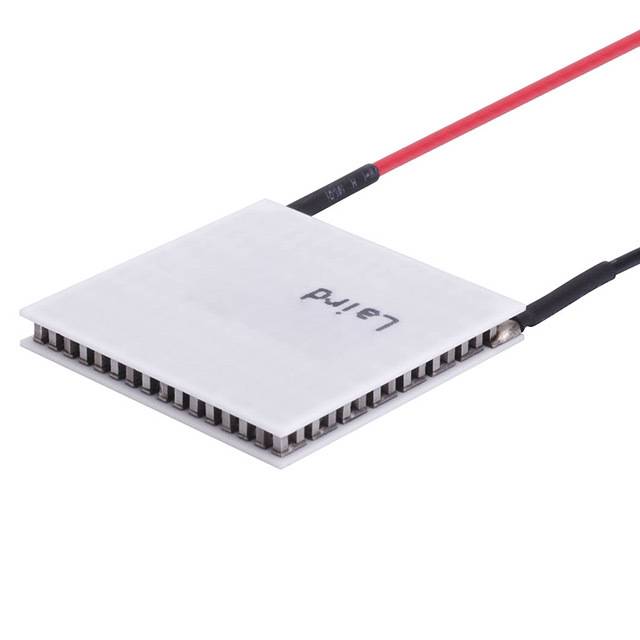

71212-503

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.58mm
Qmax @ Th : 20.0W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 2.3A
Voltage - Max : 14.5V
Resistance : 5.76 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

20 in stock

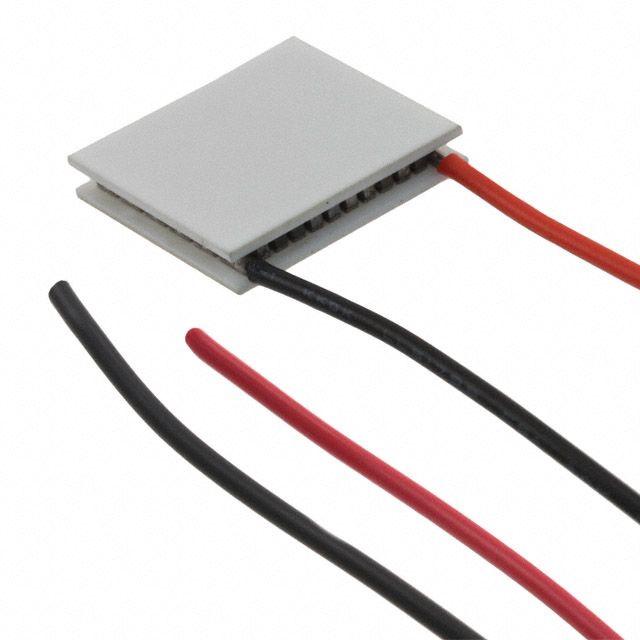

7940001-601

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 20.00mm x 20.00mm x 3.61mm
Qmax @ Th : 18.2W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 8.8V
Resistance : 1.92 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

113 in stock

7940001-606

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : *
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -

0

10 in stock

7940002-601

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.61mm
Qmax @ Th : 35.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 16.4V
Resistance : 3.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

96 in stock

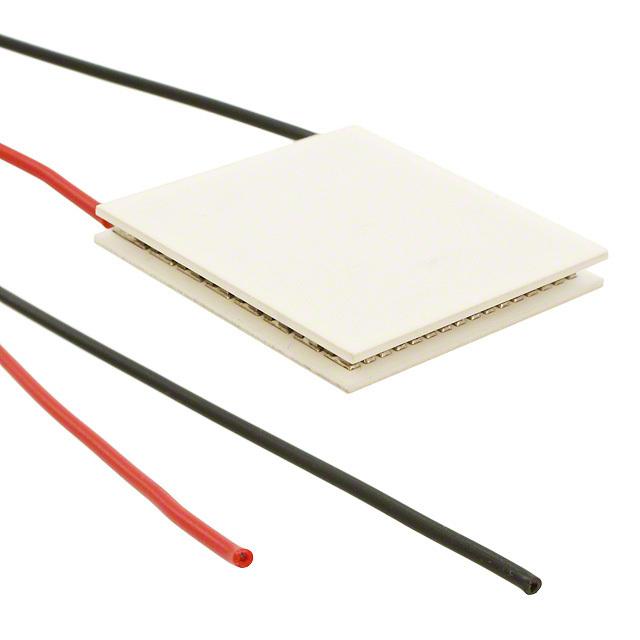

7940002-603

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.61mm
Qmax @ Th : 35.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 16.4V
Resistance : 3.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy

0

100 in stock

7940002-604

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.61mm
Qmax @ Th : 35.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 16.4V
Resistance : 3.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

100 in stock

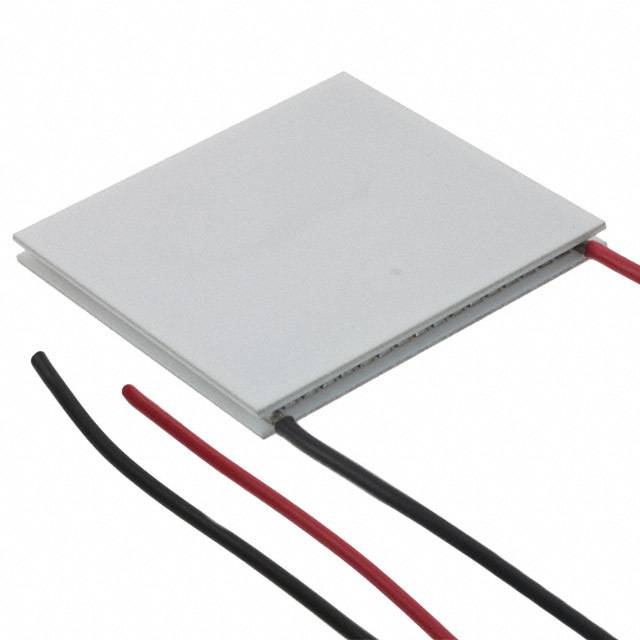

7945001-601

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.30mm
Qmax @ Th : 83.9W @ 25°C
Delta Tmax @ Th : 72°C @ 25°C
Current - Max : 6.7A
Voltage - Max : 20.0V
Resistance : 2.53 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

228 in stock

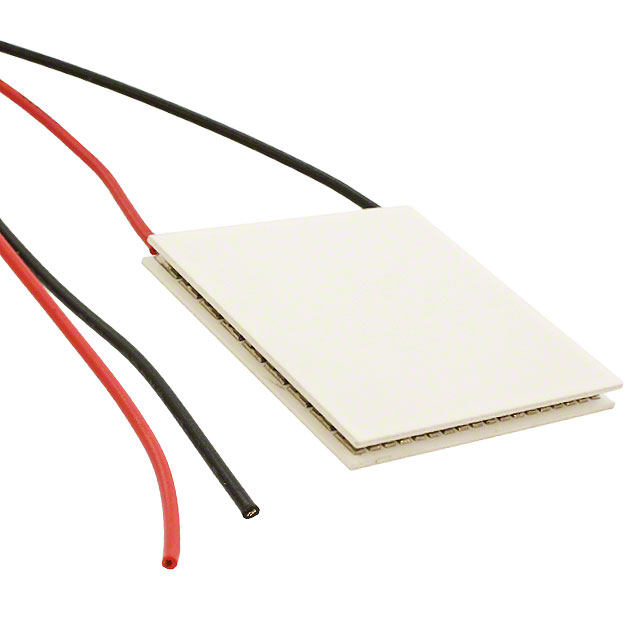

7945002-601

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.71mm
Qmax @ Th : 62.3W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 5.0A
Voltage - Max : 20.0V
Resistance : 3.33 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

156 in stock
