Category
  • Thermal - Thermoelectric, Peltier Modules
Part Number
Manufacturer
Description
Unit Price
In Stock

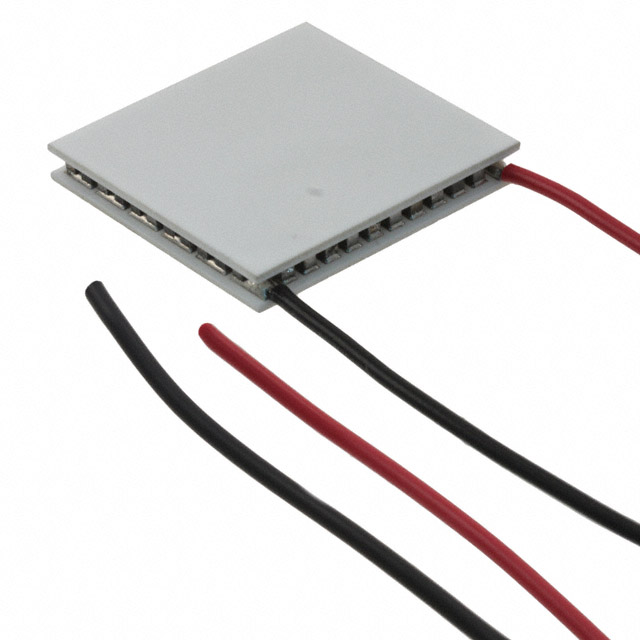

Picture of 7950001-601

7950001-601 7950001-601

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.91mm
Qmax @ Th : 31.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8.6V
Resistance : 1.23 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock
Picture of 7950001-602

7950001-602 7950001-602

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.91mm
Qmax @ Th : 31.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8.6V
Resistance : 1.23 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

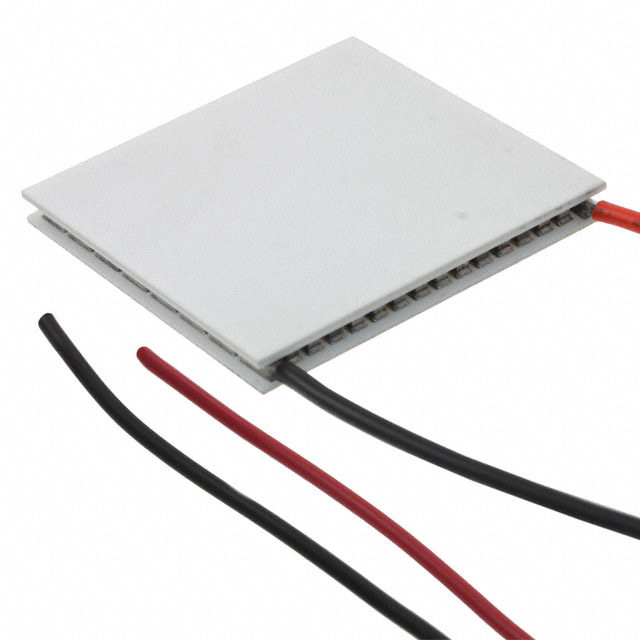

Picture of 7950002-601

7950002-601 7950002-601

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.81mm
Qmax @ Th : 77.0W @ 25°C
Delta Tmax @ Th : 72°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 15.4V
Resistance : 1.58 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
21 in stock
Picture of 7950002-602

7950002-602 7950002-602

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.81mm
Qmax @ Th : 77.0W @ 25°C
Delta Tmax @ Th : 72°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 15.4V
Resistance : 1.58 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
40 in stock
Picture of 7950002-603

7950002-603 7950002-603

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.81mm
Qmax @ Th : 77.0W @ 25°C
Delta Tmax @ Th : 72°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 15.4V
Resistance : 1.58 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
40 in stock

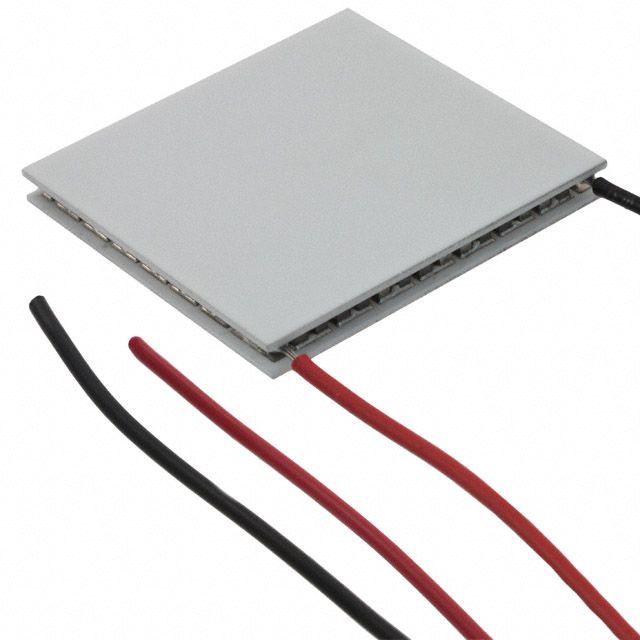

Picture of 7950003-601

7950003-601 7950003-601

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.91mm
Qmax @ Th : 55.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 15.4V
Resistance : 2.21 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
57 in stock
Picture of 7950003-605

7950003-605 7950003-605

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.91mm
Qmax @ Th : 55.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 15.4V
Resistance : 2.21 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

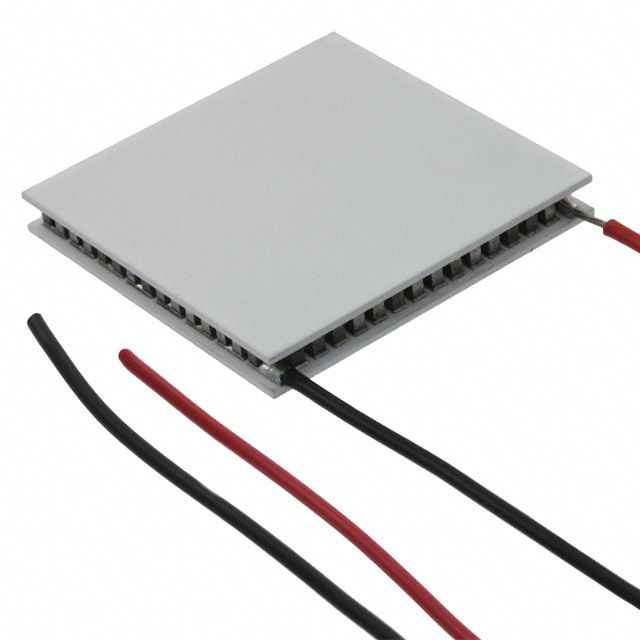

Picture of 7950004-601

7950004-601 7950004-601

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ZT
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 4.80mm
Qmax @ Th : 37.0W @ 25°C
Delta Tmax @ Th : 74°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 15.4V
Resistance : 3.40 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
419 in stock
Picture of 9320001-301

9320001-301 9320001-301

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Multistage
Part Status : Active
Outline L x W x H : 3.90mm x 3.90mm x 4.19mm
Qmax @ Th : 0.3W @ 25°C
Delta Tmax @ Th : 92°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 0.9V
Resistance : -
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
7 in stock

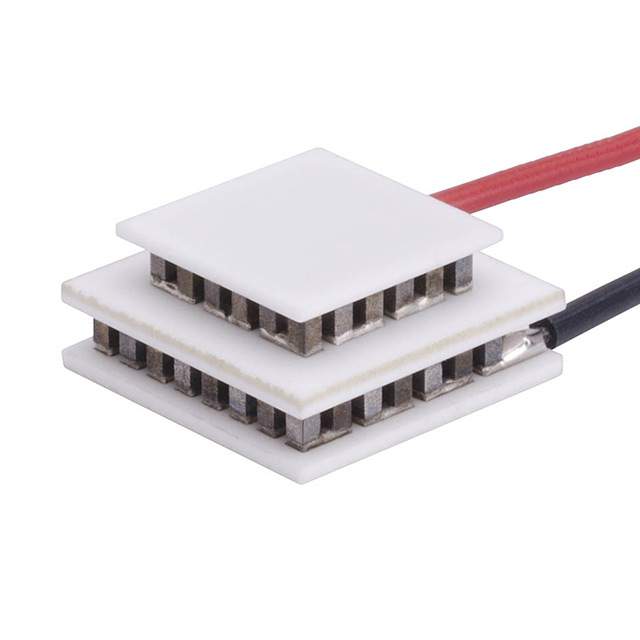

Picture of 9320002-301

9320002-301 9320002-301

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Multistage
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 4.60mm
Qmax @ Th : 0.8W @ 25°C
Delta Tmax @ Th : 92°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 2.2V
Resistance : -
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
12 in stock
Picture of 9320002-302

9320002-302 9320002-302

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Multistage
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 4.60mm
Qmax @ Th : 0.8W @ 25°C
Delta Tmax @ Th : 92°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 2.2V
Resistance : -
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock
Picture of 9320002-303

9320002-303 9320002-303

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Multistage
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 4.60mm
Qmax @ Th : 0.8W @ 25°C
Delta Tmax @ Th : 92°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 2.2V
Resistance : -
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
100 in stock
